GlammFire Electric KIT Glamm 3D Plus 500 Manual

With water tank
Hide thumbs Also See for Electric KIT Glamm 3D Plus 500:
Table of Contents

Advertisement

Quick Links

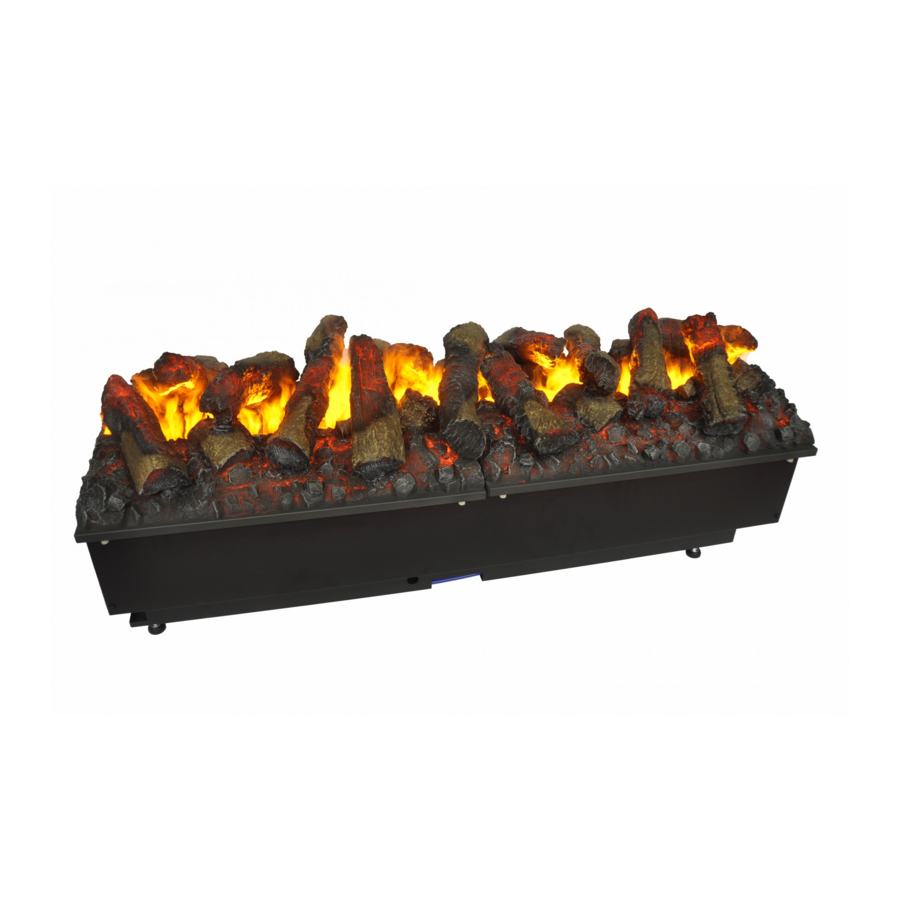

KIT Glamm 3D Plus 500 / 1000
(with water tank)
Capacity
1,3 liters / 2,6 liters (filtered water)
Autonomy
8 hours
Voltage
220/240 V
Frequency
50 Hz
Consumption
220 W / 440 W
The product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic
Compatibility (EMC) EN55014, EN60555-2 and EN60555-3 These cover the essential requirements of EEC Directives
2006/95/EC and 2004/108/EC.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Electric KIT Glamm 3D Plus 500 and is the answer not in the manual?

Questions and answers

Related Manuals for GlammFire Electric KIT Glamm 3D Plus 500

Summary of Contents for GlammFire Electric KIT Glamm 3D Plus 500

  • Page 1 KIT Glamm 3D Plus 500 / 1000 (with water tank) Capacity 1,3 liters / 2,6 liters (filtered water) Autonomy 8 hours Voltage 220/240 V Frequency 50 Hz Consumption 220 W / 440 W The product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic Compatibility (EMC) EN55014, EN60555-2 and EN60555-3 These cover the essential requirements of EEC Directives 2006/95/EC and 2004/108/EC.
  • Page 2 GlammFire. PAG./2...
  • Page 3 9—After-sales service 10—Warranty Congratulations on purchasing your GlammFire Electric appliance. This quality product has been designed with preci- sion and rigour that characterizes us to offer you pleasant and soothing moments. Please read the instructions for use carefully and effective before using the appliance.

  • Page 4: Dimensions For Installation

    Fig. 1 Model DIM ‘A’ Kit Glamm 3D Plus 500 Kit Glamm 3D Plus 1000 1017 Finishings DIM ‘B’ Decorative lacquered steel Decorative firewood Min: 190 mm Max: 260 mm Dimensions for installation Model Kit Glamm 3D Plus 500 309 mm 230 mm 513 mm Kit Glamm 3D Plus 1000...
  • Page 5 GlammFire. PAG./5...
  • Page 6 GlammFire. PAG./6 Fig. 6A Fig. 6B Fig. 6 Fig. 5 Fig. 7...
  • Page 7 GlammFire. PAG./7 Fig. 8...
  • Page 8 Fig. 10 Fig. 9 Fig. 12A Fig. 11 Fig. 12B Fig. 13...
  • Page 9 GlammFire. PAG./9...
  • Page 10 GlammFire. PAG./10...
  • Page 11 GlammFire. PAG./11 Fig 23 Fig 24 Fig 25 Fig 26 Fig 27...
  • Page 12 GlammFire. PAG./12 1—Components Decorative firewood Tank Sump Model base...

  • Page 13: Important Safety Advice

    GlammFire. PAG./13 2—Important safety advice Please read this information guide carefully to be able to safely install, use and maintain your product. When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock and injury to persons, including the following: If the appliance is damaged, check with the supplier before installation and operation.

  • Page 14: General Information

    3—General information Only use filtered/decalcified water in this appliance. Unpack the appliance carefully and retain the packaging for possible future use, in the event of moving or returning the fire to your supplier. Always ensure that the appliance is sitting on a level surface. The appliance is a flame effect only.

  • Page 15: Electrical Connection

    GlammFire. PAG./15 4.4—Electrical connection Plug the fire into a 13amp/240 Volt outlet. Be sure to have access to the plug after installation to allow for disconnec- tion. Ensure that the supply cable exits at the back of the fire at the right or left hand corner to suit your supply socket location and is not trapped under the fire such that it might cause it to be damaged.

  • Page 16: Manual Controls

    Installing the Log Fuel Bed (If Supplied) The product is supplied with a ‘metal fuel bed’ fitted. If you have chosen to operate your product with a log fuel bed, remove this metal fuel bed and retain it for future use (Fig. 13). Follow the steps below to install the log fuel bed. 1.

  • Page 17: Receiver Controls

    GlammFire. PAG./17 Button Panel - Controls the functioning of the appliance (Fig 21B). • is the on/standby button. Press it to turn on and off the flame effect. Turning it on will be indicated by a single beep and the main LED lights activating. Be careful not to look directly into the LED’s as they can be very bright.

  • Page 18: Remote Control

    GlammFire. PAG./18 Kit Glamm 3D Plus 1000 • is the on/standby button. Press it to turn on and off the flame effect. • is used to mute the fire crackling sound. Press this to turn on and off the crackling sound. The volume can be adjusted on the manual controls of the appliance.

  • Page 19: Getting The Desired Flame Effect

    5.4—Getting the desired flame effect 1. Switch the appliance on by pressing the main switch to the on position and pressing the button. The flames will start after 45seconds. 2. Press the buttons to adjust the flame to your desired level. Please give the flame generator time to react to the changes you make.

  • Page 20: Air Filter

    GlammFire. PAG./20 Sump 1. Press Switch ‘A’ to the ‘OFF’ (0) position (Fig 21); 2. Gently lift off the fuel bed and place it aside; 3. Remove the water tank from its position on top of the sump; 4. Disconnect the electrical conector to the transducers, located on the right side of the sump (Fig 23);...

  • Page 21: Troubleshooting

    7—Troubleshooting Symptom Cause Corrective action Product will not operate. Electrical connection issue. Ensure product has working electrical conection. Low water reading. Refill the water tank(s) of the product. See “Low water / Refilling the water tanks” above. Product will not operate. Low water reading.

  • Page 22: General Dimensions

    If the product fails during normal and proper use (not considering the above mentioned events) within the warranty period, GlammFire will replace the product free of charge. Our warranty is offered as an addition to your statutory rights. It is applicable to the original purchaser only, non- transferable.
  • Page 23 Name and Address of the Distributor The GlammFire is always concerned with the environment. This is reflected when the projection of their products and their packaging. Focusing on the reduction of energy consumption, raw materials, natural resources and quantity of waste generated, GlammFire follows the policy of the 4R's (Reduce, Reuse, Recycle and Recover).
  • Page 24 Recuperadores Pachinha Lda. Zona Industrial da Lagoa, Lote G1 4950-850 CORTES - MONÇÃO PORTUGAL Tel(+351) 251 654 800 Fax(+351) 251 654 801 info@glammfire.com www.glammfire.com PT07711-G...

This manual is also suitable for:

Electric kit glamm 3d plus 1000Kit glamm 3d plus 500Kit glamm 3d plus 1000
