INSTRUCTIONS MANUAL
GlammBox Crea7ionEVO PLUS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GlammBox Crea7ionEVO PLUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GlammFire GlammBox Crea7ionEVO PLUS

Summary of Contents for GlammFire GlammBox Crea7ionEVO PLUS

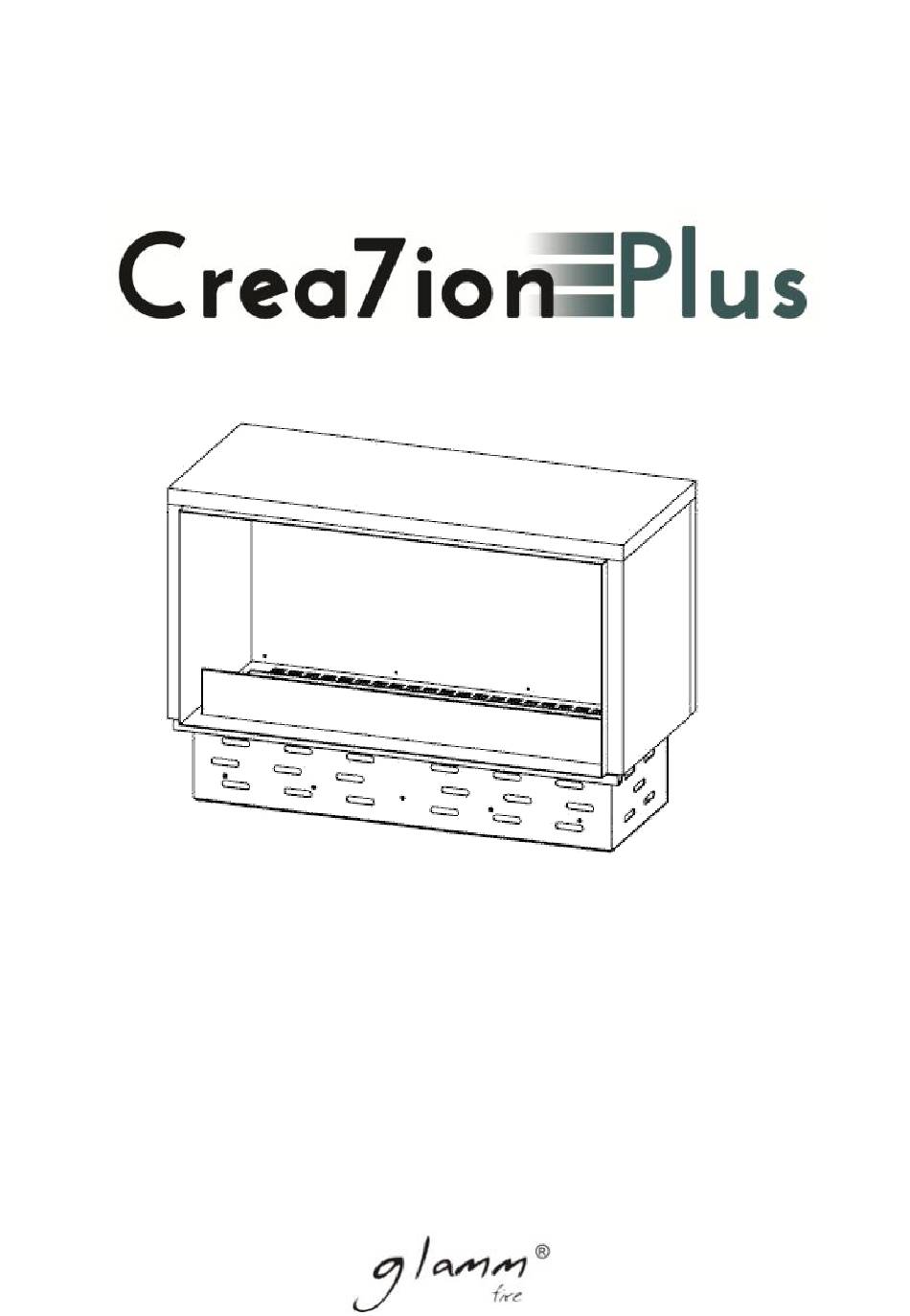

  • Page 1 INSTRUCTIONS MANUAL GlammBox Crea7ionEVO PLUS...
  • Page 2 GlammFire. PAG./2...
  • Page 3 GlammFire. PAG./3 INDEX 1—Material Supplied 2—Components 3—Safety Instructions 3.1—Ventilation 3.2—Cautions 4—Fuel 4.1—Bioethanol – The adequate fuel 5—Installation 5.1—Flammable material 5.2—Dimensions 5.3—Installation Procedures 5.4—Installation of optional Black Mirror 5.4.1—Material Supplied 5.4.2—Optional Black Mirror Installation Procedures 5.5—Levelling of combustion fire line 6—Maintenance 7—Overall Dimensions...

  • Page 4: Material Supplied

    All presented cautions and warnings must be respected. Keep this manual for future reference. This Instructions Manual is subject to change without notice. 1—Material Supplied 1. GlammBox Crea7ionEVO PLUS; 2. Remote control; 3. Manual Bioethanol Pump; 4. 2x Hex Key (Nº4/Nº2,5);...

  • Page 5: Safety Instructions

    3.2—Cautions: GlammFire is concerned about your safety, therefore we have taken all necessary consideration for conception, fabri- cation, assembly and transport, to ensure perfect functioning. We therefore ask you to thoroughly follow our instructions for assembly, use and maintenance.
  • Page 6  Do not use water to extinguish the fire;  Do not use chemical products to clean the fireplace, as they may damage the materials. When in doubt contact an authorized dealer;  When the burner is turned off, there may be small residual flames remaining at the point of fuel inlet for approxi- mately 2 to 10 minutes.
  • Page 7 4—Fuel 4.1—Bioethanol – The adequate fuel  Glammfire fireplaces are designed to work with quality bioethanol, fully tested. Only this fuel ensures clean and efficient combustion. Fuel with less or inappropriate quality may lead to:  Higher probability of malfunction;...

  • Page 8: Installation

    5.2—Dimensions:  The surface which you want to install the combustion fire must be as level as possible; Make sure there is always a good ventilation around the GlammBox Crea7ionEVO PLUS, when it is built-in;   In order to ensure a safety margin with respect to the ground, it is recommended a minimum distance of 400 mm between the floor and the top of the combustion fire line;...

  • Page 9: Ventilation Area

    GlammFire. PAG./9 Necessary ventilation: GlammBox Crea7ionEVO Ventilation area Plus 75cm 800DF 75cm 1000 115cm 1000DF 115cm 1200 150cm 1200DF 150cm 1600 225cm 1600DF 225cm 2000 300cm 2000DF 300cm Ventilation NOTE: CHECK "INSTALLATION" CHAPTER IN THE PART RELATED TO VENTILATION IN THE INSTRUCTIONS MANUAL OF...
  • Page 10 GlammFire. PAG./10 5.3—Installation Procedures Very Important: Care should be taken when unpacking your fireplace and handling the glass, which should be installed last. Insert the fireplace into the hole previously made (Figure 1). After placing the fireplace in the structure intended for your installation, ensure that the fireplace is perfectly level and balanced.
  • Page 11 GlammFire. PAG./11 Then apply the plasterboard (Figure 2). Figure 2—Placement of the plaster board...
  • Page 12 GlammFire. PAG./12 Finally install the protective glass by inserting it into the intended hole (Figure 3, Figure 4). Figure 3—Protection glass Installation Figure 4—Protection glass Installed...
  • Page 13 GlammFire. PAG./13 5.4—Installation of optional Black Mirror 5.4.1—Material Supplied 1. Screws; 2. Protective black mirror tape; 3. Hex Key Nº2.5 4. Mounting bracket; 5. Black Mirror. 5.4.2—Optional Black Mirror Installation Procedures Inside the fireplace there are the holes (D) required for the operation (Figure 5).
  • Page 14 GlammFire. PAG./14 Screw the mounting brackets using the screws supplied and do not forget to put the protective black mirror tapes (E) . (Figure6) Figure 6—Brackets installation...
  • Page 15 GlammFire. PAG./15 Place the black mirror, inserting it into the upper mounting bracket. When docked touch it inside the fireplace (F) (Figure 7) Figure 7—Black mirror placement...
  • Page 16 GlammFire. PAG./16 Let the black mirror slide slowly, without dropping it, to fit into the lower mounting bracket. (G) (Figure 8) Make all procedures very carefully so as not to damage the black mirror. Figure 8—Protection glass installation...
  • Page 17 GlammFire. PAG./17 The Crea7ionEVO PLUS is supplied with two metallic handles which facilitate handling during installation. To proceed with the installation of handles, disconnect the system from the power supply sources, open the doors and fit the handles in the indicated areas. See Figure 9 and 10.
  • Page 18 GlammFire. PAG./18 5.5—Levelling of combustion fire line If after having the burner working for more than 20 minutes in order to stabilize the flame, it still does not fill the combustion line as a whole, it must be leveled. When installing the Crea7ionEVO PLUS, level the combustion fire line, using the supplied Hex Key Nº4 (J) and the screws (H).

  • Page 19: Maintenance

    6—Maintenance  The combustion fire line should be cleaned regularly using a damp cloth with bioethanol;  The most persistent marks can be removed using a soft cloth moistened in bioethanol;  Never use chemicals not suitable for cleaning stainless steel; ...

  • Page 20: General Dimensions

    GlammFire. PAG./20 7—General Dimensions...

  • Page 21: Specifications

    8—Specifications GlammBox Crea7ionE- (mm) (mm) (mm) (mm) (mm) VO Plus 800DF 1000 1064 1000DF 1200 1194 1264 1200DF 1600 1594 1666 6,75 1600DF 2000 1994 2066 5:30 2000DF...

  • Page 22: After Sales Service

    In case of doubt or any anomaly, do not use the fireplace and please contact a specialized technician. 10– Warranty In order to activate your GlammFire 2 year warranty, please register your new GlammFire product at www.glammfire.com/en/about/warranty complete your warranty card and return it to us, along with a copy of the proof of purchase, at our address within 30 days of purchase.
  • Page 23 Name and Address of the Distributor GlammFire is always concerned with the environment. This is reflected by the projection of their products and their packaging. Focusing on the reduction of energy consumption, raw materials, natural resources and quantity of waste generated, GlammFire follows the policy of the 4R's (Reduce, Reuse, Recycle and Recover).
  • Page 24 Recuperadores Pachinha Lda. Zona Industrial da Lagoa, Lote G1 4950-850 CORTES - MONÇÃO PORTUGAL Tel(+351) 251 654 800 Fax(+351) 251 654 801 info@glammfire.com www.glammfire.com PT07693-E...
