Materials// Rusted Corten
Steel
Options//
Finishings// Lacquered Steel
Accessories// Black Glass
Mirror
GlammFire
Recuperadores Pachinha Lda.
Zona Industrial da Lagoa, Lote G1
4950-850 CORTES - MONÇÃO
PORTUGAL
Tel(+351) 251 654 800
Fax(+351) 251 654 801
info@glammfire.com
www.glammfire.com
GlammFire

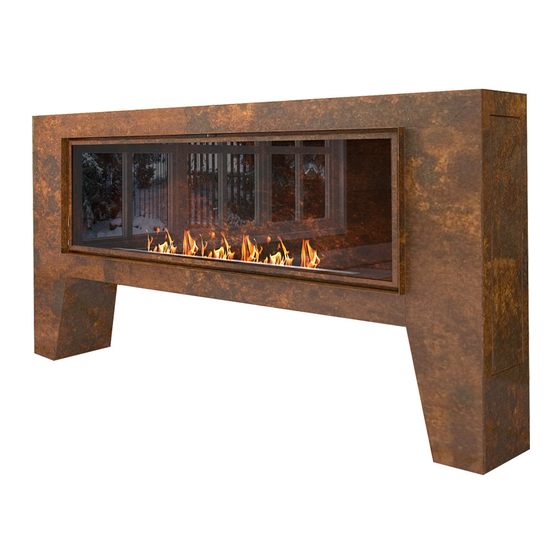

Fogly

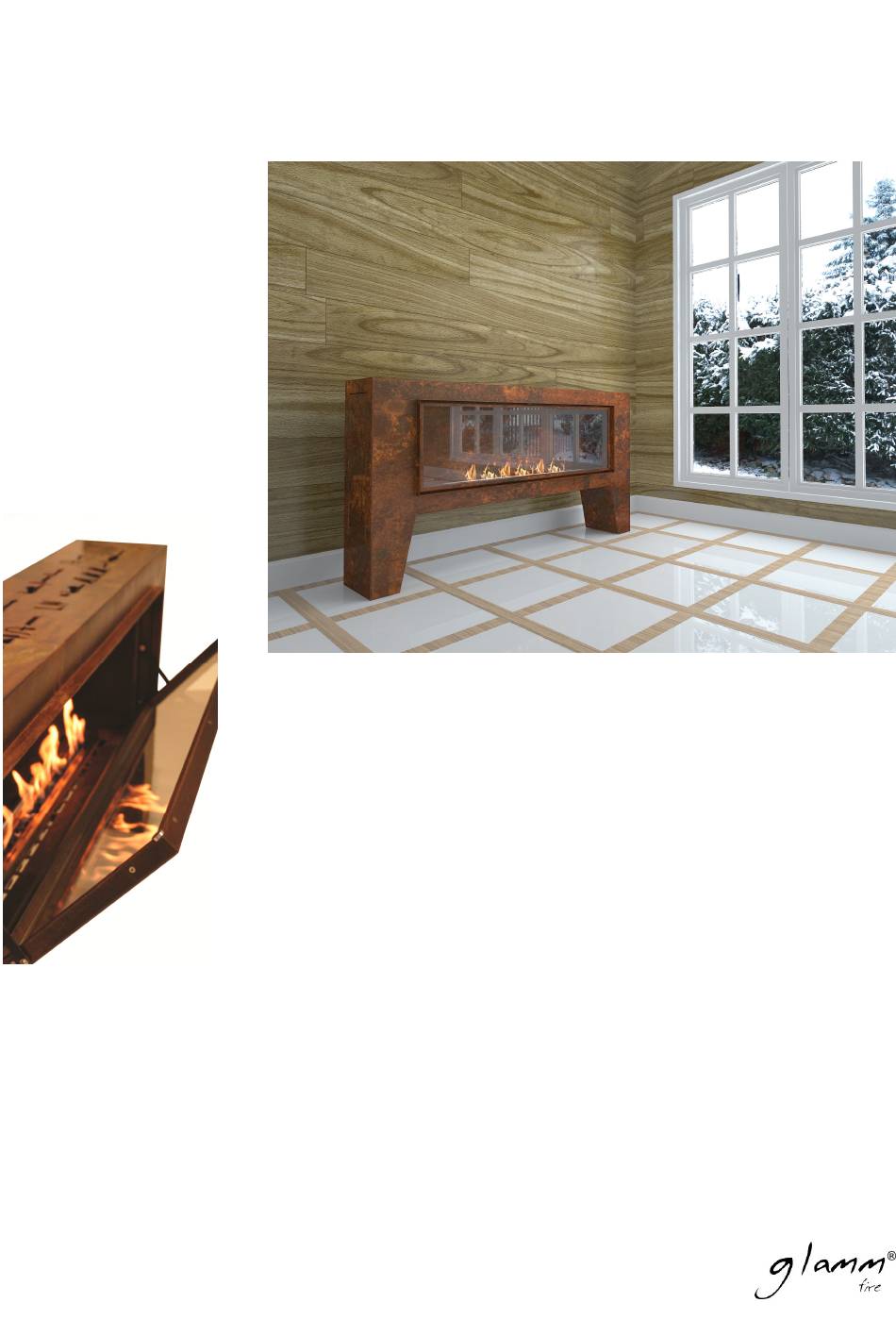

Crea7ion By GlammFire—The line of perfection
It is designed to emphasize the unique and continuous expressions of the flame.
Crea7ion is an electronic system with an innovative technology, which stand out its
simple design, practical functionality and low consumption. Its structure and solidity
ensure a perfectly safe and linear flame, while its ecological character keeps a
respecting commitment to the environment, contributing to a pleasant comfort and
well-being.
Crea7ion can be integrated into virtually any environment or directly in different types
of structures (eg.: furniture or masonry). A system totally safe for projects led by
architects, decorators and interior designers.
Control the pleasure of your fire.
Dimensions// 1500 w x 800 h x 275 d mm
Weight// 84 kg
Protection// high temperature resistant glass
Packing Dimensions// 530 h x 955 w x 1956 d mm
Total Weight// 160 kg
Tank// 3 litres (liquid bioethanol)
Combustion fire line// 800 mm
Power// 4,5 kW
Autonomy// 3 hours
/CO detector included
Advertisement
Related Manuals for GlammFire Fogly
Summary of Contents for GlammFire Fogly
- Page 1 Finishings// Lacquered Steel Accessories// Black Glass Mirror Crea7ion By GlammFire—The line of perfection It is designed to emphasize the unique and continuous expressions of the flame. Crea7ion is an electronic system with an innovative technology, which stand out its simple design, practical functionality and low consumption. Its structure and solidity...
- Page 2 GlammFire Fogly GlammFire Recuperadores Pachinha Lda. Zona Industrial da Lagoa, Lote G1 4950-850 CORTES - MONÇÃO PORTUGAL Tel(+351) 251 654 800 Fax(+351) 251 654 801 info@glammfire.com www.glammfire.com...
-
Page 3: Material Supplied
GlammFire Fogly Material Supplied 1. Fireplace; 2. Mug; 3. Funnel; 4. Lighter; 5. Hex Key; 6. Key; 7. CO Detector; Components 1. Tank; 2. Access door to the tank; 3. Combustion fire line; 4. Fireline front door; 5. Control valve. - Page 4 GlammFire Fogly Installation In order to ensure a safety margin respect to the ground it is recommended to keep a minimum distance of 400 mm between the floor and the top of the combustion fire ; The surface which you want to install the combustion fire must be as level as possi- ble;...
- Page 5 GlammFire Fogly Flammable materials Do not place flammable materials near the fireplace, within 1m; • Racks or shelves should be distant: • From fireplaces: 500 mm; • From combustion fire lines: 1000 mm; • Materials: stone/metal/ceramics A - 150 mm;...
- Page 6 GlammFire Fogly Installation Procedures Very Important: We recommend extreme caution when unpacking your fireplace. Place the fireplace in the desired location and check the stability and levelling. Make sure your fireplace is level. Insert the supplied batteries into the remote control and electronic controller located on the left side of the fireplace (A).
- Page 7 GlammFire Fogly Installation of optional Black Mirror Material Supplied 1. Screws 2. Protective black mirror tape 3. Mounting bracket; 4. Black Mirror; Optional Black Mirror Installation Procedures Open the Front Door to have access to the Fireline (A), find the holes for the screws in the interior (B) in order to proceed the installation.
- Page 8 GlammFire Fogly Screw the mounting brackets using the screws supplied and do not forget to put the protective black mirror tapes (C). GlammFire Recuperadores Pachinha Lda. Zona Industrial da Lagoa, Lote G1 4950-850 CORTES - MONÇÃO PORTUGAL Tel(+351) 251 654 800 Fax(+351) 251 654 801 info@glammfire.com...
- Page 9 GlammFire Fogly Place the black mirror, inserting it into the upper mounting bracket. When docked touch it inside the fireplace (D). Let the black mirror slide slowly, without dropping it, to fit into the lower mounting bracket. (E) Make all procedures very carefully so as not to damage the black mirror.
- Page 10 GlammFire Fogly Close the fireline front door using the Key included on the Kit (F). The installation of your fireplace is complete. Close GlammFire Recuperadores Pachinha Lda. Zona Industrial da Lagoa, Lote G1 4950-850 CORTES - MONÇÃO PORTUGAL Tel(+351) 251 654 800 Fax(+351) 251 654 801 info@glammfire.com...
- Page 11 GlammFire Fogly Operation Instructions Access to the tank through the access door on the right • side of the fireplace; Access to the deposit of bioethanol through the access • door on the right side of the fireplace; With the help of the funnel and mug provided fill the desired amount of fuel (maximum: 3 litres).
- Page 12 GlammFire Fogly Levelling of combustion fire line If the flame does not occupy the entire opening will be necessary to level the com- bustion fire line. Lack of flame on the left: Turn the screw clockwise to clockwise. Parallel turn the screw counter clockwise.
- Page 13 GlammFire Fogly Overall Dimensions GlammFire Recuperadores Pachinha Lda. Zona Industrial da Lagoa, Lote G1 4950-850 CORTES - MONÇÃO PORTUGAL Tel(+351) 251 654 800 Fax(+351) 251 654 801 info@glammfire.com www.glammfire.com PT05333-A...
