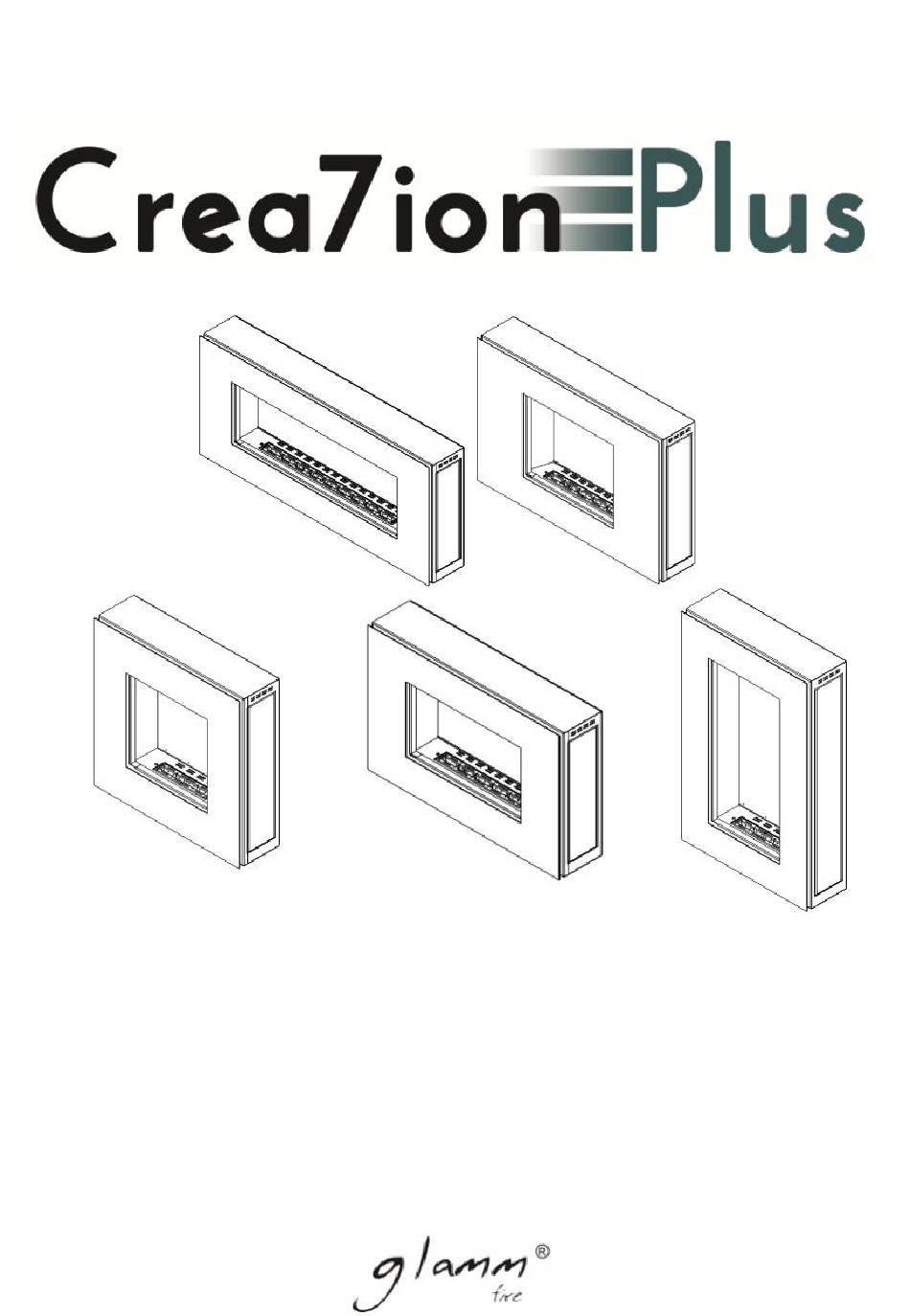

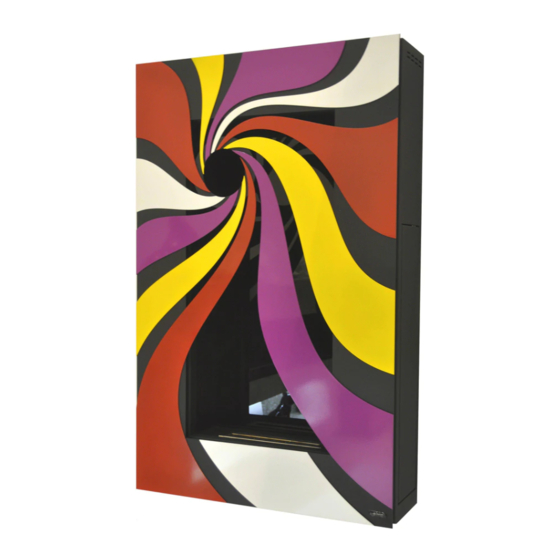

- Page 1 INSTRUCTIONS MANUAL Crea7ionEVO PLUS WALL MOUNTED FIREPLACES...
- Page 2 GlammFire. PAG./2...
-
Page 3: Table Of Contents
GlammFire. PAG./3 INDEX 1—Material Supplied 2—Components 3—Safety Instructions 3.1—Ventilation 3.2—Cautions 4—Fuel 4.1—Bioethanol – The adequate fuel 5—Installation 5.1—Dimensions 5.2—Flammable material 5.3—Tools Required 5.4—Installation Procedures 5.5—Installation of optional Black Mirror 5.5.1—Material Supplied 5.5.2—Optional Black Mirror Installation Procedures 5.6—Levelling of combustion fire line 5.7—Home Automation (Option) -
Page 4: 1-Material Supplied
GlammFire. PAG./4 Please read this Instructions Manual carefully before using your decorative fireplace. It contains important operating and maintenance instructions, that should be followed correctly in order to ensure a durable use of your decorative fireplace. All presented cautions and warnings must be respected. -
Page 5: 3-Safety Instructions
3.2—Cautions: Glammfire is concerned about your safety, therefore we have taken all necessary consideration for conception, fabri- cation, assembly and transport, to ensure perfect functioning. We therefore ask you to thoroughly follow our instructions for assembly, use and maintenance. - Page 6 GlammFire. PAG./6 Do not use water to extinguish the fire; Do not use chemical products to clean the fireplace, as they may damage the materials. When in doubt contact an authorized dealer; After flame cutting may remain small residual flames at the point of fuel inlet for approximately 2 to 10 minutes. At ...
-
Page 7: 4-Fuel
PAG./7 4—Fuel 4.1—Bioethanol – The adequate fuel Glammfire fireplaces are designed to work with quality bioethanol, fully tested. Only this fuel ensures clean and efficient combustion. Fuel with less or inappropriate quality may lead to: Higher probability of malfunction;... -
Page 8: 5-Installation
GlammFire. PAG./8 5—Installation In order to ensure a safety margin respect the recommended minimum distance of 400 mm between the floor and the top of the combustion fire ; The surface which you want to install the combustion fire must be as level as possible;... -
Page 9: Flammable Material
GlammFire. PAG./9 5.2—Flammable materials Do not place flammable materials near the fireplace, within 1 meter; Bookcases or shelves should be spaced 1 meter away of the combustion line. ... -
Page 10: Tools Required
GlammFire. PAG./10 5.3—Tools Required Drill; Wrench; Tape measure; Pencil; Spirit Level; Phillips Screwdrivers. 5.4—Installation Procedures Very Important: We recommend extreme caution when unpacking your fireplace. The decorative frame is seated in the wall fastening plate, but it is loosened. Separate the decorative frame to start the installation. - Page 11 GlammFire. PAG./11 Place the fireplace in the desired location and mark the six holes required on the wall to install it, using de supplied template . Make sure your fireplace is level. Choose the type of fastener suitable for the wall material and proceed to the drilling.
-
Page 12: Installation Of Optional Black Mirror
GlammFire. PAG./12 5.5—Installation of optional Black Mirror 5.5.1—Material Supplied 1. Screws; 2. Protective black mirror tape; 3. Mounting bracket; 4. Black Mirror. 5.5.2—Optional Black Mirror Installation Procedures Remove the decorative frame of the fireplace. Inside the fireplace there are the specific holes (A) to make this opera-... - Page 13 GlammFire. PAG./13 Screw the mounting brackets using the screws supplied and do not forget to put the protective black mirror tapes (B). Place the black mirror, inserting it into the upper mounting bracket. When docked touch it inside the fireplace (C).
- Page 14 GlammFire. PAG./14 Let the black mirror slide slowly, without dropping it, to fit into the lower mounting bracket. (D) Make all procedures very carefully so as not to damage the black mirror.
- Page 15 GlammFire. PAG./15 Finally proceed to the setting of the decorative frame (E). The installation of the fireplace is complete.
-
Page 16: Levelling Of Combustion Fire Line
GlammFire. PAG./16 5.6 — Levelling of combustion fire line When installing the Crea7ionEVO PLUS, level the combustion fire line, using the supplied Hex Key Nº4 (D) and the screws (F). If the flame does not occupy the entire opening it will be necessary to level the combustion fire line. -
Page 17: Home Automation (Option)
GlammFire. PAG./17 5.7 – Home Automation (Option) The Crea7ionEVO PLUS is equipped with a plug intended for the home automation connection (Figure 1) which must be carried out by a qualified technician. This option allows the burner to be switched on or off through the system installed in the room. -
Page 18: 6-Operation
Figure 3 — Identification of connectors Electric wire insertion holes Note: This functionality must be used with responsibility and supervision. GlammFire is not responsible for incidents inherent to the connection to home automation. 6—Operation 6.1—Functions—Buttons I - Turn on O - Turn off... - Page 19 GlammFire. PAG./19 Display Glamm Fire I - Turn on O - Turn off I + O - (two bips) from Min. to Max. or vice versa Before connecting the Crea7ionEVO PLUS system, you should select the power supply source—battery or electric current.
-
Page 20: Language Selection
GlammFire. PAG./20 - If you want to use the system connected to the battery, you must select the "II" option. - If you want to use the system connected to the electric current, you must select the "I" option. If you use the Crea7ionEVO PLUS system connected to the electric current, do not forget to connect the AC adapter we provide you, along with your Crea7ionEVO PLUS, in the proper input plug (I), situated on the left side of the system (Figure 5). -
Page 21: Remote Control Synchronization
GlammFire. PAG./21 6.3—Remote Control synchronization The synchronization of the remote control can only be achieved with the “ON/OFF/ ON” button in the "OFF" position. Pressing the ON button ("I") on the display, choose the power supply on the "ON/ OFF/ ON" button. -
Page 22: Out Of Fuel
GlammFire. PAG./22 6.5—Out of fuel When connecting the Crea7ionEVO PLUS, and it does not have bioethanol in the tank, the fol- lowing information will appear on the display: “Start” “Bt □” - Battery charge status “Et □” - Bioethanol level Next, click on the "ON"... -
Page 23: Turn Off
GlammFire. PAG./23 6.6—Turn off The Crea7ionEVO PLUS can be turned off at any time. To do it, click on the "OFF" button on the display / remote control. Then, the following information appears on the display: “Ignition Stopped” “Burner is Hot”... -
Page 24: Battery Charging
GlammFire. PAG./24 6.8—Battery charging When charging the battery, you should follow the following process: • Disconnect the system battery connector, located next to the “ON/OFF/ON” button (Figure • Remove the battery. • Connect the battery connector to the charger, as shown in Figure 8. -
Page 25: Leak Detection System
GlammFire. PAG./25 7.1—Leak detection system The Crea7ionEVO PLUS has two leak detection sensors which are located on the combustion fire line safety box and system safety box. Thus, if there is some kind of leak or fuel/ liquid spill on top of the Crea7ionEVO PLUS, the sys- tem turns off, visualizing immediately the error message "Ethanol Leaking"... -
Page 26: Smothering The Combustion Fire Line
GlammFire. PAG./26 7.4—Smothering the combustion fire line The system gives the error message "Error Fire Out" and turns off immediately if it is smoth- ered by something. 7.5—Tank filter The Crea7ionEVO PLUS tank has a filter (Figure 8) that should be cleaned at each month of use. -
Page 27: 8-Display Messages
GlammFire. PAG./27 8—Display messages All error messages that may appear on the display are listed in the table below. INFORMATION CAUSE PROCEDURE DISPLAYED Burner Is The combustion fire line is at a Wait about 5 – 10 minutes until temperature above the safety the combustion fire line has value. - Page 28 GlammFire. PAG./28 INFORMATION CAUSE PROCEDURE DISPLAYED Tank The bioethanol is below the mini- Filling the tank if you want to turn Empty mum level. the system on again. Otherwise, turn it off using the ON/OFF/ON button in order to save energy.
- Page 29 GlammFire. PAG./29 INFORMATION CAUSE PROCEDURE DISPLAYED Time Exc Lack of bioethanol in the combus- Tubing clogged with anomaly. Sens Max tion line; Fault in the ethanol supply pump. Maximum level probe with anom- Contact a specialist. aly; Ign. Time Exceeded the time of ignition.
- Page 30 GlammFire. PAG./30 INFORMATION CAUSE PROCEDURE DISPLAYED Error Sens Maximum Short circuit of the low level Ensure that the probe is against probe. the combustion fire line. Please always contact a qualified technician. Err Sens Leakage Short circuit of the leakage probe. Ensure that the probe is against the combustion fire line.
- Page 31 GlammFire. PAG./31 INFORMATION CAUSE PROCEDURE DISPLAYED High Voltage! Battery or charger with high volt- Check if the battery or charger are age. suitable for the Crea7ionEVO PLUS. Fire Stopped The ignition process has been in- The system returns to standby terrupted by the user.
-
Page 32: 9-Maintenance
GlammFire. PAG./32 9—Maintenance The combustion fire line should be cleaned regularly using a damp cloth with bioethanol; The more persistent marks can be removed using a soft cloth moistened in bioethanol; Never use chemicals not suitable for cleaning stainless steel;... -
Page 33: 11-Specifications
GlammFire. PAG./33 11—Specifications Power Auto- Tank (l) Weight Recom- Model (mm) (mm) (mm) (kw) nomy (gal) (Kg) mended (inches) (inches) (inches) (Pounds) min. area 700mm 1100 223mm 1,4 kW 6:30 h 78 kg 9 m2 Tango EVO Plus 8,78’’ 172lb 27,56’’... -
Page 34: 12-After-Sales Service
In case of doubt or any anomaly, do not use the fireplace and please contact a specialized technician. 13– Warranty In order to activate your GlammFire 2 year warranty, please register your new GlammFire product at www.glammfire.com/en/about/warranty complete your warranty card and return it to us, along with a copy of the proof of purchase, at our address within 30 days of purchase. - Page 35 Name and Address of the Distributor GlammFire is always concerned with the environment. This is reflected by the projection of their products and their packaging. Focusing on the reduction of energy consumption, raw materials, natural resources and quantity of waste generated, GlammFire follows the policy of the 4R's (Reduce, Reuse, Recycle and Recover).
- Page 36 Recuperadores Pachinha Lda. Zona Industrial da Lagoa, Lote G1 4950-850 CORTES - MONÇÃO PORTUGAL Tel(+351) 251 654 800 Fax(+351) 251 654 801 info@glammfire.com www.glammfire.com PT08258-B...
