The product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic
Compatibility (EMC) EN55014, EN60555-2 and EN60555-3 These cover the essential requirements of EEC Directives
2006/95/EC and 2004/108/EC.

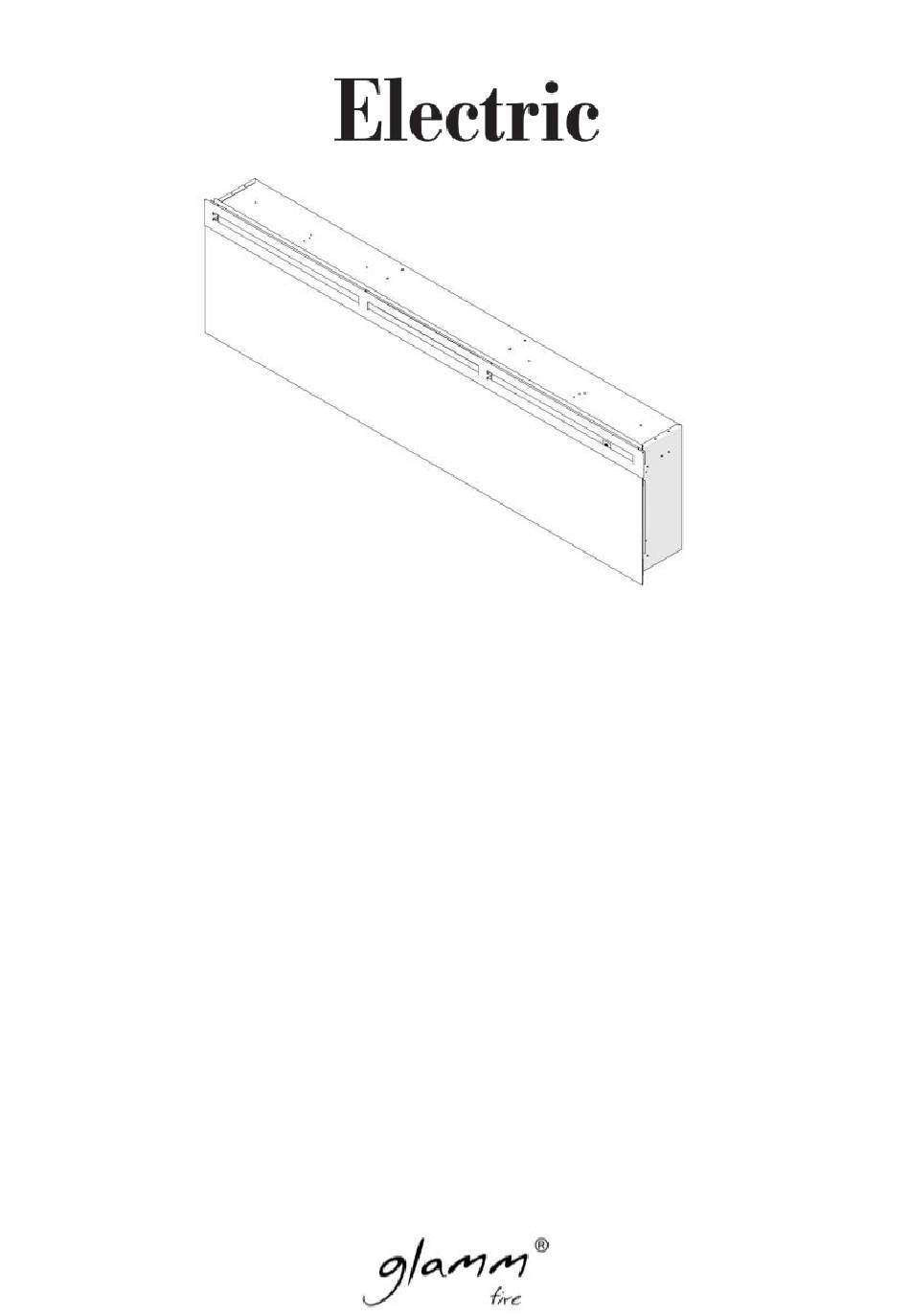

Luminous
Dimensions Luminous 1200
L1230 a x 460 l x 180 p mm
Dimensions Luminous 1800
L 1890 mm x A 500 mm x P 180 mm
Type
Built-in
Voltage
220/240 V
Frequency
50 Hz
Power
1000 W—2000 W
Weight Luminous 1200
25 kg
Weight Luminous 1800
37 kg
Advertisement
Table of Contents
Related Manuals for GlammFire Luminous 1200
Summary of Contents for GlammFire Luminous 1200
- Page 1 Luminous Dimensions Luminous 1200 L1230 a x 460 l x 180 p mm Dimensions Luminous 1800 L 1890 mm x A 500 mm x P 180 mm Type Built-in Voltage 220/240 V Frequency 50 Hz Power 1000 W—2000 W Weight Luminous 1200...
- Page 2 Thank you for purchasing a GlammFire product. To activate your GlammFire 2 years warranty, please register your product at www.glammfire.com/pt/ sobre/garantia or complete your warranty card and send it to us, along with a purchase copy, to our address within 30 days after the pruchase.
-
Page 3: Table Of Contents
GlammFire. PAG./3 INDEX 1—Supplied material 2—Important Safety Advice 3—Installation 3.1— Mounting Methods 3.1.1— Flush mount 3.1.2—Surface mount 3.1.2.1—Luminous 1800 3.1.2.2—Luminous 1200 3.1.3—In-wall Recessed (only on Luminous 1200) 4—Controls 5— Maintenance 6—Overall Dimensions 7—After-Sale Service 8— Warranty... -
Page 4: 1-Supplied Material
Congratulations on purchasing your GlammFire Electric appliance. This quality product has been designed with preci- sion and rigour that characterizes us to offer you pleasant and soothing moments. Please read the instructions for use carefully and effective before using the appliance. -
Page 5: 2-Important Safety Advice
GlammFire. PAG./5 1 - IMPORTANT SAFETY ADVICE PLEASE READ ALL THE INSTRUCTIONS BEFORE USING THIS APPLIANCE. When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock and injury to persons, including the following: If the appliance is damaged, check with the supplier before installation and operation. -
Page 6: 3-Installation
3.1.1 FLUSH MOUNTED: CAUTION: Two people may be required for various steps of this procedure. (Luminous 1200) 1. Prepare a wall with a framed opening of 1245mm wide x 470 cm high (Figure 1). NOTE: The sizing has allowed for 6.4mm around the fireplace insert for ease of installation. This fireplace does not require any additional venting. - Page 7 4. Use bubble level (supplied) to level the fireplace within the framing. Adjust as required. 5. (Luminous 1200): Drive four supplied mounting screws through the four mounting holes located on the inside sur- face of the fireplace chassis, into wall studs (Figure 3) (Luminous 1800): Use the supplied template to mark the 4 screws that secure the installation bar to the wall.
- Page 8 6. Front glass installation: 6.1. Evenly distribute the supplied wood on the front tray of the fireplace (Figure 4). 6.2. Carefully mount front glass assembly so that the front glass hooks (4) hang on the front glass mounts on the fireplace (4) (Figure 5).
-
Page 9: 2-Surface Mount
GlammFire. PAG./9 3.1.2 SURFACE INSTALLATION 3.1.2.1(Luminous 1800) CAUTION: Two people may be required for various steps of this procedure. WARNING: Ensure that the circuit on which the fireplace is to be installed has the power cut off at the service panel until installation is complete. -
Page 10: 2-Luminous 1200
9. Install the removed screw through the bottom support bracket into the fireplace. 10. Refer to Front Glass Installation section final installation procedures. 3.1.2.2 MONTAGEM À SUPERFÍCIE (Luminous 1200) 1. Choose a location which has a minimum of two wall studs available for mounting. - Page 11 GlammFire. PAG./11 4. Position the fireplace on a wall at the position where it will be mounted (Figure 10). Use a bubble level (one is sup- plied) to ensure that fireplace is level on the wall. Figure 10. 5. Ensuring that at least two key-holes line up with a wall stud (key-holes are spaced at 102 mm centers), mark the location of four screw locations on the wall (through key-holes).
-
Page 12: 3-In-Wall Recessed (Only On Luminous 1200)
GlammFire. PAG./12 3.1.3 IN-WALL RECESSED INSTALLATION (ONLY ON LUMINOUS 1200) CAUTION: Two people may be required for various steps of this procedure. 1. Prepare a wall with a framed opening of 1181 mm wide x 420 cm high (Figure 11). - Page 13 GlammFire. PAG./13 4. Use bubble level (supplied) to level the fireplace within the framing. Adjust as required. 5. Drive four supplied mounting screws through the four mounting holes located in each corner of the fireplace chas- sis, into wall studs (Figure 13).
-
Page 14: 4-Controls
GlammFire. PAG./14 4 - CONTROLS WARNING: This electric firebox must be properly installed before it is used. The unit can be controlled by either the manual controls which are located on the upper right of the fireplace or the remote (Figure 7 & 8). The fireplace is supplied with an IR multifunction remote control. - Page 15 GlammFire. PAG./15 G. Temp Down - Press multiple times to lower the heater temperature in 1ºC increments. The lowest temperature that can be set 5ºC. Note: Once you stop at your desired temperature this will flash 3 times, then the display will show the room temperature as detected by the product.
-
Page 16: 5- Maintenance
4 - MAINTENANCE WARNING: Disconnect power before attempting any maintenance or cleaning to reduce the risk of fire, electric shock or damage to persons. Partially Reflective Glass Cleaning The partially reflective glass is cleaned in the factory during the assembly operation. During shipment, installation, handling, etc., the partially reflective glass may collect dust particles;... -
Page 17: 6-Overall Dimensions
GlammFire. PAG./17 6 - OVERALL DIMENSIONS Luminous 1200 Luminous 1800... -
Page 18: 7-After-Sale Service
If the information conflicts, information stated on the proof of purchase will be deemed accurate and true and warranty will be assessed accordingly. The GlammFire is always concerned with the environment. This is reflected when the projection of their products and their packaging. Focusing on the reduction of energy consumption, raw materials, natural resources and quantity of waste generated, GlammFire follows the policy of the 4R's (Reduce, Reuse, Recycle and Recover). - Page 19 Distributor code: Name and Adress of the distribuidor: GlammFire fireplaces are manufactured under the strict Standard of the world recognized ISO 9001:2008 Quality As- surance Certificate. GlammFire products are designed with superior components and materials, assembled by trained craftsmen who take great pride in their work.
- Page 20 Recuperadores Pachinha Lda. Zona Industrial da Lagoa, Lote G1 4950-850 CORTES - MONÇÃO PORTUGAL Tel(+351) 251 654 800 Fax(+351) 251 654 801 info@glammfire.com www.glammfire.com PT09097-E...
