Fire Wonderland
Materials//
Apollo Crea7ion.E I/Rusted
corten steel
Apollo Crea7ion.E II/Brushed
stainless steel
Apollo Crea7ion.E III/Lacquered
steel
OP// blue, black, white, red
GlammFire
Recuperadores Pachinha Lda.
Zona Industrial da Lagoa, Lote G1
4950-850 CORTES - MONÇÃO
PORTUGAL
Tel(+351) 251 654 800
Fax(+351) 251 654 801
info@glammfire.com
www.glammfire.com
GlammFire

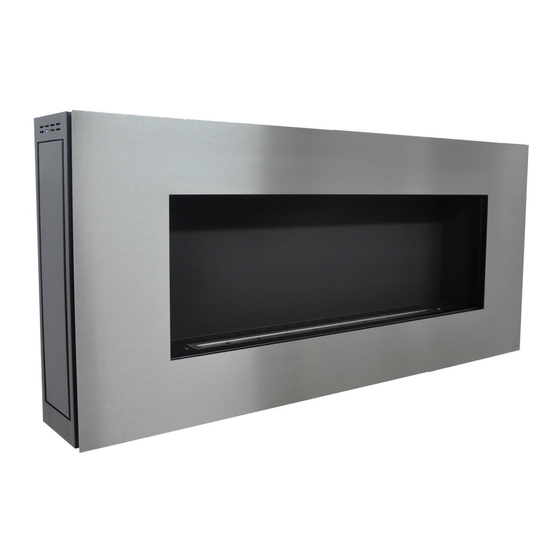

Apollo Crea7ion.E
It is designed to emphasize the unique and continuous expressions of the flame.
Crea7ion is an electronic system with an innovative technology, which stand out its
simple design, practical functionality and low consumption. Its structure and solidity
ensure a perfectly safe and linear flame, while its ecological character keeps a
respecting commitment to the environment, contributing to a pleasant comfort and
well-being.
Crea7ion can be integrated into virtually any environment or directly in different types
of structures (eg.: furniture or masonry). A system totally safe for projects led by
architects, decorators and interior designers.
Control the pleasure of your fire.
Dimensions// 650 h x 1450 w x 215 d mm
Weight// 92 kg
Accessories// - -
Ignition Mode// Electronic— Remote Control
Auxiliary power// Batteries AA (3x1,5V)
Power// 7,50 kW
Combustion fire line// 3 litres (liquid bioethanol)
Burning time// 3 litres/ 3h
/Automatic CO2 Detector included.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Apollo Crea7ion.E Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GlammFire Apollo Crea7ion.E Series

Summary of Contents for GlammFire Apollo Crea7ion.E Series

  • Page 1 GlammFire Apollo Crea7ion.E Fire Wonderland Materials// Apollo Crea7ion.E I/Rusted corten steel Apollo Crea7ion.E II/Brushed stainless steel Apollo Crea7ion.E III/Lacquered steel OP// blue, black, white, red It is designed to emphasize the unique and continuous expressions of the flame. Crea7ion is an electronic system with an innovative technology, which stand out its simple design, practical functionality and low consumption.
  • Page 2 GlammFire Apollo Crea7ion.E Material Supplied 1. Model APOLLO CREATION 2. Mug; 3. Funnel; 4. Lighter; 5. Hex Key; Components 1. Wall fastening plate; 2. Tank; 3. Combustion fire line; 4. Access door to the tank; 5. Decorative rim; 6. Access door to the valve;...

  • Page 3: Installation

    GlammFire Apollo Crea7ion.E Installation In order to ensure a safety margin respect to the ground it is recommended to keep a minimum distance of 400 mm between the floor and the top of the burner; The surface which you want to install the burner must be as level as possible;...
  • Page 4 GlammFire Apollo Crea7ion.E Flammable materials Do not place flammable materials near the fireplace, within 1m;  Racks or shelves should be distant:  From fireplaces: 500 mm;   From burners: 1000 mm;  Materials: stone/metal/ceramics A - 150 mm;...
  • Page 5 GlammFire Apollo Crea7ion.E Installation Procedures Very Important: We recommend extreme caution when unpacking your fireplace. The decorative rim is seated in the wall fastening plate, but it is loosened. Separate the decorative rim to start the installation. 1 — Fireplace body 2 —...
  • Page 6 GlammFire Apollo Crea7ion.E Place the fireplace in the desired location and mark the six holes required on the wall to install it. Make sure your fireplace is level. Choose the type of fastener suitable for the wall material and proceed to the drilling.
  • Page 7 GlammFire Apollo Crea7ion.E Operation Instructions Access to the tank through the access door on the right side of  the fireplace; Access to the deposit of bioethanol through the access door  on the right side of the fireplace; With the help of the funnel and mug provided fill the desired amount of fuel (maximum: 3 litres).
  • Page 8 GlammFire Apollo Crea7ion.E Overall dimensions GlammFire Recuperadores Pachinha Lda. Zona Industrial da Lagoa, Lote G1 4950-850 CORTES - MONÇÃO PORTUGAL Tel(+351) 251 654 800 Fax(+351) 251 654 801 info@glammfire.com www.glammfire.com PT04195-A...
