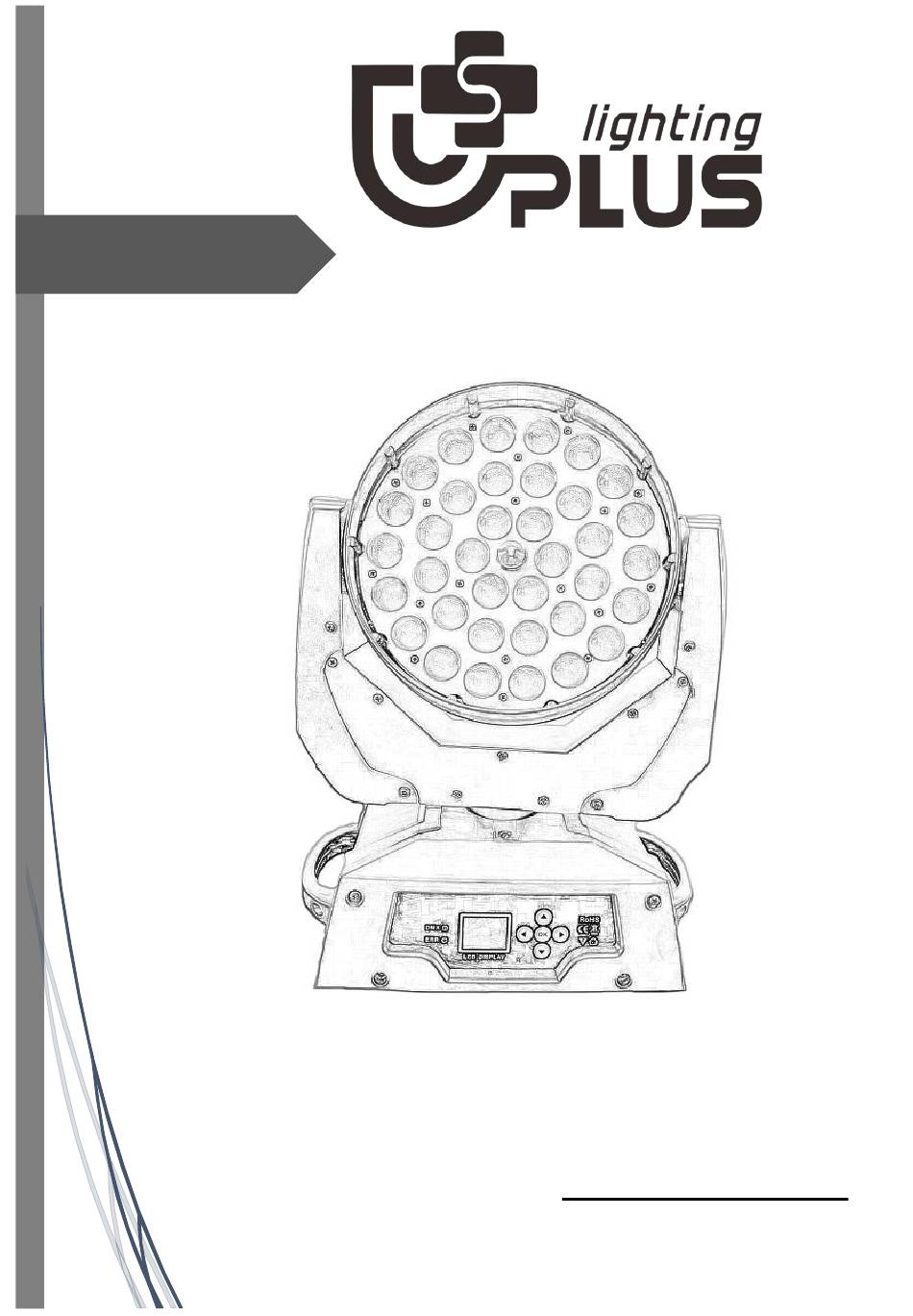

- Page 1 User manual 36X12Z WASH Please read the instructions carefully before use...
- Page 2 TABLE OF CONTENTS 1. Safety Instructions……………………………………………………………………………3-4 Technical Specifications…………………………………………………………………………4 Control Menu ……………………………………………………………………………………4-5 DMX Channels ……………………………………………………………………………………6 Trouble Shooting…………………………………………………………………………………7 Fixture Cleaning………………………………………………………… ………………………7 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &...
- Page 3 1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit. •...
- Page 4 fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture. •The equipment must be fixed by professionals.
- Page 5 Pan Inversion Off/On System Settings Tilt Inversion Off/On Operation Mode DMX/Sound/auto Operation Mode Channel 15/17channel language English/Chinese Invert word Yes/No Display LCD Backlight on 000 - 255 Tilt 000 - 255 Pan/Tilt speed 000 - 255 000 - 255 DIM_R 000 - 255 DIM_G 000 - 255...
- Page 6 4.DMX Channels 17/15 CH Mode channel Channel scale function declaration instructions 17CH 15CH CH 1 C H1 0-255 Pan 0-540° rotation (coarse adjustment) Pan/Tilt CH 2 C H2 0-255 Tilt 0-270° rotation (fine tuning) CH 3 C H3 Pan/Tilt speed 0-255 The larger the value, Pan/Tilt speed CH 4...
- Page 7 5.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.
