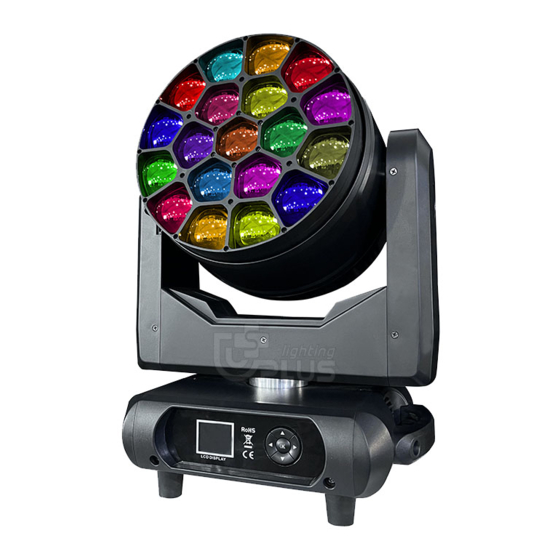

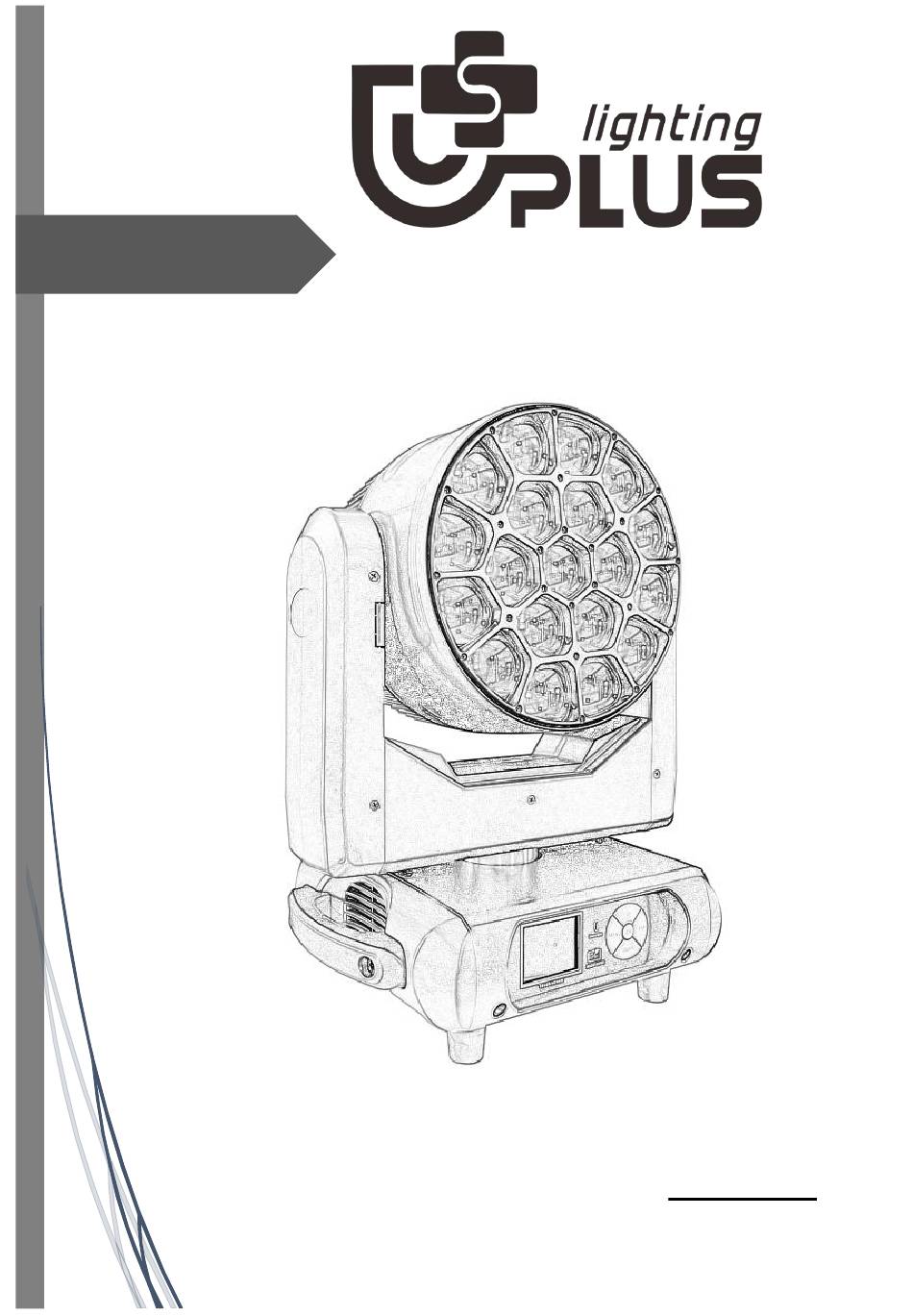

- Page 1 User manual PZ1915 Please read the instructions carefully before use...
- Page 2 TABLE OF CONTENTS 1. Safety Instructions……………………………………………………………………………3 Technical Specifications…………………………………………………………………………4 Control Menu ……………………………………………………………………………………5 DMX Channels …………………………………………………………………………………6-10 Dimension …………………………………………………………………………………………11 Trouble Shooting…………………………………………………………………………………12 Fixture Cleaning………………………………………………………… ………………………12 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &...
- Page 3 1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit. •...
- Page 4 Installation: •The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture.
- Page 5 3.Control Menu Dmx Address 001 - 512 Ch Mode 21CH /35CH/78CH/97CH/92CH Run Mode DMX / AutoX Pan Invert Close/ Open Tilt Invert Close/ Open Fixture Fan Control Norma/Low/Quiet/High Dim Curve Line/Curv/S-Cur Dim Fast Close Close/ Open No DMX State Clear/ Keep 000 - 255 Red Fine 000 - 255...
- Page 6 Display Mode 60s / Show Protocol ArtNet/Sacn K1ingNet Disable/Enable Net Setting Universe 000 - 255 Ip Address 000.000.000.000 Subet Mask 000.000.000.000 DMX Channels 21CH channel Standard Mode 21CH Red fine Red fine-tuning Green Green Green fine Green fine-tuning Blue Blue Blue fine Blue Tint White...
- Page 7 35CH channel SHAPE Built-in Shape Mode 35CH Red fine Red fine-tuning Green Green Green fine Green fine-tuning Blue Blue Blue fine Blue Tint White White White fine White Trim Linear CTO Color Temperature Control Macro colour Color Macro Strobe Strobe Dimmer Dimming Dimmer Fine...
- Page 8 78CH channel EXTENDED Mode 78CH Red fine Red fine-tuning Green Green Green fine Green fine-tuning Blue Blue Blue fine Blue Tint White White White fine White Trim Linear CTO Color Temperature Control Macro colour Color Macro Strobe Strobe Dimmer Dimming Dimmer Fine Dimmer Trim Horizontal...
- Page 9 97CH channel EXTENDED RGBW Mode 97CH Red fine Red fine-tuning Green Green Green fine Green fine-tuning Blue Blue Blue fine Blue Tint White White White fine White Trim Linear CTO Color Temperature Control Macro colour Color Macro Strobe Strobe Dimmer Dimming Dimmer Fine Dimmer Trim...
- Page 10 92CH channel FULL Mode 92CH Red fine Red fine-tuning Green Green Green fine Green fine-tuning Blue Blue Blue fine Blue Tint White White White fine White Trim Linear CTO Color Temperature Control Macro colour Color Macro Strobe Strobe Dimmer Dimming Dimmer Fine Dimmer Trim Horizontal...
- Page 11 Red LED 19 Red 19. Green LED 19 Green 19. Blue LED 19 Blue 19. 5.Dimension...
- Page 12 6.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.
