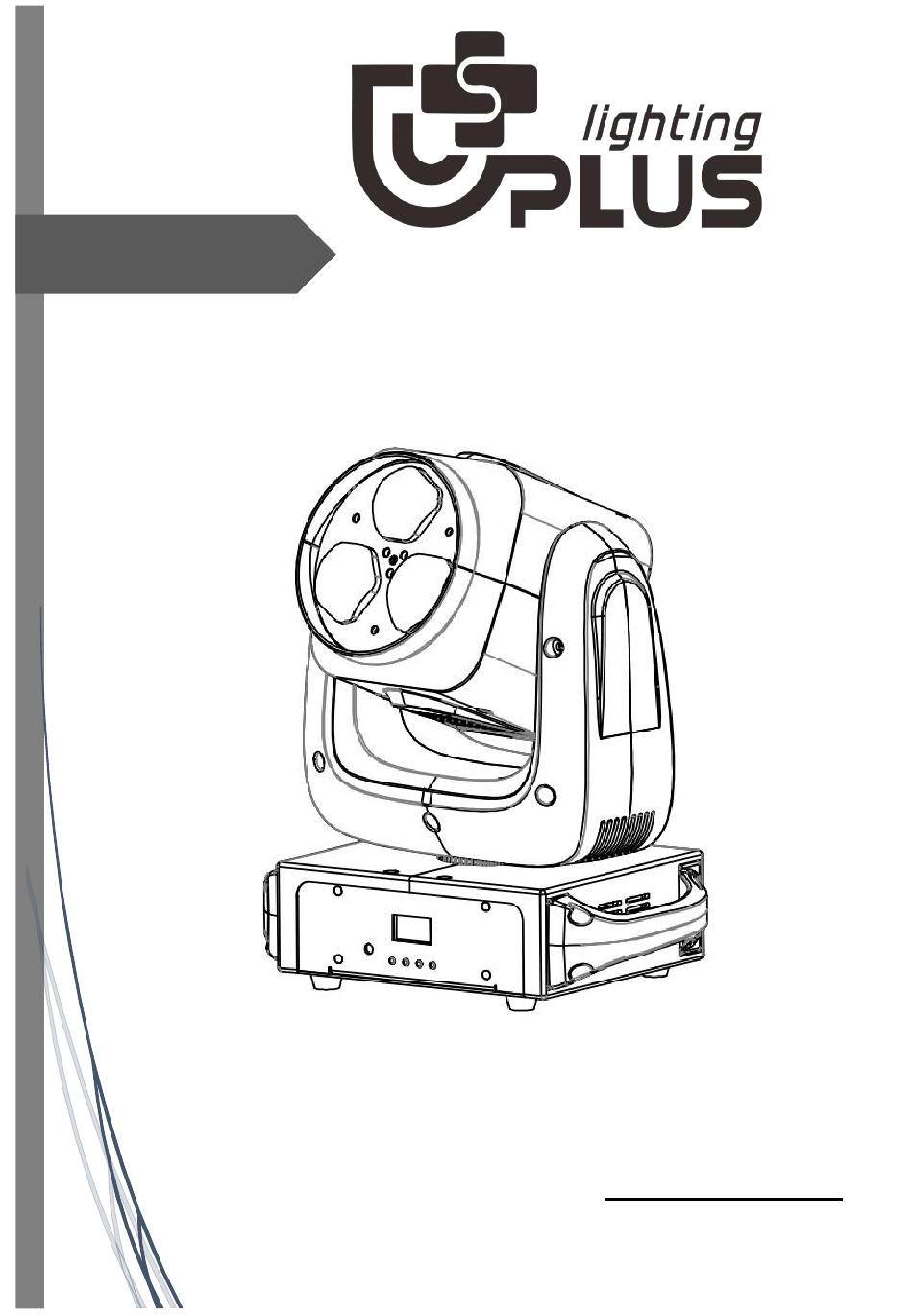

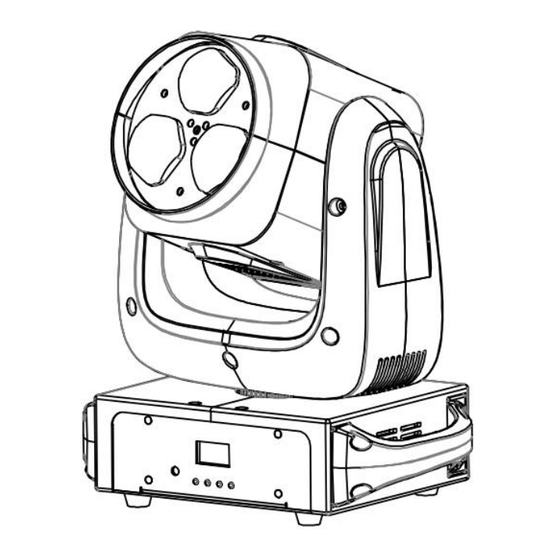

- Page 1 User manual 3X40 B-EYE Please read the instructions carefully before use...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety Instructions……………………………………………………………………………3-4 Technical Specifications…………………………………………………………………………4 Control Menu ……………………………………………………………………………………5-6 DMX Channels ………………………………………………………………… ………………6-8 Dimension…………………………………………………………………………………………8 Trouble Shooting…………………………………………………………………………………9 Fixture Cleaning………………………………………………………… ………………………9 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &... -
Page 3: Safety Instructions
1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit. •... -
Page 4: Technical Specifications
•The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture. -
Page 5: Control Menu
3.Control Menu Menu Operation Address: Click to enter the address code setting Settings: Click to enter system settings Test: Click to enter manual mode Calibration: Click to enter the password to enter the system calibration mode Reset: Click to enter the system reset mode Information: Click to enter to view system information 1.DMX Address 001-512... -
Page 6: Dmx Channels
Factory Set 4.Settings Reset Motor （ Reset all Motor ） 5.System Info Softvare V1.12 Mode Address 4.DMX Channels 10CH Mode Channel DMX Value Function 000 - 255 000 - 255 000-255 Dimmer(0-100%) 000-004 Shutter closed 005-250 Strobe effect slow to fast 251-255 Shutter open 000-255... - Page 7 000-255 Zoom(0-100%) 000-100 Effect Lens linear(0~90°) 101-133 Effect Lens Shake from small to big 134-194 Backward rotation from fast to slow 195-255 Forward rotation from slow to fast 000-010 No function(close) 011-020 021-030 031-040 041-050 051-060 061-070 071-080 081-090 091-100 101-110 111-120 R+G+W...
-
Page 8: Dimension
241-255 X/Y Sound Control 000-050 empty 051-100 Fast Speed(10S) 101-150 empty 151-200 Fade Speed(10S) 201-250 empty 251-255 RESET(10S) 5.Dimensions... -
Page 9: Trouble Shooting
6.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.
