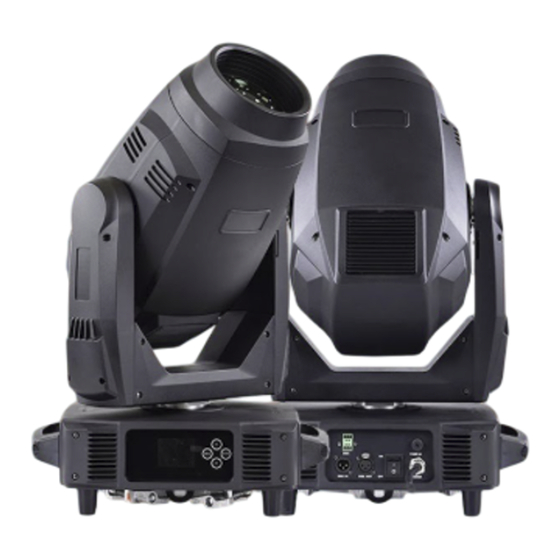

Uplus Lighting BSW 380 User Manual

Hide thumbs Also See for BSW 380:

Advertisement

Quick Links

Download this manual
User manual
BSW 380
Please read the instructions carefully before use

Advertisement

loading
Need help?

Need help?

Do you have a question about the BSW 380 and is the answer not in the manual?

Questions and answers

Related Manuals for Uplus Lighting BSW 380

Summary of Contents for Uplus Lighting BSW 380

  • Page 1 User manual BSW 380 Please read the instructions carefully before use...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety Instructions………………………………………………………………………………3 2. Technical Specifications…………………………………………………………………………4 3. Control Menu ……………………………………………………………………………………5-8 4. DMX Channels …………………………………………………………………………………9-12 5. LUX Date …………………………………………………………………………………………13 6. Dimension …………………………………………………………………………………………14 7. Trouble Shooting…………………………………………………………………………………15 8. Fixture Cleaning………………………………………………………… ………………………15 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &...

  • Page 3: Safety Instructions

    1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. • Unpack and check carefully there is no transportation damage before using the unit. •Before operating, ensure that the voltage and frequency of power supply match the power requirements of the unit.

  • Page 4: Technical Specifications

    2.Technical Specifications Source:PHILIPS 380W (Light bulb rated life: 1500H) Voltage:100~240V ，50/60Hz Power:680W Colour temperature:7800K Power-off display function: Set the address of DMX and other menus to charge automatically when charged The battery does not need to be replace Horizontal: 540°, Vertical:270° The speed of the horizontal/vertical movement can be adjusted to automatically complete the horizontal/vertical correction Optical coupling positioning function to facilitate the initial position correction and maintenance...

  • Page 5: Control Menu

    3.Control Menu return MENU To the latter option DOWN To the previous option Enter the menu selection function \ to confirm the selected function ENTER 1.Display screen: display of various function menus; 2.Push-button: 3.Phoenix plug: for DMX transfer; 4.Insurance 5.pipe (T8A): excessive current prote 6.DMX import: For DMX 512 connection, use a 3-core XLR signal cable to connect the lamp to the DMX console, and input the DMX signal;...
  • Page 6 or wait for 30 seconds to automatically exit the menu mode. 6.When there is no power connection, press MENU button for 3 seconds to enter menu mode. After setting, press ENTER button for 1 second or wait for 40 seconds before the power off to automatically exit the setting function.
  • Page 7 Thin Mode 23 (CH) Yes / no horizontal View the current channel ..0-255 Functional channel automatic testing horizontal 0-255 perpendicular 0-255 manual test ..0-255 stroboflash 0-255 Horizontal Yes / no vertical pigment Yes / no Manual control of lamps and pattern Yes / no lanterns...
  • Page 8 Reset the light bulb time Yes / no Internal use 0-255 Regular maintenance of light Remaining maintenance bulb Heavy / no time Service contact information Number of equipment maintenance application Equipment fine-tuning service calibration Device data clearance Record of equipment use Device fine-tuning settings Select the equipment fine tuning setting, press the ENTER button to confirm, adjust the equipment fine tuning setting (password: 1212), and enter the initial setting menu to adjust the...

  • Page 9: Dmx Channels

    4.DMX Channels Model – CH29/CH25/ CH23 Standar Thin Full Mode The channel d Mode Mode Channel, name function 29 (CH) value 25 (CH) 23 (CH) horizontal 000-255 0-540 degrees horizontal 000-255 16 The b i t is adjustable perpendicular 000-255 0-270 degrees perpendicular 000-255...
  • Page 10 CTB Cold color CTO 3200K (Half-color 109-156 value 135) 157-196 CTO 3200K CTO3200K CTO5600K (Half-color value 197-254 224) Color disk 2 CTO 5600K white light 1-18 peony 19-70 Dark red blue (half-color value 43) 71-108 blue Color plate 3 109-156 Blue Green (133) 157-196 green...
  • Page 11 92-95 Pattern 6 jitter effect, from slow to fast 96-99 Pattern 5 jitter effect, from slow to fast 100-103 Pattern 4 jitter effect, from slow to fast 104-107 Pattern 3 jitter effect, from slow to fast 108-111 Pattern 2 jitter effect, from slow to fast 112-115 Pattern 1 jitter effect, from slow to fast 116-119...
  • Page 12 151-231 Reverse rotation, from slow to fast Forward and reverse rotation, from slow 232-255 to fast Rotation pattern rotation 000-255 16 The b i t is adjustable fine-tuning 0-15 white light Prism 1 16-255 Eight prism 0-127 Eight-prism rotation position 128-189 Forward rotation, from fast to slow Prism 1 rotation...

  • Page 13: Lux Date

    5.LUX Date BEAM pattern: SPOT pattern: WASH pattern:...

  • Page 14: Dimension

    6.Dimension...

  • Page 15: Trouble Shooting

    7.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.
