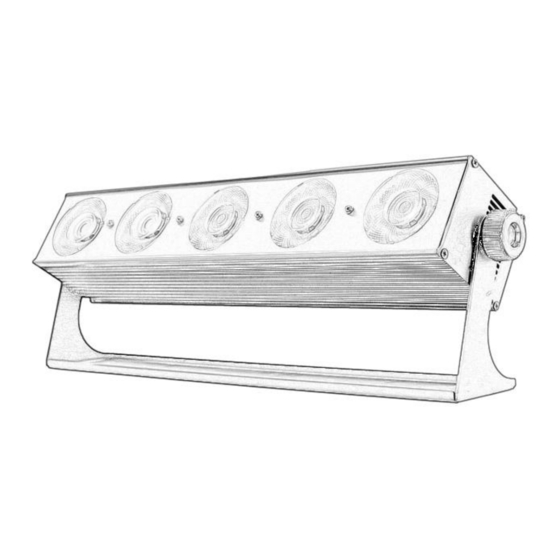

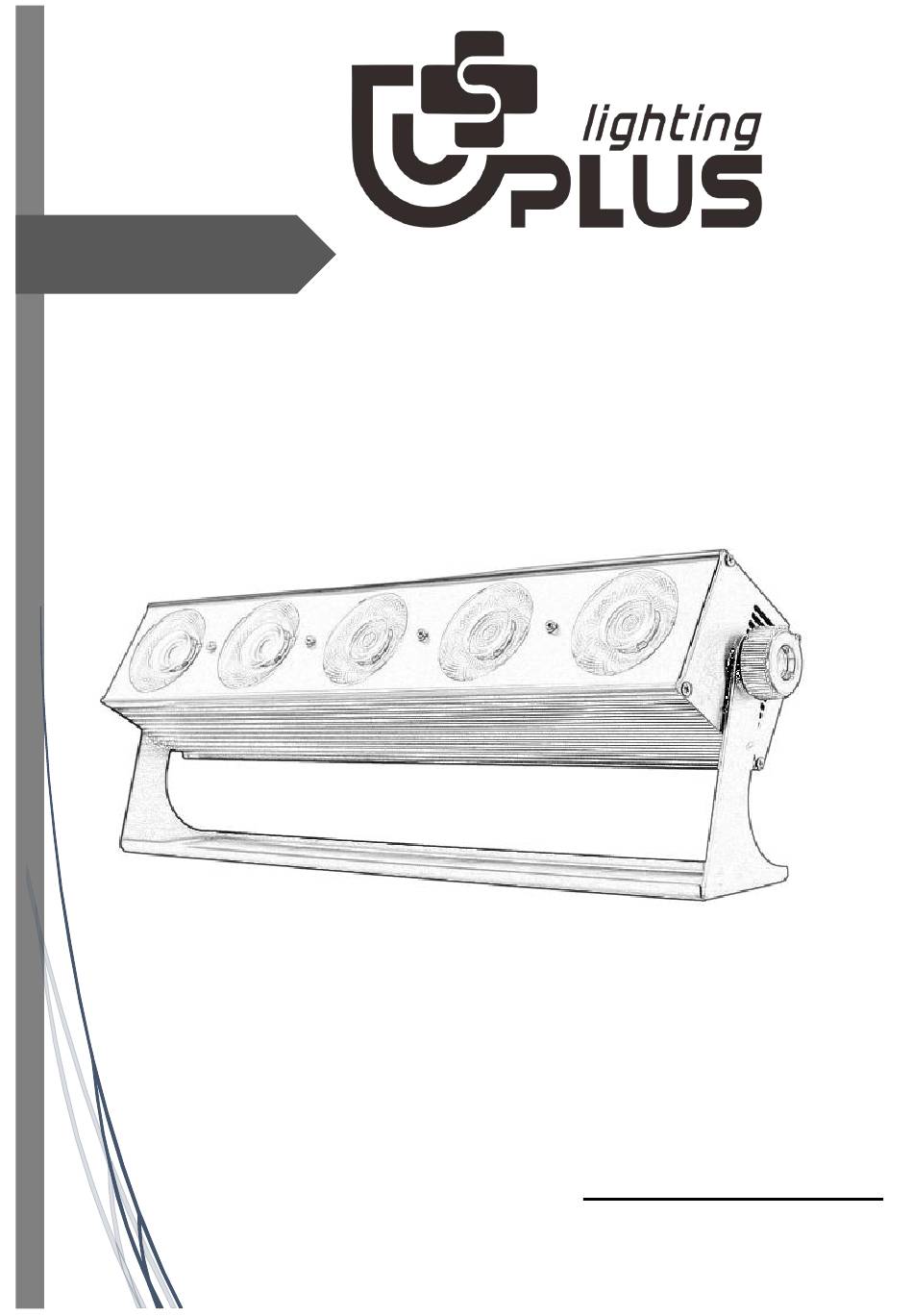

- Page 1 User manual 5X30 COB BAR Please read the instructions carefully before use...
- Page 2 TABLE OF CONTENTS 1. Safety Instructions……………………………………………………………………………3-4 Technical Specifications…………………………………………………………………………4 Control Menu ………………………………………………………………………………………5 DMX Channels ……………………………………………………………………………………6-7 Trouble Shooting…………………………………………………………………………………8 Fixture Cleaning………………………………………………………… ………………………8 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &...
- Page 3 1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit. •...
- Page 4 fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture. •The equipment must be fixed by professionals.
- Page 5 3. 3.Control Menu Button Function Mode Choose mode or function exit ENTER Current show menu or enter into the current selected function Increase the value DOWN Decrease the value Channel Values Function Axxx A001~A512 Address Code Setting xxCH 5CH/9CH/19CH Channel setting Auxx Au01~Au07 Color Selection...
- Page 6 4.DMX Channels DMX Channels(5 channels) 5Channel Channel values Function 0~255 Total dimmer, 0-100% 0~255 Red color brightness adjustment-from dark to bright 0~255 Green color brightness adjustment-from dark to bright 0~255 Blue color brightness adjustment-from dark to bright Light on 8~15 Light off 16~131 regular Strobe from slow to fast...
- Page 7 DMX Channels(19channels) 19Channel Channel values Function 0~255 Total dimmer, 0-100% 0~255 R1 Tuned light, 0-100% 0~255 G1 Tuned light, 0-100% 0~255 B1 Tuned light, 0-100% 0~255 R2 Tuned light, 0-100% 0~255 G2 Tuned light, 0-100% 0~255 B2 Tuned light, 0-100% 0~255 R3 Tuned light, 0-100% 0~255...
- Page 8 5.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.
