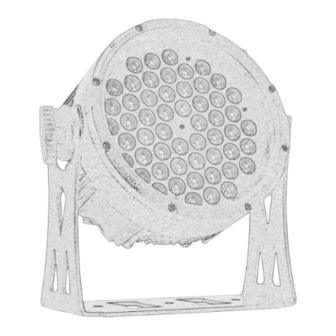

- Page 1 User manual IP PAR-54X3 Please read the instructions carefully before use...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety Instructions……………………………………………………………………………3 Technical Specifications………………………………………………………………………4 Control Menu ……………………………………………………………………………………4-5 DMX Channels ……………………………………………………………………………………6 Dimension…………………………………………………………………………………………6 Trouble Shooting…………………………………………………………………………………7 Fixture Cleaning………………………………………………………… ………………………7 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &... -
Page 3: Safety Instructions
1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. •Unpack and check carefully there is no transportation damage before using the unit. •Before operating, ensure that the voltage and frequency of power supply match the power requirements of the unit. -
Page 4: Technical Specifications
2.Technical Specifications Light Sources: 54X3W RGBW LED Power Consumption: 180W Power Voltage: AC 100-240V, 50/60Hz Beam angle:25° Dimension:298x282x157mm Net Weight: 5Kgs Control DMX Channel: 4/8 Channel Control Modes: DMX 512, Auto mode, Master/Slave, Sound active Construction Display: Digital panel Data In/Out socket: waterproof 3-pin XLR sockets Protection Rating: IP65 Features Outstanding color macro effect ,fade and built in programs... - Page 5 Display: [MENU] menu selection or return to previous menu. [UP] press [UP] through the menu list to increase/change the value of the current function. [DOWN] press [DOWN] through the menu list to decrease/change the value of the current function. [ENTER] confirm & quit out current function setting. Display panel operation instruction Show Function...
-
Page 6: Dmx Channels
4.DMX Channels DMX channel´s functions and values (4 DMX channels): Channel Function Instruction R Dimmer Red Dimmer- Dark to Bright G Dimmer Green Dimmer- Dark to Bright B Dimmer Blue Dimmer- Dark to Bright W Dimmer White Dimmer- Dark to Bright DMX channel´s functions and values (8 DMX channels): Channel Function... -
Page 7: Trouble Shooting
6.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.
