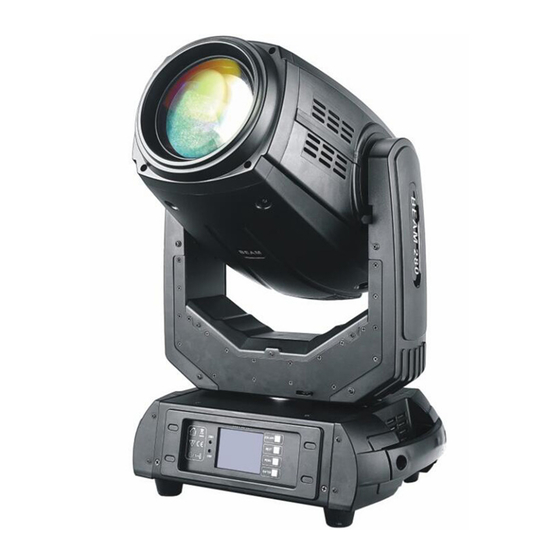

Uplus Lighting BSW 280 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
User manual
BSW 280
Please read the instructions carefully before use

Advertisement

loading
Need help?

Need help?

Do you have a question about the BSW 280 and is the answer not in the manual?

Questions and answers

Related Manuals for Uplus Lighting BSW 280

Summary of Contents for Uplus Lighting BSW 280

  • Page 1 User manual BSW 280 Please read the instructions carefully before use...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety Instructions……………………………………………………………………………3-4 Technical Specifications…………………………………………………………………………4 Control Menu ……………………………………………………………………………………5-6 DMX Channels ……………………………………………………………………………………6-10 Trouble Shooting…………………………………………………………………………………11 Fixture Cleaning………………………………………………………… ………………………12 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &...

  • Page 3: Safety Instructions

    1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit. •...

  • Page 4: Technical Specifications

    fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture. •The equipment must be fixed by professionals.

  • Page 5: Control Menu

    3.Control Menu Menu Operation On the base of the control panel offers a number of features, such as setting DMX fixture address, switch the lamp, run the test program, the mode selection. DMX Address 001-512 DMX 16 channel DMX 24 channel Auto Run Sound Control RUN MODE...

  • Page 6: Dmx Channels

    Prism Frost Strobe Pan invert Tilt invert P/T rectify Advanced setup Pan Offset Tilt Offset lamp up when reset done power on manual Factory setting sure work mode address version Statue setup elapse total DMX clr Sys Rst 4.DMX Channels Model - CH16/CH24 CH NO Name...
  • Page 7 240~255 empty Open/white （100%~10%） 9~17 colour 1（100%~10%） 18~26 colour2（100%~10%） 27~36 Colour 3（100%~10%） 37~45 Colour 4（100%~10%） 46~54 Colour 5（100%~10%） 55~63 Colour 6（100%~10%） 64~72 Colour 7（100%~10%） 73~81 Colour 8（100%~10%） 82~90 Colour 9（100%~10%） 91~100 Colour 10（100%~10%） 101~109 Colour 11（100%~10%） 110~118 Colour 12（100%~10%） 119~127 Colour 13（110%~10%）...
  • Page 8 34~39 Gobo 6 40~45 Gobo 7 46~51 Gobo 8 52~57 Gobo 9 58~63 Gobo 10 64~69 Gobo 11 70~75 Gobo 12 76~81 Gobo 13 82~87 Gobo 14 88~95 Shaking gobo 1 from slow to fast 96~103 Shaking gobo 2 from slow to fast 104~111 Shaking gobo 3 from slow to fast 112~119...
  • Page 9 41~43 Rotation gobo 4 Rotation gobo 5 44~46 Rotation gobo 6 47~49 Rotation gobo 7 50~52 Rotation gobo 8 53~55 Rotation gobo 9 56~59 Shaking gobos 60~67 Shaking gobo 1 from slow to fast 68~75 Shaking gobo 2 from slow to fast 76~83 Shaking gobo 3 from slow to fast 84~91...
  • Page 10 When the rotation pattern is set to the stream channel no rotation Forwards gobo wheel rotation from 1~127 fast to slow 128~129 no rotation Backwards gobo wheel rotation from 130~255 slow to fast no rotation 0~19 Open position (hole) 20~49 6-face linear rotating prism -indexing 50~75 6-face linear rotating prism- rotation...

  • Page 11: Trouble Shooting

    0~31 Shutter closed 32~63 Shutter open 64~95 Strobe-effect from slow to fast 96~127 open shutter Opening pulse in sequences from slow 128~159 to fast 160~191 open 192~223 Random strobe-effect from slow to fast 224~255 open dimmer 0~255 0~100%dimmer 5.Trouble Shooting Following are a few common problems that may occur during operation.

  • Page 12: Fixture Cleaning

    6.Fixture Cleaning The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics. Clean with soft cloth using normal glass cleaning fluid.
