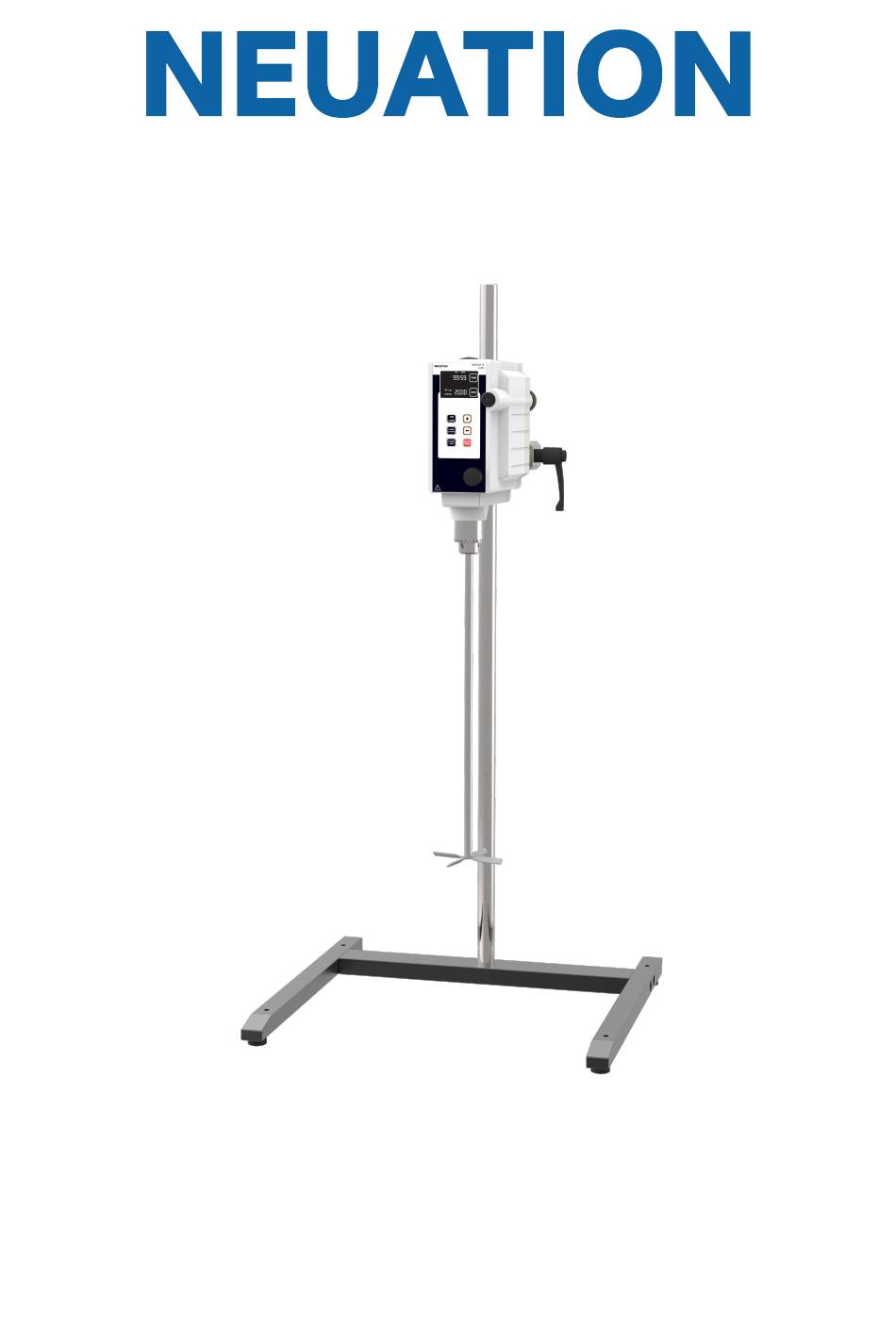

- Page 1 OH 75 ELITE PRODUCT USER MANUAL...
-
Page 3: Table Of Contents
CONTENTS PRODUCT DESCRIPTION INTENDED USE SYMBOL FEATURES ACCESSORIES TECHNICAL SPECIFICATIONS SAFETY PRECAUTIONS INSTALLATION & OPERATION MAINTENANCE & CLEANING TROUBLESHOOTING WARRANTY STATEMENT PRODUCT DISPOSAL IMPELLER TECHNICAL SPECIFICATION... -
Page 4: Product Description
1. PRODUCT DESCRIPTION The overhead stirrer is designed to give homogeneous mixing of the liquid sample. It comes with IP protection class (IP 42), variable speed & timer setting, Large LED display and CW/CCW mixing. Its has smart control feature which ensures the constant mixing of highly viscous solutions. -
Page 5: Safety Precautions
± 1 RPM Speed step Speed accuracy >500 RPM ± 1 % Speed accuracy <500 RPM ± 5 RPM Speed accuracy <100 RPM ± 30 RPM Timer range 1 min - 99 hr 59 min & infinite mode Display Digital (LED) Reversible direction of rotation yes, (Resumes from left parameters upon Power Intermittent operation... - Page 6 whole assembly. Thus make ensure all the components are fasten properly. Never operate the device with the stirrer tools rotating freely. Ensure that · parts of the body, hair, jewellery or items of clothing cannot be trapped by the rotating parts. The safety of the user cannot be guaranteed if the device: ·...
-
Page 7: Installation & Operation
The equipment will not restart, both in case of power interruption and in the · case of any fault or mechanical interruption. Care should be taken based on the sample used for mixing. · 8. INSTALLATION & OPERATION Open the box, unpack the device & place the device on a level surface gently. Then unpack the accessories &... -
Page 8: User Interface & Display
USER INTERFACE & DISPLAY Mins Time Smart Control Start Start Power Stop Stop Inter Item Button Name Function Press the key to start the mixing & To stop the Start operation press the same key again. Stop To set speed in RPM, press this key & the desired RPM can set upon blinking &... - Page 9 Knob for easy setting of parameters Knob/Encoder Function(All the keys will be operational only upon turning the power switch) Start / Stop: Press the key to start the mixing. To stop the operation press the same key again. RPM: To set speed in rpm, press the key upon blinking desired rpm can be set in chosen direction.
-
Page 10: Smart Control
resume the operation for the left time only upon the power is restored. Example: If 60 minute is the set time and the power off happens at 54 or 51minutes, the machine will resume from 55minutes; and if power off happens at 58minutes then it resumes at 60min. -
Page 11: Warranty Statement
Switch of the device completely. Require torque to mix Unplug the power adaptor. This will the medium at given (Overload) reset the error. Decrease the load on speed is more then the the motor and restart device again rated value of the device. Switch of the device &... -
Page 12: Product Disposal
Products received without proper authorization will not be processed for warranty or service. All items returned for service should be sent with postage prepaid in the original packaging or another suitable packaging, padded to avoid damage. We will not be responsible for damage incurred by improper packaging. Note: This warranty is valid only if the warranty is registered with the supplier within 30 days from the date of purchase. -
Page 13: Impeller Technical Specification
13. IMPELLER TECHNICAL SPECIFICATION Viscosity Blade size Length Shaft dia. Max. Cat. Images Type Application Flow Range (mm) (mm) (mm) 75 Elite (mm) mPas Propeller For High Speed & 50x8 2000 0-10,000 2000 Axial Blade Impeller Low Viscosity mixing For Low to Medium Propeller Speed &... - Page 16 Accumax Lab Devices Private Limited Plot No. 15, 16 & 32 GIDC Electronic Park SEZ, Sector 26, Gandhinagar, Gujarat, India - 382026. Website: www.accumaxlab.com...
