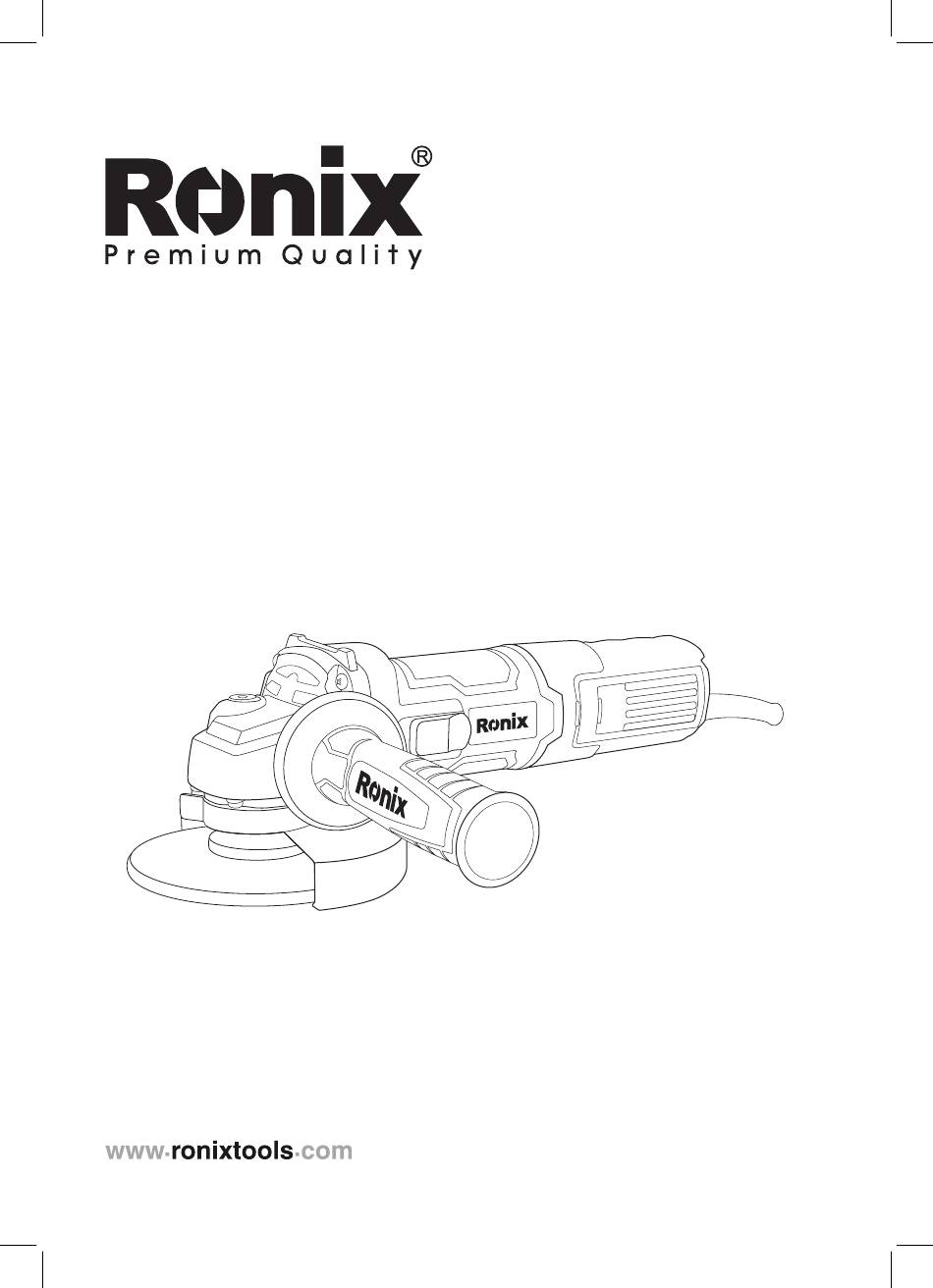

- Page 1 MINI ANGLE GRINDER 750W mm - 3120N...
- Page 3 SPECIFICATION 3120N Model Power 750W Voltage 220-240V Frequency 50-60Hz No-load Speed 11000RPM Wheel Diameter 115mm Spindle Size 1.9Kg (with side handle Weight and protect guard) 1 pair carbon brushes 1 pc side handle Includes 1 pc protect guard 1 pc flange spanner...
- Page 4 GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
- Page 5 of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. NOTE! The term residual current device (RCD) may be replaced by the term ground fault circuit Interrupter (GFCI) or earth leakage circuit breaker (ELCB).
- Page 6 collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. POWER TOOL USE AND CARE a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
- Page 7 - Accessories must be rated for at least the speed recommended on the tool warning label. Wheels and other accessories running over rated speed can fly apart and cause injury. - Hold tool by insulated gripping surfaces when performing an operation where the grinding tool may contact hidden wiring or its own cord.
- Page 8 PREPARATION FOR USE INSTALLING AUXILIARY HANDLE - Screw the side grip securely on the position of the tool as shown in the figure. ASSEMBLY THE PROTECTIVE GUARD Screw Screw Driver WARNING! Prior to assembly and adjustment always switch off the grinder and pull out the power plug from the mains socket.
- Page 9 REPLACING THE GRINDING DISC DANGER OF INJURY! Beware – a disc which has been used may be very hot! Two-Hole Spanner Outer Flange Backing Flange OutPut Spindle USER MANUAL...
- Page 10 Pull out the power plug from the mains socket. Depress and hold down the spindle lock button to secure the spindle. Turn the output spindle until it locks. Remove the outer flange and backing flange by using the two-hole spanner provided. Fit the desired disc on the spindle and replace the outer flange and backing flange.
- Page 11 Backing Flange Outer Flange SWITCHING ON / OFF ATTENTION! Before working with the angle grinder, check that the voltage shown on the machine’s model plate is the same as the mains voltage being used. Before engage the ON/OFF switch button check that the grinding disc is properly fitted and run smoothly, and the outer flange is well tightened.
- Page 12 Connect the plug to the power supply. SWITCHING ON Switch the angle grinder on by depress the rear position of the ON/OFF switch button as the arrows on the show and pushing the switch button forward and lock onto the “ON” position. SWITCHING OFF Depress the rear position of the ON/OFF switch button it returns automatically to the “OFF”...
- Page 13 and does not mean the grinder is defective. Switch off the grinder after use. GREAT DANGER OF INJURY! SPLITTING Splinters of splitting disc may be ejected at a very high speed. - Do not apply any side pressure to the wheel, as the cutting wheel can jam and burst.
- Page 16 MINI ANGLE GRINDER 750W mm - 3120N...
