Ronix 3101 Manual

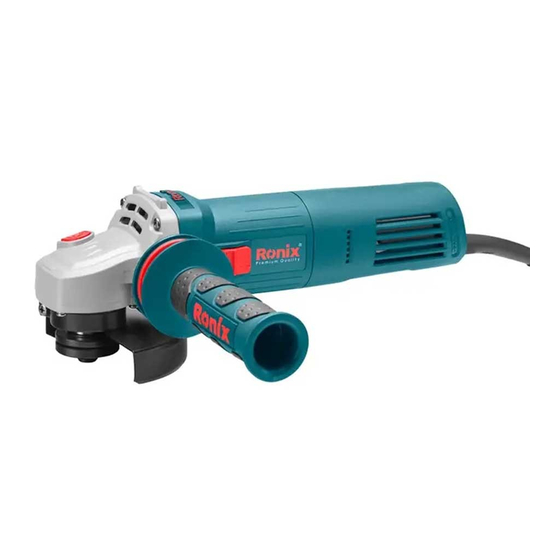

Mini angel grinder 115mm
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MINI ANGEL GRINDER 115mm
3101

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3101 and is the answer not in the manual?

Questions and answers

Related Manuals for Ronix 3101

Summary of Contents for Ronix 3101

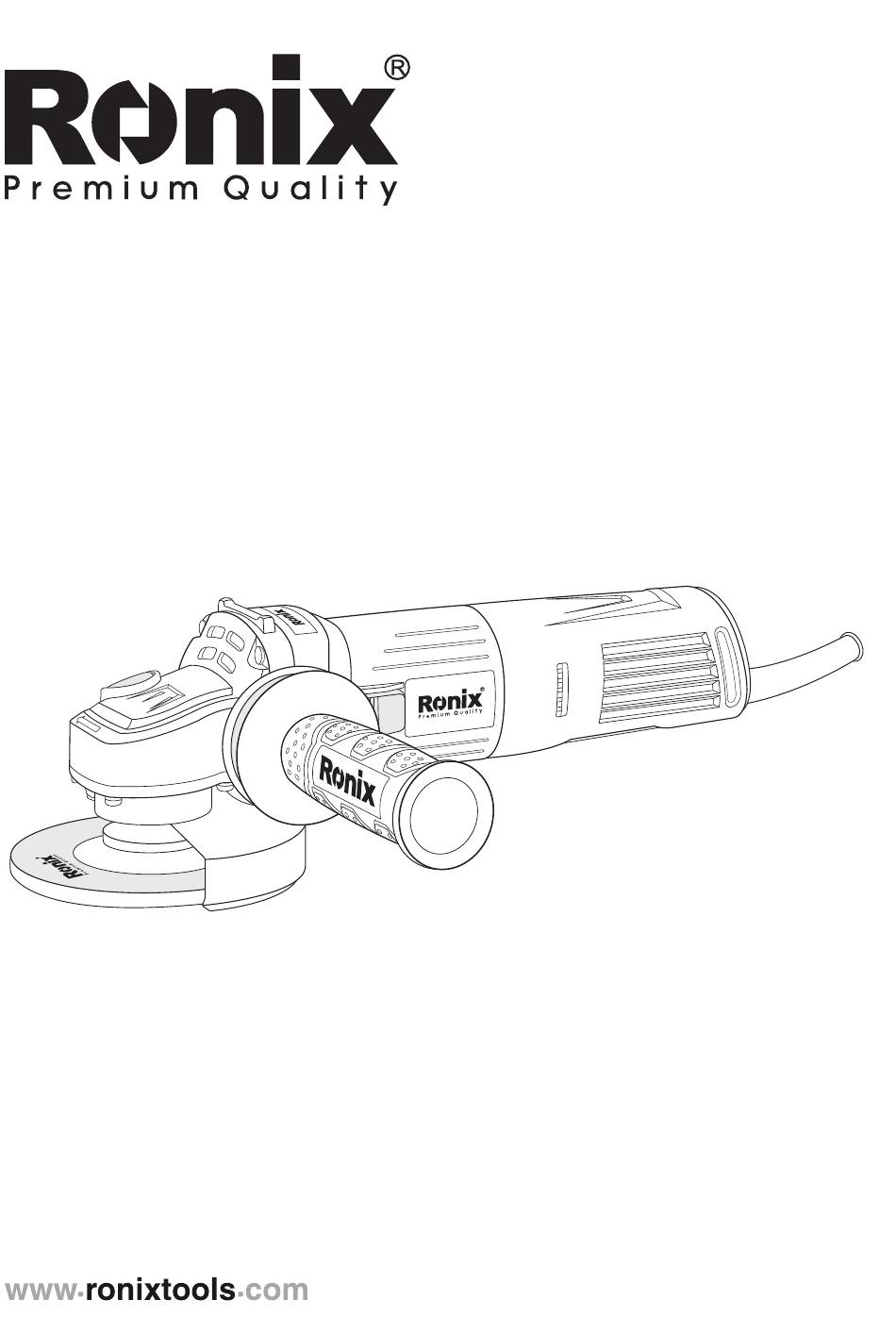

  • Page 1 MINI ANGEL GRINDER 115mm 3101...

  • Page 3: Technical Specifications

    TECHNICAL SPECIFICATIONS 3101 Model Power 1200W No-load RPM 3000~11000RPM Voltage 220-240V Frequency 50-60Hz Wheel Diameter 115mm Spindle Size Weight 2.1Kg Spanner,Carbon Brush,Ronix Includes Auxiliary Handle,Wheel Guard 115mm PART LIST Spindle lock button ON/OFF switch button Auxiliary handle Grinding disk Protection guard...

  • Page 4: General Power Tool Safety Warnings

    GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

  • Page 5: Personal Safety

    suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. F) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
  • Page 6 jewelry or long hair can be caught in moving parts. G) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. POWER TOOL USE AND CARE A) Do not force the power tool.
  • Page 7 SPECIFIC SAFETY RULS - Always use proper guard with grinding wheel. A guard protects operator from broken wheel fragments. - Accessories must be rated for at least the speed recommended on the tool warning label. Wheels and other accessories running over rated speed can fly apart and cause injury.
  • Page 8 - Watch out for flying sparks. Hold the tool so that sparks fly away from you and other persons or flammable materials. - Do not touch the work piece immediately after operation; it may be extremely hot and could burn your skin. PREPARATION FOR USE INSTALLING AUXILIARY HANDLE - Screw the side grip securely on the position of the tool as shown in the...
  • Page 9 seconds to check that it is working correctly and that there are no abnormal vibrations. Stop the grinder immediately if heavy vibration occurs, and investigate the cause. REPLACING THE GRINDING DISC DANGER OF INJURY! Beware – a disc which has been used may be very hot! Two-hole spanner A.Outer Flange B.Backing Flange...
  • Page 10 Flange arrangement when using a depressed center grinding disc. Backing Flange Outer Flange Flange arrangement when using a depressed- center cutting wheel. Backing Flange Outer Flange Flange arrangement when using a straight cutting wheel. WARNING! The wheel continues to rotate after the tool is switched off. MINI ANGEL GRINDER...

  • Page 11: Switching On/Off

    Backing Flange Outer Flange SWITCHING ON / OFF ATTENTION! Before working with the angle grinder, check that the voltage shown on the machine’s model plate is the same as the mains voltage being used. Before engage the ON/OFF switch button check that the grinding disc is properly fitted and run smoothly, and the outer flange is well tightened.

  • Page 12: Speed Adjustment

    SPEED ADJUSTMENT The product features the ability to adjust the rotational speed adjustment is done by means of a knob. The lower the dial setting, the lower the speed. GRINDING Hold the handle and auxiliary handle firmly and switch on. Avoid blocking the ventilation slots with your hand, as this may cause the grinder to overheat.
  • Page 13 Sparks can occur in the motor compartment during use. This is normal and does not mean the grinder is defective. Switch off the grinder after use. GREAT DANGER OF INJURY! SPLITTING Splinters of splitting disc may be ejected at a very high speed. - Do not apply any side pressure to the wheel, as the cutting wheel can jam and burst.

  • Page 14: Cleaning And Maintenance

    CLEANING AND MAINTENANCE GREAT DANGER OF INJURY! Danger of electric shock! Before cleaning, always remove the plug from the mains socket. Remove dust and dirt with a cloth slightly dampened with detergent solution. In doing so, ensure that no water gets into the machine. - Clean ventilation slits with a brush.
