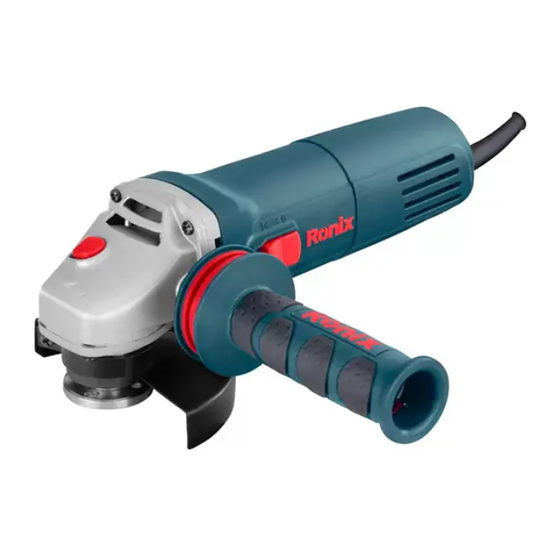

- Page 1 MINI ANGLE GRINDER 3110...
-
Page 2: Technical Specification
TECHNICAL SPECIFICATION Model 3110 Power 880W Voltage-Frequency 220V-50Hz No Load Speed 11000RPM Cutting Disc Diameter 115mm Weight 2.2Kg Guard : 1pc Accessories Spanner: 1pc Side Handle:1pc PART LIST Switch Locking Pin Cutting Blade Side Handle Protect Guard WARNINNG! - When using electric tools,All the safety instructions shouhd always be... - Page 3 BASIC SAFETY PRECAUTIONS FOR ALL ELECTRIC TOOLS KEEP WORK AREA CLEAN - Cluttered area and benches invite injuries. CONSIDER WORK AREA ENVIRONMENT - Don’t use electric tools in damp or wet locations . Don’t expose electric tools to rain. Keep work area well-lit in particular, no inflammable liquids or gases must be present.
- Page 4 DRESS PRPPERLY - Don’t wear loose clothes or jewelry . they can be caught in moving parts. Rubber gloves and non-skid footwear are recommended when working outdoors. Wear protective hair covering to contain long hair. USE SAFETY GOGGLES - Always wear safety goggles. If dust is produced, use the special masks. DON’T ABUSE CABLES - Never carry tool by cable or yank it to disconnect it form socket.
-
Page 5: Stay Alert
USE EXTENSION CORD - If an extension cord is required, always check that its cross-section measurement is equal to or greater than that of the tool capabilities and so marked. STAY ALERT - Watch what you are doing . Use common sense. Do not operate tool when you are tired. -
Page 6: Structure And Functions
STRUCTURE AND FUNCTIONS - The angle grinder is hand-held class II electric power tools with double- insulated structure. Driven by single –phase series motor , and with speed reduced by a pair of spiral bevel gears, the series of tools are widely used for removing burrs from surface of metal part, beveling and fishing weid seams, cutting thin wall tubes and small size metal material, etc in the fields of machines-builing, vehicle manufacturing, chemical... -
Page 7: Operation Regulations
8) It is important for you to select fiber reinforced cymbal –type disc whose safety speed is not less than the no load rated speed. It is prohibited to use the disc whose diameter is bigger than that of rated size. The no load speed of this series of tools, please see to the list attached. - Page 8 - Fix the screw on protect guard until tightened.(Figure3) HOW TO CHANGE THE DISC WARNING! - Before installing or disassembting the disc, please make sure the switch is “0” position and the plug is not connected with socket. - The max speed of the disc installing 4800 m/min. - Fixthe inner flange onto the spindle, then put the disc onto the inner flange.
- Page 9 - Press the spindle lock on the gear box, screw the out flange with the flange spanner include in the accessories until the out flange is fastened tighty .(Figure 5) - You can also install or disassemble the disk with two spanners, with one spanner to be installed to upper part of flange to lock the main shalf, and with another spanner to disassemble the flange nut.
- Page 10 SWITCHED “ON”AND”OFF” OPERATION WARNING! - Before plug the angle grinder into the power socket, please make sure the spindle ock is on “0”position. - To turn the angle grinder into switch “I” position, then the tool start running. - To switch the angle grinder into switch “0” position, then the tool stops. (Figure6) switch EFFECTIVE AND SAFELY WORKING METHOD...
-
Page 11: Service And Maintenance
d)when using new disc,don’t move the tools in B direction , otherwise the work piece maybe cut off. After the disc become round , then the tools could be moved in both A and B directions. SERVICE AND MAINTENANCE 1)Always disconnect the tool before carrying out inspection or cleaning .
