Ronix 3100K Quick Start Manual

Mini angle grinder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

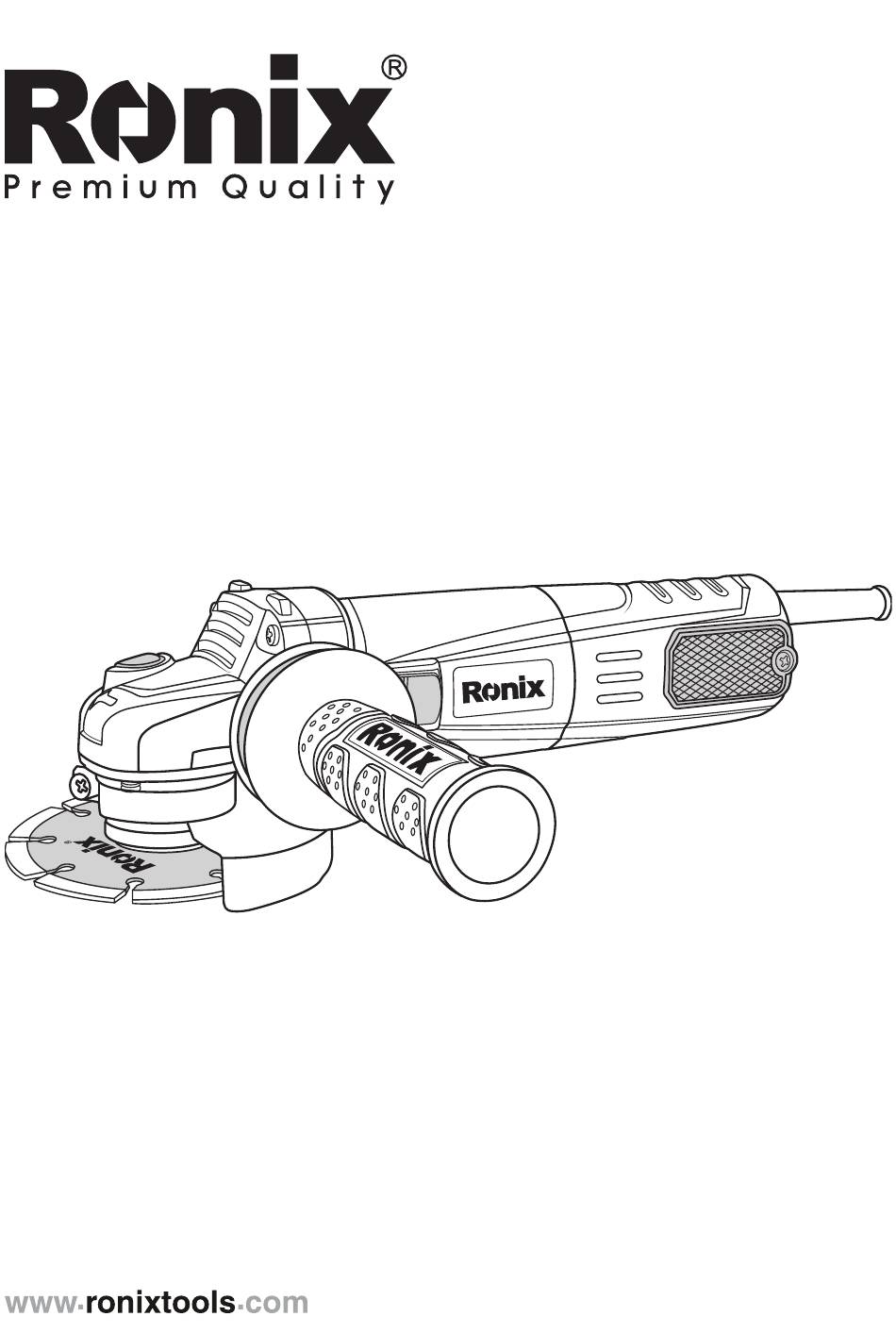

MINI ANGLE GRINDER
3100K

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3100K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ronix 3100K

Summary of Contents for Ronix 3100K

  • Page 1 MINI ANGLE GRINDER 3100K...

  • Page 2: Specification

    SPECIFICATION Model 3100K Power 1100W No-load RPM 11000-3000 RPM Voltage 240-220 V Frequency 60-50 Hz Wheel Diameter 115mm Spindle Size Weight 2.1kg Supplied in Anti-shock Ronix-design side handle, Protection Includes guard, Extra carbon brush, Spanner PART LIST Gear Box Side Switch...

  • Page 3: General Power Tool Safety Warnings

    GENERAL POWER TOOL SAFETY WARNINGS WARNING! - Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and or serious injury. - Save all warnings and instructions for future reference. - The term “power tool”...

  • Page 4: Personal Safety

    device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. - Use of power supply via a RCD with a rated residual current of 30mA or less is always recommended. PERSONAL SAFETY - Stay alert, watch what you are doing and use common sense when operating a power tool.
  • Page 5 application. The correct power tool will do the job better and safer at the rate for which it was designed. - Don’t use the power tool if the switch doesn’t turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

  • Page 6: Specific Safety Rules

    SPECIFIC SAFETY RULES - Always use proper guard with grinding wheel. A guard protects operator from broken wheel fragments. - Accessories must be rated for at least the speed recommended on the tool warning label. Wheels and other accessories running over rated speed can fly apart and cause injury.

  • Page 7: Functional Description

    Watch for vibration or wobbling that could indicate poor installation or a poorly balanced wheel. - Use the specified surface of the wheel to perform the grinding. - Watch out for flying sparks. Hold the tool so that sparks fly away from you and other persons or flammable materials.
  • Page 8 SWITCH ACTION CAUTION: - Before plugging in the tool, always check to see that the slide switch actuates properly and returns to the “OFF” position when the rear of the slide switch is depressed. - Switch can be locked in “ON” position for ease of operator comfort during extended use.
  • Page 9 INSTALLING SIDE GRIP (HANDLE) CAUTION: - Always be sure that the side grip is installed securely before operation. - Screw the side grip securely on the position of the tool as shown in the figure. INSTALLING OR REMOVING WHEEL GUARD Fixing Screw Protect Guard CAUTION:...

  • Page 10: Operation

    WARNING! - Always use supplied guard when depressed center grinding wheel/ Multi-disc is on tool. Wheel can shatter during use and guard helps to reduce chances of personal injury. - Mount the inner flange onto the spindle. Fit the wheel / disc on the inner flange and screw the lock nut onto the spindle.

  • Page 11: Maintenance

    To maintain product SAFETY and RELIABILITY, repairs, carbon brush inspection and replacement, any other maintenance or adjustment should be performed by RONIX SERVICE Authorized or RONIX Service Centers, always using RONIX SERVICE replacement parts. MINI ANGLE GRINDER...
