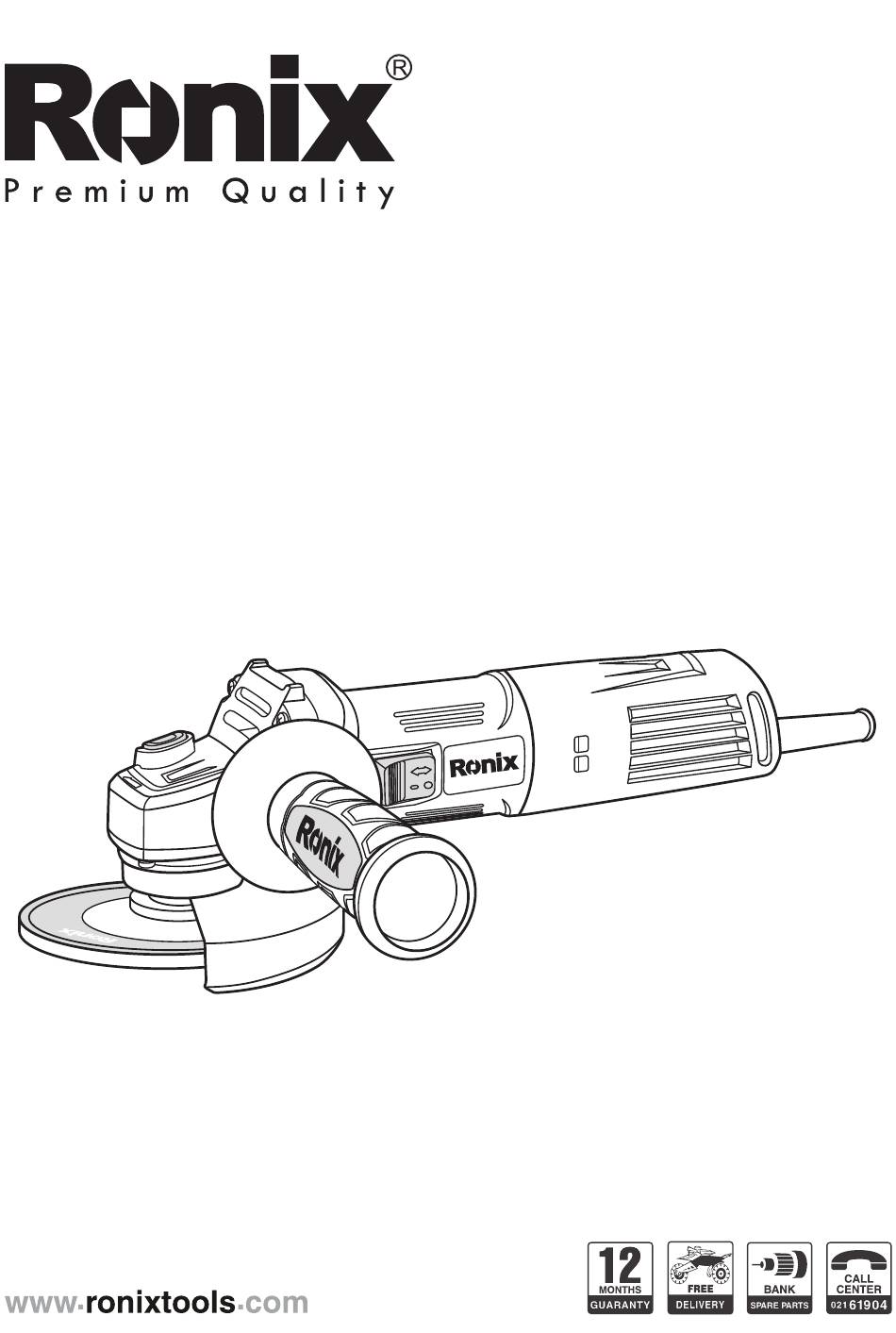

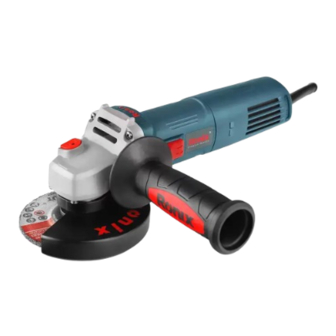

- Page 1 MINI ANGLE GRINDER 3111V...
-
Page 2: Specification
SPECIFICATION 3111V Model 840W Power Voltage 220V Frequency 60Hz No Load Speed 11000rpm Disc Diameter 115mm Net. weight Accessories Side handle,wheel guard PARTS LIST Shaft Lock Gear Box Side Switch Grinding Wheel Side Wheel Guard Handel USER MANUAL... -
Page 3: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING! - Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and or serious injury. - Save all warnings and instructions for future reference. - The term “power tool”... -
Page 4: Personal Safety
- If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. - Use of power supply via a RCD with a rated residual current of 30mA or less is always recommended. - Page 5 POWER TOOL USE AND CARE - Don’t force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. - Don’t use the power tool if the switch doesn’t turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
-
Page 6: Specific Safety Rules
SPECIFIC SAFETY RULES - Always use proper guard with grinding wheel. A guard protects operator from broken wheel fragments. - Accessories must be rated for at least the speed recommended on the tool warning label. Wheels and other accessories running over rated speed can fly apart and cause injury. -
Page 7: Functional Description
- Before using the tool on an actual workpiece, let it run for a while. Watch for vibration or wobbling that could indicate poor installation or a poorly balanced wheel. - Use the specified surface of the wheel to perform the grinding. - Watch out for flying sparks. - Page 8 SWITCH ACTION CAUTION - Before plugging in the tool, always check to see that the slide switch actuates properly and returns to the “OFF” position when the rear of the slide switch is depressed. Switch - Switch can be locked in “ON” position for ease of operator comfort during extended use.
- Page 9 ASSEMBLY CAUTION Always be sure that the tool is switched off and unplugged before carrying out any work on the tool. INSTALLING SIDE GRIP (HANDLE) CAUTION - Always be sure that the side grip is installed securely before operation. - Screw the side grip securely on the position of the tool as shown in the figure. INSTALLING OR REMOVING WHEEL GUAR Disk Guard Guard Screw...
-
Page 10: Operation
- Mount the wheel guard with the protrusion on the wheel guard band aligned with the notch on the bearing box. Then rotate the wheel guard around 180 degrees. Be sure to tighten the screw securely. - To remove wheel guard, follow the installation procedure in reverse. Installing or removing depressed center grinding wheel/Multi-disc. - Page 11 applies adequate pressure. Forcing and excessive pressure could cause dangerous wheel breakage. - ALWAYS replace wheel if tool is dropped while grinding. - NEVER bang or hit grinding disc or wheel onto work. - Avoid bouncing and snagging the wheel, especially when working corners, sharp edges etc.
-
Page 12: Maintenance
Regularly clean the tool’s air vents or whenever the vents start to become obstructed. To maintain product SAFETY and RELIABILITY, repairs, carbon brush inspection and replacement, any other maintenance or adjustment should be performed by RONIX SERVICE Authorized or RONIX SERVICE Centers, always using RONIX SERVICE replacement parts. USER MANUAL...
