Summary of Contents for Ronix 3510

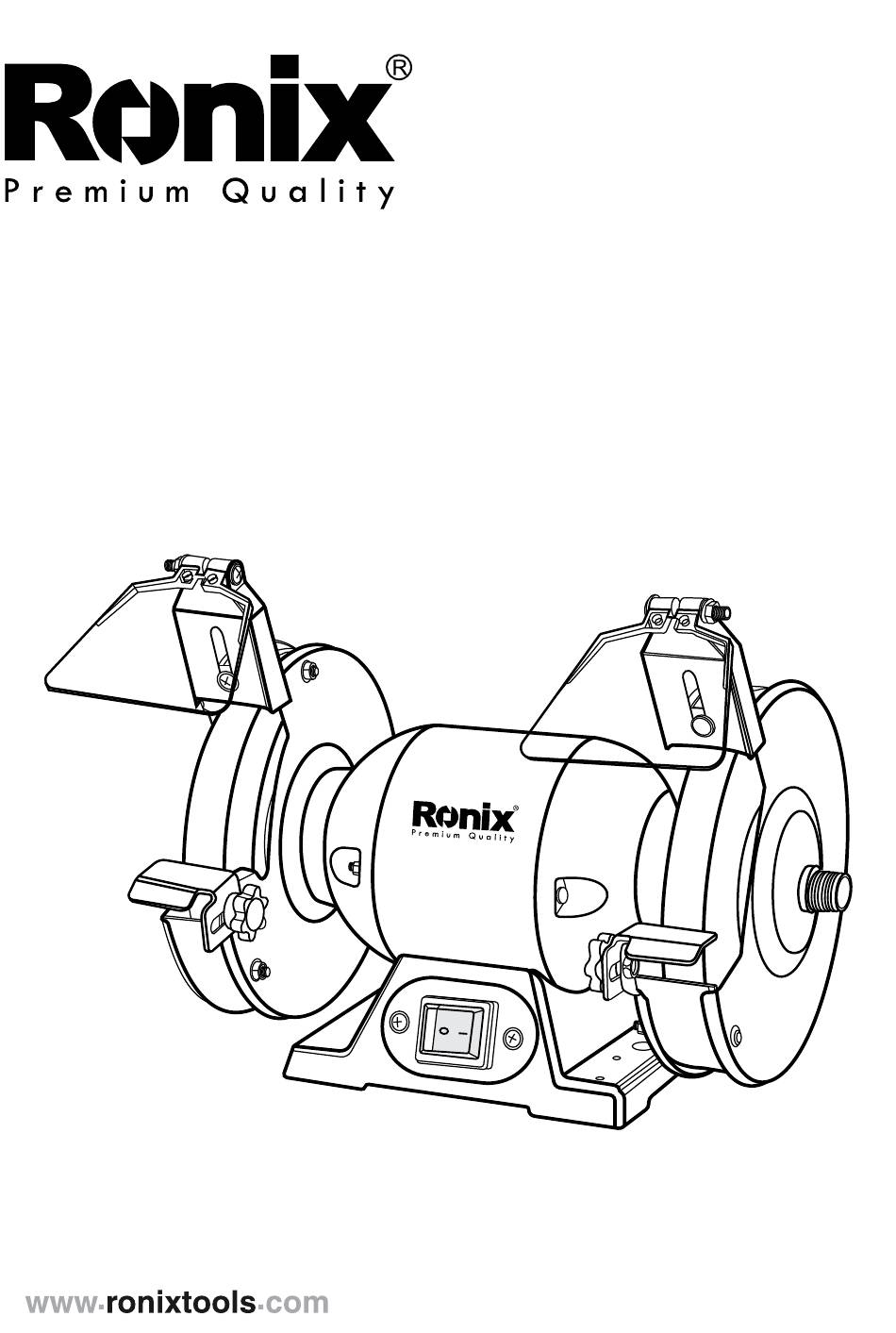

- Page 1 BENCH GRINDER 3510...
-
Page 2: Technical Specification
TECHNICAL SPECIFICATION Model 3510 Power 200W Voltage 220V Frequency 50Hz No-load speed 2950 RPM Wheel size 150×16×12.7mm weight 5.5 Kg PARTS LIST bench grinding stone Tool rest ORIGINAL INSTRUCTION Before using this bench grinder, please carefully read though these instructions. Ensure that you know how the machine works, and how it should be operated. -
Page 3: General Power Tool Safety Warnings
shape metal prior to welding or fitting. SAFETY SYMBOLES In this operator’s manual/or machine’s labels following symbols are used: Double insulation Accordance with essential applicable safety of European directives Wear ear and eye protection. Denote risk of personal injury, loss of life or damage to the tool in case of nonobservance of the instruction in this manual. -
Page 4: Electrical Safety
- Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. - Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. - Page 5 used for appropriate conditions will reduce personal injuries. - Avoid accidental starting. Ensure the switch is in the off position before plugging in. - Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
-
Page 6: Additional Safety Rules For Bench Grinder
result in a hazardous situation. ADDITIONAL SAFETY RULES FOR BENCH GRINDER 1- Always wear eye protection that complies with a recognized standard (CSA or ANSI). 2- Wear a mask or respirator when dust is generated. 3- Keep bystanders out of the work area while operating the tool. 4- Always ensure that the work area is clear of any flammable materials, liquids or gasses, because the use of this tool may create sparks. -
Page 7: Residual Risks
18- Don’t wipe plastic part with solvent: Solvent such as gasoline, thinner, alcohol etc. these kind of chemical material, are not allowed to use, water or soap are recommended! 19- In case of damage, the replacement of the plug or the supply cord shall always be carried out by authorized centers. -
Page 8: Switch Operation
ASSEMBLY Mount the grinder securely to a sturdy workbench or grinding stand. 1- position the grinder on the workbench. 2- Mark the Workbench through the two mounting holes located in the grinder base. 3- Drill holes in the workbench at the marks and with nuts, as shown (not supplied) secure the grinder to the workbench. -
Page 9: Warranty
INSTALLING OR CHANGING THE WHEEL 1- Use a screwdriver to loosen the wheel cover screws and push anti-clockwise to remove the wheel cover. 2- Fit an appropriately sized wrench on the spindle hex nut. Loosen the wheel nut in a clockwise direction for the left side and a counter-clockwise direction for the right side. -
Page 10: Troubleshocting
collected at the appropriate recycling location. TROUBLESHOCTING Service on these tools should only be performed by an authorized technician. SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION 1.check power source for proper voltage. 1.Low Voltage. 2. inspect all lead connection on 2.Open circuit in motor motor for loose or open connections. - Page 11 1.Reduct the rate at which the Machine slows 1.Feed rate too great. workpiece is fed into the working area when operating. of the tool( grinding wheel). 1.Ensure machine is securely moun 1.Machine vibrating. on a solid surface. Wary condition 2. Workpiece not being 2.Use a holding device to firmly retain on surface of held sirmly.
