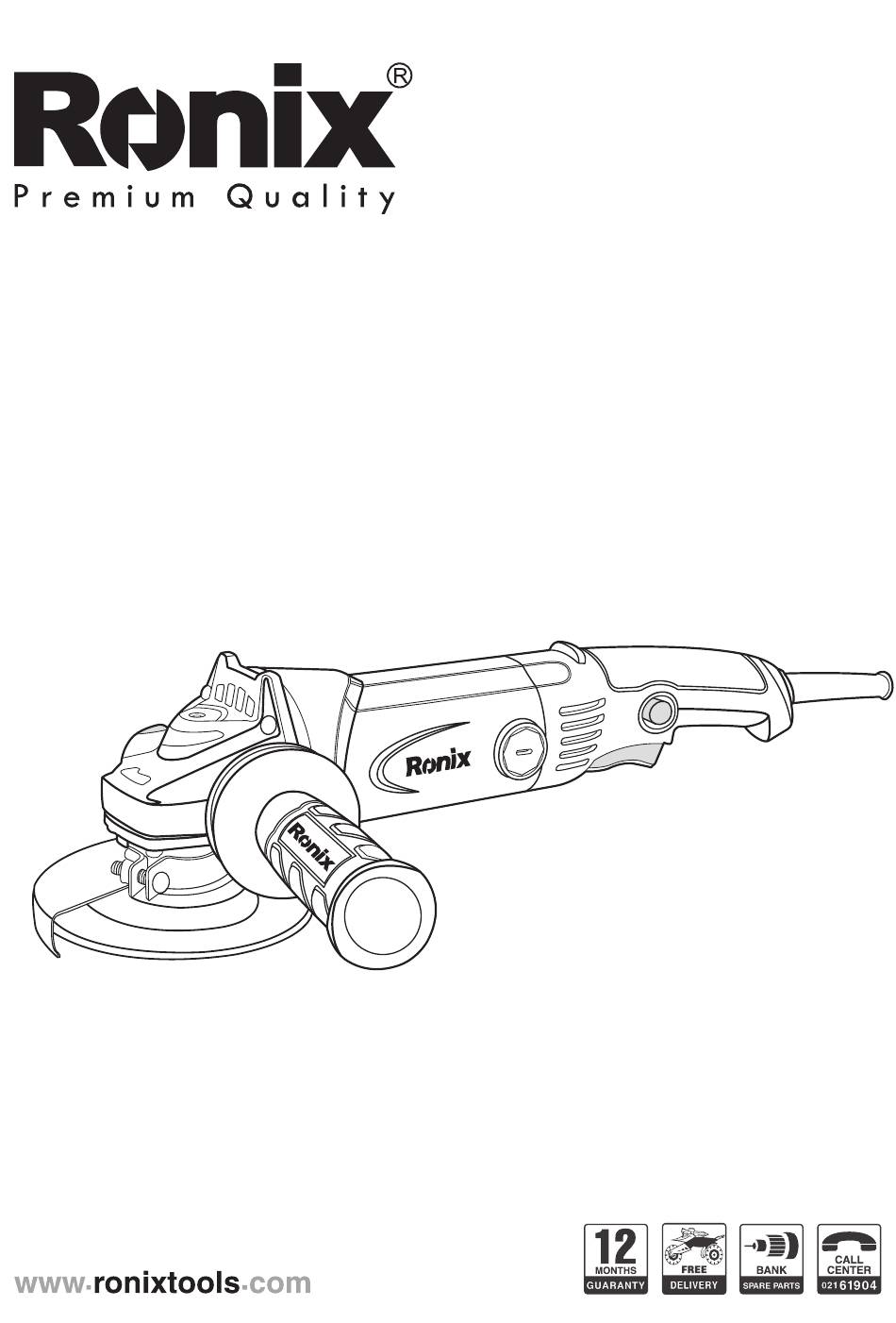

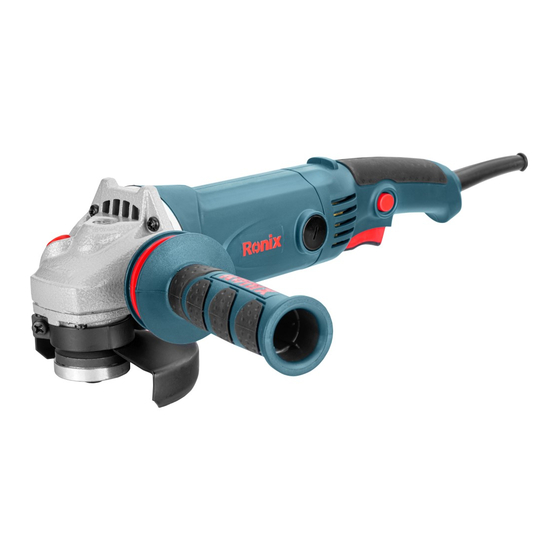

- Page 1 MINI ANGLE GRINDER 3150 N...
-
Page 2: Technical Specification
TECHNICAL SPECIFICATION Model 3150N Power 1050W Voltage-Frequency 220V-50Hz No Load Speed 11000RPM Cutting Disc Diameter 115mm Weight 2.35Kg Guard : Accessories Spanner: Side Handle:1pc PART LIST Locking Pin Switch Side Handle Protect Guard Cutting Blade WARNINNG! - When using electric tools,All the safety instructions shouhd always be observed to reduce the risk of fire, electric shock and personal injory before attempting to operate the tools, Please read all the instruction and save it FOR further refrence. - Page 3 BASIC SAFETY PRECAUTIONS FOR ALL ELECTRIC TOOLS KEEP WORK AREA CLEAN - Cluttered area and benches invite injuries. CONSIDER WORK AREA ENVIRONMENT - Don’t use electric tools in damp or wet locations . Don’t expose electric tools to rain. Keep work area well-lit in particular, no inflammable liquids or gases must be present. AVOID ELECTRIC SHOCK - when you are operating tools, don’t touch metal being grounded, such as pipe, radiator, freezer,etc.
- Page 4 parts. Rubber gloves and non-skid footwear are recommended when working outdoors. Wear protective hair covering to contain long hair. USE SAFETY GOGGLES - Always wear safety goggles. If dust is produced, use the special masks. DON’T ABUSE CABLES - Never carry tool by cable or yank it to disconnect it form socket. Keep cable from heat, oil and sharp edges.
-
Page 5: Stay Alert
STAY ALERT - Watch what you are doing . Use common sense. Do not operate tool when you are tired. CHECK DAMAGED PARTS - before further use of the tool, a guard or other parts that is damaged should be carefully checked to determine that it will operate properly and perform its intended function . -
Page 6: Operation Regulations
ADDITIONAL SAFETY REGULATIONS 1) operator is recommended to wear goggles when operating the tool. 2)When operating , the cable of the tool and its extended wire must be placed at the back side of the tool in order to avoid the cable or extended wire being damaged. 3) During operating don’t hit work piece with grinding disk, when the tool is used to cut small work piece, it mustn’t vacillate to the left and right in order to avoid disk being broken. - Page 7 The side handle can be installed easity in one of the holes on the side of the angle grinder.(Figure 1). DISK PROTECT GUARD WARNING! - Before Installing or disassembling the disc, Please make sure the switch is in “0” position and the plug is not connected with socket. To put the protruding position of protect guard into the slot an front cover, then turning 180 clockwise or anticlockwise.
- Page 8 HOW TO CHANGE THE DISC WARNING! - Before installing or disassembting the disc, please make sure the switch is “0” position and the plug is not connected with socket. - The max speed of the disc installing 4800 m/min. - Fixthe inner flange onto the spindle, then put the disc onto the inner flange.
- Page 9 WARNING! -the spindle lock is only used to install and disassemble the disc of the tool. It is prohibited from being used as a brake button when the tool is rotating. Otherwise the tool will be damaged and injury may occur to a person. SWITCHED “ON”AND”OFF”...
-
Page 10: Service And Maintenance
d)when using new disc,don’t move the tools in B direction , otherwise the work piece maybe cut off. After the disc become round , then the tools could be moved in both A and B directions. SERVICE AND MAINTENANCE 1)Always disconnect the tool before carrying out inspection or cleaning. Never use water or other liquids to clean the tool.
