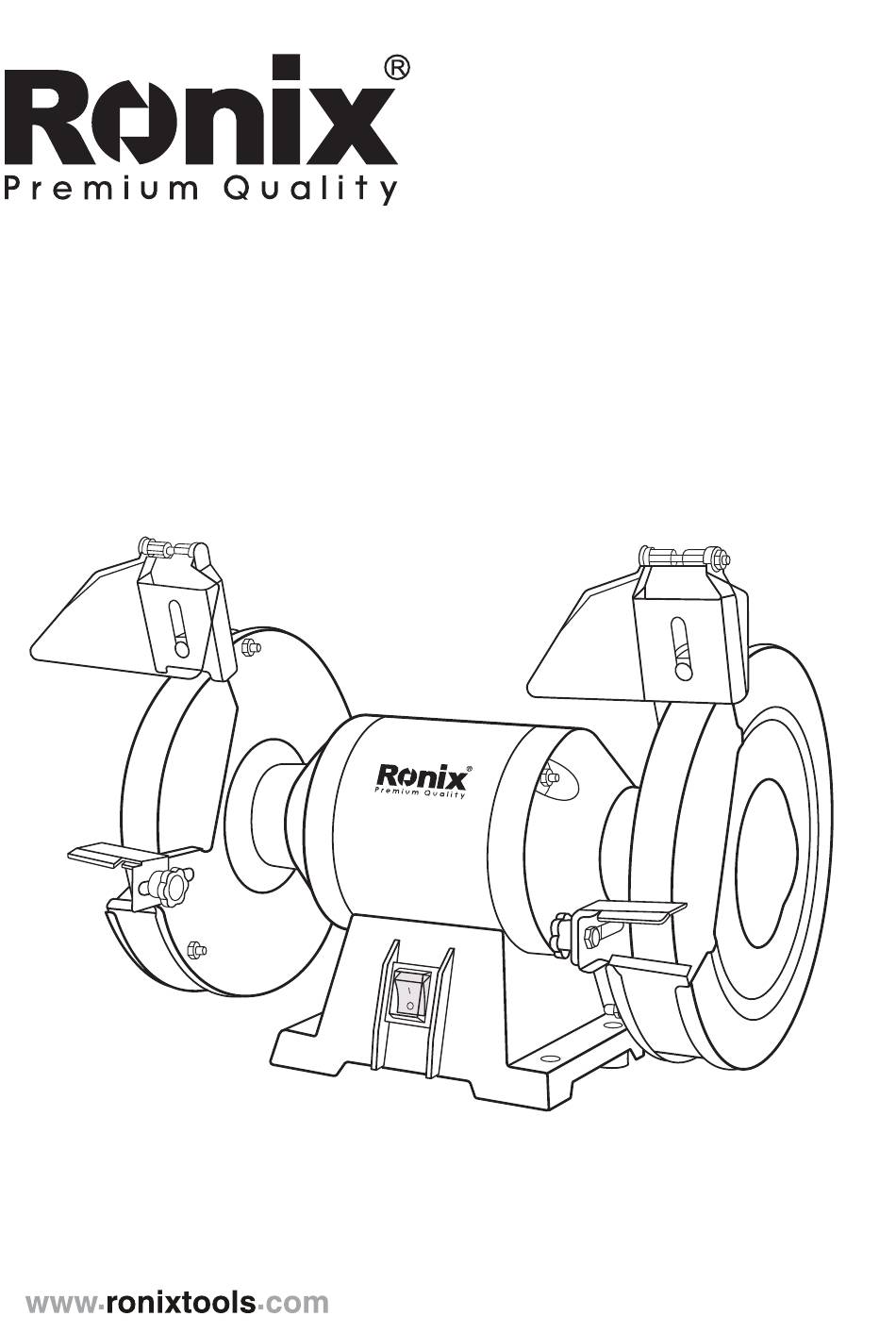

- Page 1 BENCH GRINDER 3502N...
-
Page 2: Technical Specification
No-Load Speed 2950RPM Disc size 200×25×16-32mm Supplied In Ronix color box PARTS LIST Eye Protector ORIGINAL INSTRUCTION Before using this bench grinder, please carefully read though these instructions. Ensure that you know how the machine works, and how it should... -
Page 3: General Power Tool Safety Warnings
be operated. Maintain the machine in accordance with the instructions, and make certain that the machine works correctly, please store this instruction and other enclosed documents with the machine together. APPLICATION This machine is applicable for sharpening cutting tools such as tool bits, drill bits, chisels, and gouges. -
Page 4: Work Area Safety
WARNING! - Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. - Save all warnings and instructions for future reference. - The term “power tool” in the warnings refers to your mains-operated (corded) power tool. -
Page 5: Personal Safety
the risk of electric shock. PERSONAL SAFETY - Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. -
Page 6: Additional Safety Rules For Bench Grinder
- Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. - Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. -
Page 7: Residual Risks
13- Use only accessories that are recommended by the manufacturer for your model. 14- Do not attempt to cut anything with the grinding wheel. 15- Any damage and abnormal happen, please stop to use immediately and disconnect it, ask authorized centers to check and repair. 16- Right use accessories and parts: Don’t use other parts and accessories which not mentioned in the manual otherwise may cause injuries! - Page 8 therein before set up use of this products. 1- Power source Ensure that the power source to be utilized conforms to the power requirements which specified on the name plate of the grinder. 2- Power switch Ensure that the power switch is in the position of OFF. If the plug is connected to power receptacle while the power switch is in ON position, the bench grinder will start operation immediately, which can cause serious accident!
-
Page 9: Switch Operation
guards. 2- Tighten the carriage bolt, leaving it loose enough to allow the safety shield to be raised and lowered easily. SWITCH OPERATION Observe correct mains voltage! The voltage of the power source must agree with the voltage specified on the type plate of the power tool. Switch ON: To start the power tool, Press switch towards “I”... -
Page 10: Warranty
behind the tool. 3-To install a new grinding wheel, reverse the above procedure. TOOL REST ADJUSTMENTS AND INSTALLATION Mount the tool resets to the work rest bracket using the knob and washers. Before tightening the knob, adjust the gap between the grinding wheel and the work rest to a maximum of 1/8(3.2mm). - Page 11 SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION 1.check power source for proper voltage. 1.Low Voltage. 2. inspect all lead connection on 2.Open circuit in motor Motor will not motor for loose or open connections. or loose connections. start. (send for servicing). 3.Blown fuse or 3.short circuit.(send for Servicing).
- Page 12 1.Ensure machine is securely moun 1.Machine vibrating. on a solid surface. Wary condition 2. Workpiece not being 2.Use a holding device to firmly retain on surface of held sirmly. the workpiece. workpiece. 3. Wheel face uneven. 3.Dress the grinding wheel. 4.Wheel is too hard.
