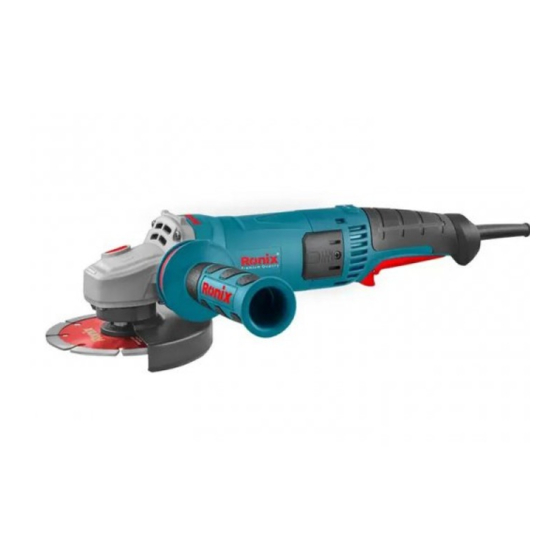

SPECIFICATION 3102-3102K Model Power 1200W Voltage 220-240V Frequency 50-60Hz No Load Speed 3000~11000RPM Disc Diameter 125mm Net. weight 2.2Kg Side handle, Accessories wheel guard PART LIST Locking Pin Cutting Blade Switch Side Handle Protect Guard USER MANUAL...
GENERAL SAFETY INSTRUCTIONS FOR ELECTRIC TOOLS This device is exclusively for private use! It is not fit for commercial use! WARNING! when working with electrical devices the following prevention and safety instructions are to be observed to avoid fires, electric shocks and physical injuries: FOR SAFE WORKING: - Keep the working area in order!
Page 5
purposes or jobs for which these are not intended. For example, hand circular saws are not be used to cut trees or branches! Always wear suitable working cloths! - Do not wear baggy cloths or jewellery! Risk of being caught by moving parts! - When working outside, it is advisable to wear rubber gloves and skid-proof shoes!
Page 6
- Make sure that the switch is off when connecting to the mains! Extension cable outdoors: Use only certified and duly marked extension cables outdoors! - Always be careful! Pay attention to your work! Proceed carefully. Do not use the tool if you are not concentrated! - Check the tool for damages! - Before using the tool the next time check that the protection devices or slightly damaged parts are in good working conditions! Check whether...
HEARING PROTECTION - In case of a sound pressure greater than 85.0 dB(A) wear hearing protection to avoid damage to your hearing! SPECIAL SAFETY INSTRUCTIONS - Do not use the machine without the protective cover! Ensure that this is titted correctly! - Check whether the mounting flanges and the disk have been inserted correctly and are not damaged! - Ensure that the speed of the machine is suitable for the accessories.
Page 8
CORRECT FITTING OF THE PROTECTIVE DEVICE Ensure that the protective cover (6) is fitted correctly and that the fixing screws have been tightened! Before tightening the fixing screws, turn the on and off switch to the position and remove the mains plug! Grinding and Surface Processing In order to grind surfaces you should use a coarse abrasive disk with a sunken centre.
Page 9
inserted with the flat side pointing towards the wheel. 5- Depress and hold the lock button so that cannot turn and then tighten the external flange with the external flange spanner. ABRASIVE DISKS - Ensure that the speed to which the machine is set is sufficient for the accessories chosen.
MAINTENANCE - The protective cover, air slits and motor housing should be kept as free of dirt and dust as possible. - Rub off the device with a clean cloth or use compressed air at a low pressure to blow out any dust or dirt. Excessive amounts of metal dust may result in electricity from the internal components being conducted on to exposed metal parts! - Do not subject the grinding machine to any overload! Overloading...
Page 11
To maintain product SAFETY and RELIABILITY, repairs, carbon brush inspection and replacement, any other maintenance or adjustment should be performed by RONIX SERVICE Authorized or RONIX SERVICE Centers, always using RONIX SERVICE replacement parts. USER MANUAL...
