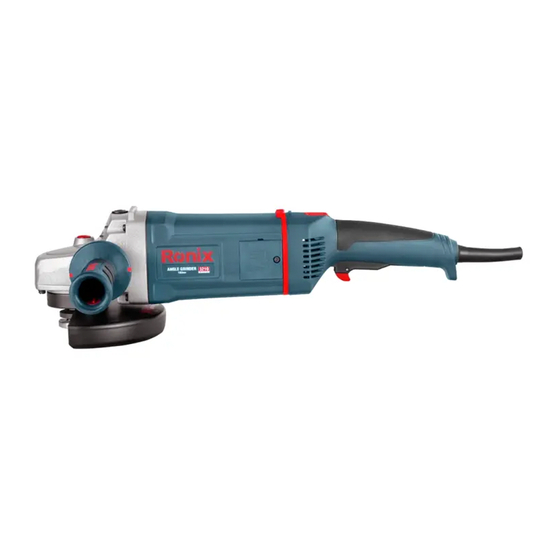

ANGLE GRINDER
3210

Advertisement

Table of Contents
loading

Related Manuals for Ronix 3210

Summary of Contents for Ronix 3210

  • Page 1 ANGLE GRINDER 3210...

  • Page 2: Technical Specification

    TECHNICAL SPECIFICATION Model 3210 Power 2400W Voltage 220V Frequency 50Hz No Load Speed 8000RPM Cutting Disc Diameter 180mm Weight 5.5Kg Guard : 1pc Accessories Spanner: 1pc Side Handle:1pc PART LIST Locking Pin Cutting Blade Switch Side Handle Protect Guard WARNINNG!
  • Page 3 CONSIDER WORK AREA ENVIRONMENT - Don’t use electric tools in damp or wet locations . Don’t expose electric tools to rain. Keep work area well-lit in particular, no inflammable liquids or gases must be present. AVOID ELECTRIC SHOCK - when you are operating tools, don’t touch metal being grounded, such as pipe, radiator, freezer,etc.

  • Page 4: Stay Alert

    DON’T ABUSE CABLES - Never carry tool by cable or yank it to disconnect it form socket. Keep cable from heat, oil and sharp edges. DON’T OVERREACH - Keep proper footing and balance at all times. MAINTAIN TOOLS WITH CARE - Keep tools sharp and clean for better and safer performance.

  • Page 5: Replace Parts

    CHECK DAMAGED PARTS - before further use of the tool, a guard or other parts that is damaged should be carefully checked to determine that it will operate properly and perform its intended function . Check for alignment of moving parts, binding of moving parts, breakage of parts,mounting and any other condition that may affect its operations.

  • Page 6: Operation Regulations

    placed at the back side of the tool in order to avoid the cable or extended wire being damaged. 3) During operating don’t hit work piece with grinding disk, when the tool is used to cut small work piece, it mustn’t vacillate to the left and right in order to avoid disk being broken.
  • Page 7 DISK PROTECT GUARD WARNING! - Before Installing or disassembling the disc, Please make sure the switch is in “0” position and the plug is not connected with socket. To put the protruding position of protect guard into the slot an front cover, then turning 180 clockwise or anticlockwise.
  • Page 8 HOW TO CHANGE THE DISC WARNING! - Before installing or disassembting the disc, please make sure the switch is “0” position and the plug is not connected with socket. - The max speed of the disc installing 4800 m/min. - Fixthe inner flange onto the spindle, then put the disc onto the inner flange.
  • Page 9 WARNING! -the spindle lock is only used to install and disassemble the disc of the tool. It is prohibited from being used as a brake button when the tool is rotating. Otherwise the tool will be damaged and injury may occur to a person. SWITCHED “ON”AND”OFF”...

  • Page 10: Service And Maintenance

    d)when using new disc,don’t move the tools in B direction , otherwise the work piece maybe cut off. After the disc become round , then the tools could be moved in both A and B directions. SERVICE AND MAINTENANCE 1)Always disconnect the tool before carrying out inspection or cleaning .
