CommScope PPL-SP-16LC-SM-RPT-BEU Quick Start

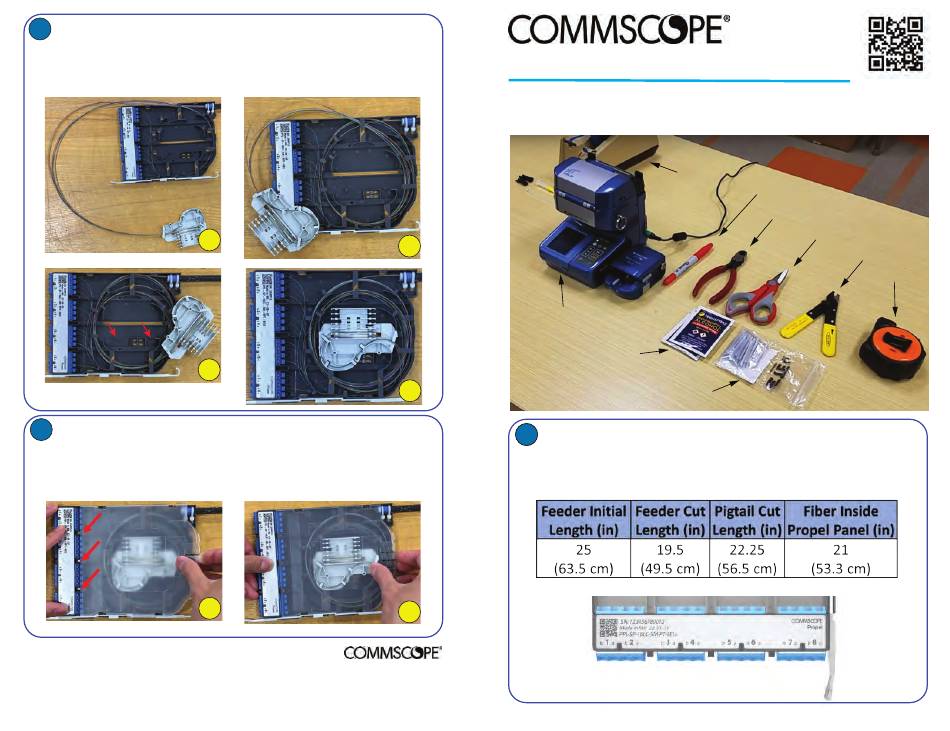

Route fibers into base
10
(a) Position spool to prepare for routing. (b) Route pigtail and feeder fibers
counterclockwise starting along the outer walls and working towards the
center of the cassette. (c) Line up the pegs on the cassette base with the
mounting holes on the spool to finish routing. (d) Insert spool into base
and ensure all fibers are under retaining fingers.
Apply Cover
11
(a) Line the tabs on the cover with the slots near the front of the cassette base.
(b) Lay the cover flat on the base and ensure all the tabs on the side of the
cover and bases are lined up. With one hand holding the cassette base, push
cover forward with other hand to engage tabs. Double check the rear tab is
also engaged to prevent the cover from sliding off.
Page 4 of 4
a
c
a
Product Information
http://www.commscope.com
Product Information
http://www.commscope.com/
TC-96372-IP · Rev B · September, 2023
8 Port Mass Fusion Splice Cassette for
b
FIBER FUSION SPLICER
AND CLEAVER
d
Prepare cable for mass fiber splice cassette installation.
1
Refer to Table 1 for Feeder and Pigtail Lengths. "Feeder Initial Length" is the
recommended length of fiber to bring into the cassette. "Feeder Cut Length"
and "Pigtail Cut Length" is measured from the front of the cassette and is the
recommended cut length for the initial splice. A maximum of (1) rework is
allowed per splice.
b
SupportCenter
29009-B 660106107 Rev B
Propel Panel
Tools and Materials Required
TAPE
MARKER
SMALL SIDE CUTTER
.
ISOPROPYL
ALCOHOL
INCLUDED:
SPLICE PROTECTORS
(40 mm LONG)
and CABLE TIES
(30 - 40 mm LONG)
Table 1: Pigtail and Feeder Lengths
8 Port Cassette, shown above
© 2023, CommScope, Inc. All Rights Reserved.
Quick
Start
PROPEL
PRODUCT PAGE
QR CODE
FIBER SCISSORS
STRIPPER
TAPE
MEASURE
Page 1 of 4
