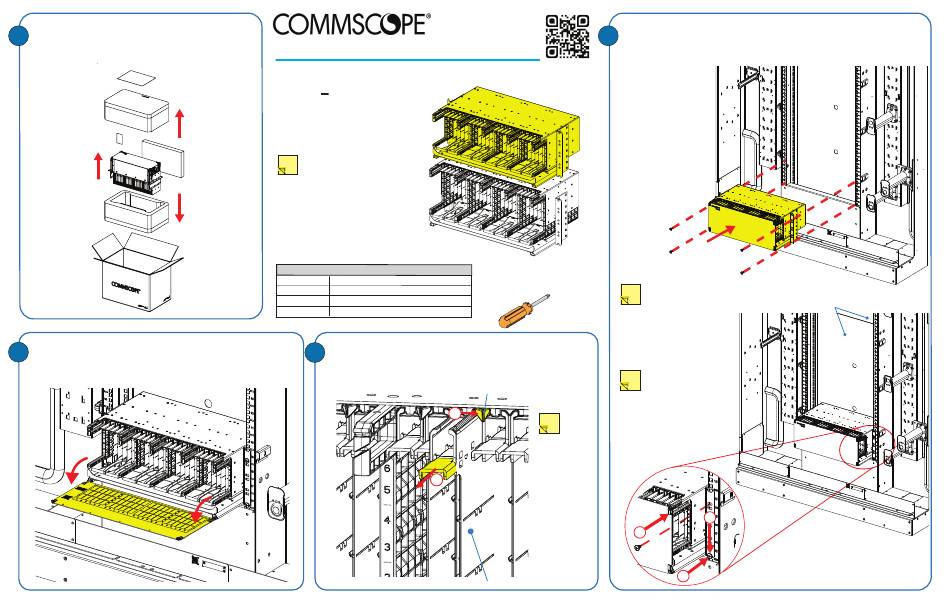

Removing Panel from Box
1
Open the box and remove the Propel panel and other
items. Separate foam from panel. Check the Parts List
to ensure all items are present. Recycle packaging.
Opening and Closing Panel
3
Grasp front cover at upper outside corner on each side and pull it out
allowing it to swing down. To close cover, swing it up until it clicks into
place.
860682654 REV A
TC-01001513-IP · Rev A · November 2024
Propel Front Access
Panel Vertical
Cable Management
(VCM)
NOTE:
NOTE:
In most illustrations,
this document shows
the 4RU panel (highlighted
in yellow at right).
5RU is similar in function.
PARTS LIST
QUANTITY
DESCRIPTION
1
PROPEL FA-VCM PANEL (4RU OR 5RU SIZE)
1
PANEL FASTENER PACK
1
THESE INSTRUCTIONS
Removing Cartridge from Panel
4
To remove a cartridge from the panel, (a) deflect the adjacent latch to
the side away from the cartridge, then (b) grasp and pull the cartridge
out until it is freed from its panel track.
a
b
CommScope (logo) and CommScope are trademarks.
Quick
Mounting Panel on Frame
2
Start
Mount the panel by installing the provided cage nuts in the rack. Fasten the
provided mounting screws through the panel mounting bracket and into the cage
nut locations.
PRODUCT INFO
Do not fasten the panel
using the top U-shaped
PPL-FA-4U-VCM
hole on the mounting
bracket. Use the top
most full hole instead.
PPL-FA-5U-VCM
IMPORTANT: Propel
NOTE:
NOTE:
Required
XFrame Rear Covers
Tool
cannot be assembled
or removed with
#2 PHILLIPS
Panels installed.
SCREWDRIVER
Fully assemble and
secure Frame before
mounting Panels.
NOTE:
NOTE:
LATCH
For easier installation,
if space permits, (a)
install bottom screws
NOTE:
NOTE:
first, and (b) set the
panel on top of them
while (c) installing the
Each latch
top two screws.
secures two
cartridges. To
remove the
cartridge on
the left,
deflect the
latch to the
right. To
remove the
cartridge on
c
the right,
deflect the
latch to the
left.
CARTRIDGE
Propel XFrame
Rear Covers (2)
b
Panel shown mounted in
Propel XFrame
a
© 2024, CommScope, Inc. All Rights Reserved.
