- Page 1 Rev. 905-0273-G0 3G-SDI/HD-SDI FULL HD CMOS Color Camera VCC-HD5 Product Specifications & Operational Manual CIS Corporation ©2023 CIS Corporation. All rights reserved.
-
Page 2: Table Of Contents
Indication of OSD Menu ........................... 21 6.3. OSD Menu Hierarchical Structure ......................21 Dimensions ............................... 23 Warranty Policy, etc............................24 8.1. Product Warranty ............................ 24 8.2. CMOS Pixel Defects ..........................24 8.3. Product Services ............................. 24 ©2023 CIS Corporation. All rights reserved. -
Page 3: Handling Precautions
□ Since this camera VCC-HD5 is small in size, the housing temperature will be high. We recommend you to take measures to dissipate the heat, such as mounting the camera on a metal plate etc. -
Page 4: Product Overview

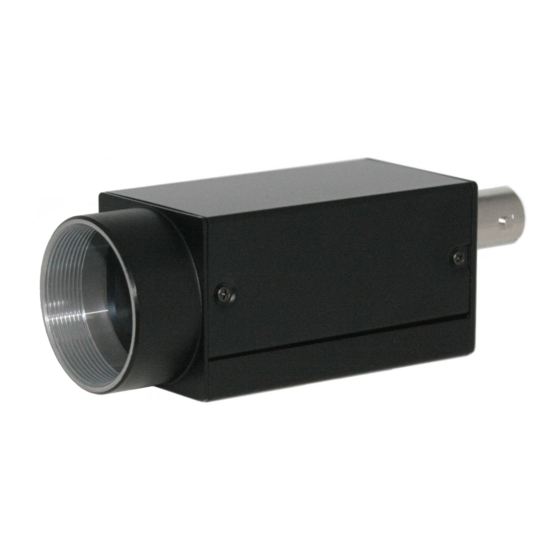

VCC-HD5 Rev. 905-0273-G0 Product Overview VCC-HD5 is an ultra-compact FULL HD color camera using a 1/1.8 type global shutter CMOS image sensor. Features CIS's proprietary ISP, “Clairvu™” image processing engine, for superior image quality and high-speed processing. Supports AE, auto white balance, color correction, edge enhancement, noise reduction, gamma, genlock, external sync and other functions. -
Page 5: Electrical Specifications
PRESET : Custom (Color temperature settings), Tungsten(3200K), Daylight(5500K), Cloudy(6500K), Shade(8000K) DC IRIS output Auto/Open selectable. Can be used with electric shutter. (with priority over electric shutter) Auto exposure detection Average, Center-Weighted, Spot, Backlight Compensation ©2023 CIS Corporation. All rights reserved. -
Page 6: Mechanical Specifications
RU-100. Power requirements DC+9~+15V Power consumption 3.5W Mechanical Specifications Dimensions Refer to the camera dimensional drawing in Section Weight Approx. 80 g Lens mount C mount ※Refer to the camera dimensional drawing in Section ©2023 CIS Corporation. All rights reserved. - Page 7 Depending on the 3G-SDI receiver, there are some that support only Level A, some that support only Level B, and some that support both Level A and B. Therefore, please set the camera mode according to the 3G-SDI receiver you are using. ©2023 CIS Corporation. All rights reserved.
-
Page 8: Part Names And Functions
Connect according to the external connection connector specifications. Refer to the separate document for the communication method. ※Do not connect audio equipment such as earphones, etc., as it may damage the connected equipment. ⑥ Screw holes for camera installation ©2023 CIS Corporation. All rights reserved. -
Page 9: External Connector Specifications
φ3.5mm 4-pole (RS-232C) Connector Part name: M03-A41A0 (Marushin Electric Mfg.) Signal Name Power(+5V) *for optional use TXD(Camera) RXD(Camera) φ3.5(4-pole) connector (RS-232C) connection method N.C. N.C. 9 p in D -S u b(f e m ale ) ©2023 CIS Corporation. All rights reserved. -
Page 10: Camera Functions
00:00:00.00 when the power is ON, but is set to the external time code when a signal is input to the LTC IN pin. In this state, when the signal at the LTC IN terminal is lost, internal time code starts with the set time code. Signal format: SMPTE Timecode Signal level: 0.5~2 [Vp-p] ©2023 CIS Corporation. All rights reserved. -
Page 11: Defective Pixel Correction
4.3. Defective Pixel Correction CIS applies defective pixel correction to the pixel defects caused by the image sensor prior to shipment of the product. User can also add and delete the defective pixel information. User can obtain correction data separately in the forward and reverse directions of the V Flip, and is automatically switched according to the V Flip setting. -
Page 12: How To Change The Baud Rate
Baud Rate command is not subject to Camera Setting Store/Load command (SU 100/101). (User cannot switch four types of correction data.) If the baud rate is set other than 9600 bps, the RU-100 remote controller becomes invalid. ©2023 CIS Corporation. All rights reserved. -
Page 13: Command List
Ex) To set Max=1/60s and Min=1/8000s: The 2 Param: Min value 0x4D SU 7 0x4444 0x83 Exposure time [s]×0x100000 (77) ※Refer to Section 5.3.2. Quick Reference Table for Setting range: Same as Max value. 1/13600s Shutter Settings. ©2023 CIS Corporation. All rights reserved. - Page 14 (*1) Gain and shutter controls are handled based on sensor/circuit specifications. For this reason, it may not be possible to control as per the Value and Limit set by the command. User can check the actual control value with the Current Gain or Current Shutter command. ©2023 CIS Corporation. All rights reserved.
- Page 15 Set the amount of shift of WB gain toward green WB CC Shift -10~10 magenta. Current Red Gain None None Obtain the current Red Gain. (Dedicated to GU) Current Blue Gain None None Obtain the current Blue Gain. (Dedicated to GU) ©2023 CIS Corporation. All rights reserved.
- Page 16 [HLG] Input range when input is 100% with output when 50%. BT.709 Equivalent to 1200% when (*2)The setting equivalent to VCC-HD3N is Low. Please note that since the default setting is Normal, the noise and sensitivity will be different. ©2023 CIS Corporation. All rights reserved.
- Page 17 1: Standard Color Correction Set the color correction. 2: Fluorescent Light 3: Tungsten Lamp 0: Off Color Suppression Set the color saturation suppression. 1(Low)~7(High) 0: BT.709 Color Space Set the color gamut. 1: BT.2020 ©2023 CIS Corporation. All rights reserved.
- Page 18 If user sets the same color as Text Color, an error will 4: Green occur because the selected text cannot be 5: Cyan distinguished. 6: Yellow 7: White OSD Off 1 (Fixed) None Close the OSD menu. (Dedicated to SU) ©2023 CIS Corporation. All rights reserved.
- Page 19 Obtain version information. (Dedicated Version Information version None to GU) 2: FPGA version 9600, 38400, 115200 Set the serial communication speed. Refer to Section Baud Rate 9600 (bps) 5.1.1 How to Change the Baud Rate. ©2023 CIS Corporation. All rights reserved.
- Page 20 attribute. Only user-registered data can be changed with the above commands; factory data is not affected. Pixels that have already been registered as factory data cannot be registered as user-registered data. ©2023 CIS Corporation. All rights reserved.
-
Page 21: Quick Reference Table
6658043 006597FB 114.035 41.141 7473400 007208F8 128.000 42.144 8388608 00800000 143.675 43.148 9415894 008FACD6 161.270 44.151 10568984 00A14518 181.019 45.154 11863283 00B504F3 203.187 46.158 13316085 00CB2FF5 228.070 47.161 14946800 00E411F0 251.189 48.000 16461899 00FB304B ©2023 CIS Corporation. All rights reserved. -
Page 22: Quick Reference Table For Shutter Settings
Pressing this button when the OSD menu is hidden will display the OSD top [CENTER] menu on the monitor. It is also used to confirm the selected menu item. [▲] Move up. [▼] Move down. Change the option of the item. Change the option of the item. ©2023 CIS Corporation. All rights reserved. -
Page 23: Indication Of Osd Menu
┃ ┣ Green Balance ┃ ┣ Blue Balance ┃ ┣ Master Pedestal ┃ ┣ Red Pedestal ┃ ┣ Green Pedestal ┃ ┣ Blue Pedestal ┃ ┣ Detail ┃ ┣ Gamma ┃ ┣ Knee ┃ ©2023 CIS Corporation. All rights reserved. - Page 24 ┣ Test Pattern ┃ ┣ Position X ┃ ┗ Position Y ┃ ┣ OSD Color ┣ OSD Color (Text/Highlight) ┃ ┗ Default ┃ ┗ Save/Load/Init ┣ Save Settings ┣ Load Settings ┗ Init Settings ©2023 CIS Corporation. All rights reserved.
-
Page 25: Dimensions
VCC-HD5 Rev. 905-0273-G0 Dimensions 935-xxx-xx (Unit: mm) ©2023 CIS Corporation. All rights reserved. -
Page 26: Warranty Policy, Etc
CIS applies defective pixel correction prior to shipment of the product. However, the number of defective pixels are subject to increase due primarily to the effect of cosmic rays. Due to this nature, CIS should not hold responsible for the natural increase of defective pixels.
