Summary of Contents for Vivo STAND-V202L

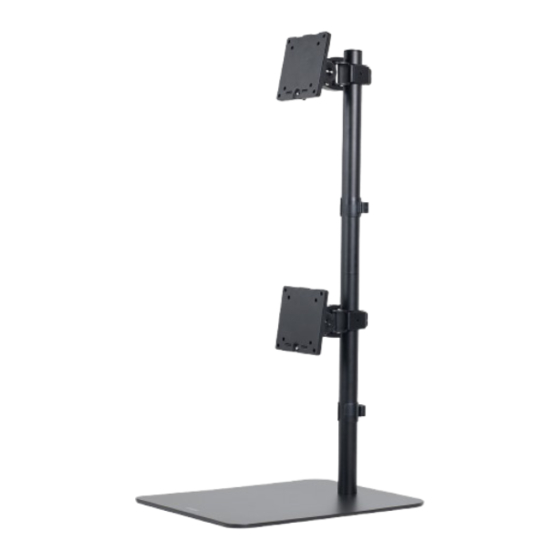

- Page 1 Dual Ultrawide Vertical Monitor Desk Stand SKU: STAND-V202L Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/stand-v202l...
- Page 2 [ THIS PAGE INTENTIONALLY LEFT BLANK ]...
- Page 3 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 4 Package Contents A (x2) B (x1) C (x1) D (x1) VESA Bracket Base Lower Pole Upper Pole E (x1) F (x4) G (x2) Pole Cap Pads Cable Clip Included Hardware & Tools S-A (x3) M6x16mm Screw T-B (x1) T-A (x1) 6mm Allen 4mm Allen Wrench...
- Page 5 ASSEMBLY STEPS STEP 1 Press Pole Cap (E) into Pole (D), using the side without internal threading . STEP 2 Install Pole (C) to Base (B) using M6x16mm Screws (S-A) and 4mm Allen Wrench (T-A). Remove protective film from Pads (F) and apply them to Base (B) as shown.
- Page 6 STEP 3 Slide Pole Cable Clip (G) and one of the VESA Brackets (A) onto the Lower Pole (C). Adjust the height location of the VESA Bracket and tighten using the 6mm Allen Wrench (T-B).
- Page 7 STEP 4 Screw the Upper Pole (D) onto the Lower Pole (C). Slide the remaining Pole Cable Clip (G) and VESA Bracket (A) onto the Upper Pole. Adjust the height location of the VESA Bracket and tighten using the 6mm Allen Wrench (T-B).
- Page 8 STEP 5 Loosen the Thumbscrew (A2) on the back of both VESA Brackets (A1), then separate and remove VESA Plates (A3) by pulling out and sliding upwards. Install the VESA Plates (A3) onto the back of your monitors using M4x12mm Screws (M-A) or M5x12mm Screws (M-B) and M5 Washers (M-C), orienting the arrow on the VESA Plates pointing up.
- Page 9 STEP 6 Adjusting the Tilt Joint Adjustment Screw Loosen Tilt Joint Use 6mm Allen Wrench (T-B) to loosen the Tilt Joint Adjustment Screw, located on the side of VESA Bracket (A1). Set Angle Firmly grip the VESA Bracket and adjust to your desired viewing angle, and hold in place.
- Page 10 STEP 7 With the assistance of a second person, line up the VESA Plates (A3) on your monitors with the VESA Bracket (A1) and the Plate Hooks into the pockets of the VESA Brackets. Monitor & VESA Brackets may need to be angled backwards slightly when sliding on. 2 Person Mounting is Recommended *Monitor &...
- Page 11 Fine Tune Tilt Angle If the monitor is angled further than intended... Heavy Weighted/ Ultrawide Monitors [ 22lbs - 44lbs ] Firmly Hold Monitor Firmly grasp and hold the monitor in place. Do NOT release monitor until you have completed steps below. Loosen Tilt Joint With a hand still on the monitor, use 6mm Allen Wrench (T-B) to loosen the...
- Page 12 STEP 8 Route cables through Pole Cable Clip (G) and store Allen Wrenches (T-A, T-B) in the provided slots. STEP 9 Make adjustments as desired on swivel and orientation.
- Page 13 If you are using the stand with the clamp, do NOT extend the arm past the back of the clamp to prevent possible damage to your monitor and stand.
- Page 14 Adjust Monitors as Desired If further height adjustment is needed, use 6mm Allen Wrench (T-B) to loosen VESA Bracket (A) and adjust height, then tighten Bracket again to secure.
- Page 15 [ THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK ]...
- Page 16 LAST UPDATED: 04/11/24 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
