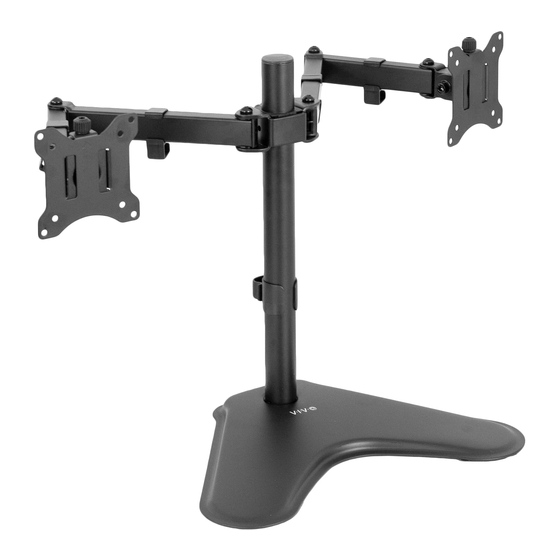

Dual Monitor Desk Stand
Instruction Manual
SKU: STAND-V200F
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v200f
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo STAND-V200F
Summary of Contents for Vivo STAND-V200F
- Page 1 Dual Monitor Desk Stand Instruction Manual SKU: STAND-V200F Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v200f GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED 17.6lbs DO NOT EXCEED WEIGHT CAPACITY. (8kg) Failure to do so may result in serious injury. PER ARM Phillips Screwdriver ASSEMBLY STEPS STEP 1 Attach the pole cap (G) to the top of the pole (C). STEP 2 Attach the pole (C) to the base (A) using M6x12 bolts (H) and tighten using the 4mm Allen wrench (K).
- Page 4 STEP 3 Slide the pole cable clip (E) and arm (B) onto the pole (C) and tighten using the 6mm Allen wrench (L). Attach the arm cable clips (F) to the arm (B). STEP 4 OPTION A: Flat Back Monitor Attach the VESA plates (D) to the monitors using bolts (M-A or M-C) and washers (M-E).
- Page 5 STEP 4 (Continued) OPTION B: Curved Back Monitor Attach the VESA plates (D) to the monitors using bolts (M-B or M-D), washers (M-E) and spacers (M-F). Tighten with a Phillips screwdriver. STEP 5 Slide the VESA plates (D) onto the arm (B) and secure using the knobs (J) with M3x8 bolts (I).
- Page 6 STEP 6 Tighten or loosen the tilt joint using the 6mm Allen wrench (L). STEP 7 Route cables through the cable management clips.
- Page 7 STEP 8 CAUTION: To prevent tipping, please be careful not to extend the arms too far forward or backward. Adjust as Desired Turn the knobs (J) by hand or using the 6mm Allen wrench (L) to adjust the monitor height for leveling.
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! AVG. RESOLUTION TIME : 5M 4S 309-278-5303 (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
