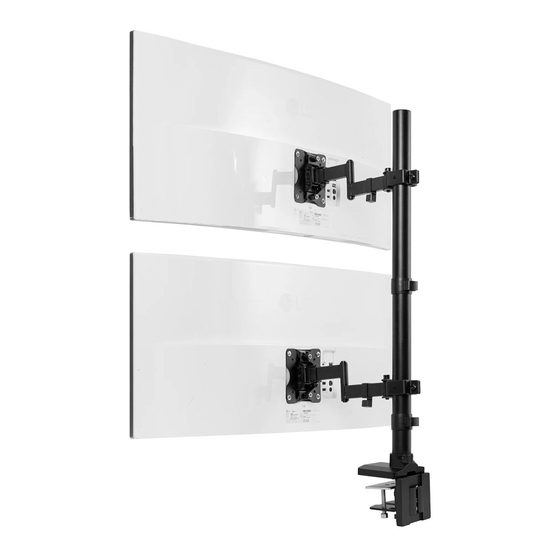

Dual Ultrawide Vertical Monitor Desk Mount
Instruction Manual
SKU: STAND-V200T
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v200t
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo STAND-V200T
Summary of Contents for Vivo STAND-V200T
- Page 1 Dual Ultrawide Vertical Monitor Desk Mount Instruction Manual SKU: STAND-V200T Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v200t GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 - Option A - Clamp Connect Clamp Brace (K) to Base (A) using M6x12mm Screws (S-B) and 4mm Allen Wrench (T-A). Remove protective film from Soft Pad (I) and apply to the underside of Clamp Brace (K). Loosen the screws on the back of Lower Clamp (L) using 4mm Allen Wrench (T-A), leaving 6mm of thread exposed. - Page 4 STEP 1 - Option B - Grommet Attach Grommet Plate (H) to Base (A) using M6x12mm Screws (S-B) and 4mm Allen Wrench (T-A). Remove protective film from Soft Pad (I) and apply to the underside of Grommet Plate (H). Position Base (A) over grommet hole in desk. If there is no existing grommet hole, drill a 0.375” (10mm) hole through the desktop in the desired mounting position.
- Page 5 STEP 3 Slide one Arm (B) onto Lower Pole (C) and secure using 6mm Allen Wrench (T-B). Thread Upper Pole (D) onto Lower Pole (C). Attach Pole Cable Clip (M) to Upper Pole (D). STEP 4 Slide remaining Arm (B) onto Upper Pole (D) and tighten to the pole using 6mm Allen Wrench (T-B). Attach Cable Clips (F) to Arms (B).
- Page 6 STEP 5 Install VESA Plate (E) to your monitor using appropriate Screws (M-A, M-B), M5 Washer (M-C) and a Phillips screwdriver. STEP 6 Partially install one Wing Nut (S-A) to the top screw on VESA Plate (E) on monitor and hang over the slot in the top of Arm (B).
-
Page 7: Cable Management
Adjust as Desired Adjust the tilt support screws using 4mm Allen Wrench (T-A) and swivel joints using Wrench (T-C). Cable Management Organize cables using Cable Clips (F), Pole Cable Clips (M), and Cover (J). - Page 8 AVG. RESPONSE TIME (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
