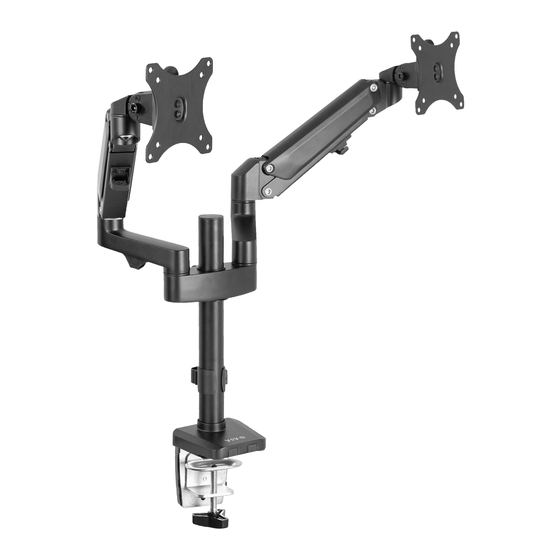

Pneumatic Arm Dual Monitor Desk Mount
Instruction Manual
SKU: STAND-V200G
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v200g
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo STAND-V200G
Summary of Contents for Vivo STAND-V200G
- Page 1 Pneumatic Arm Dual Monitor Desk Mount Instruction Manual SKU: STAND-V200G Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v200g GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury.
- Page 3 ASSEMBLY STEPS STEP 1 OPTION A: Clamp Installation Attach the pole (C) to the base (D) using M6x16mm bolts (M) and tighten with the 4mm Allen wrench (R). Attach clamp brace (E) to the base using M6x12mm bolts (N), and tighten with the 4mm Allen wrench (R). Apply pads (P) to each corner of the base.
- Page 4 STEP 2 Slide the cable clip (Q) and arm (A) down onto the pole. Tighten the arm to the pole using the 6mm Allen wrench (S). STEP 3 Attach the VESA plates (B) to the monitor using bolts (M-A or M-B) with washers (M-C), making sure the arrow is facing towards the top of the monitor, and tighten with a Phillips screwdriver.
- Page 5 STEP 4 Pull back the release lever on the support bracket, then place the monitor with VESA plate (B) into the support. STEP 5 If needed, adjust the gas spring in each arm (A) to support the monitors using the 6mm Allen wrench (S). While holding the arm in the straight forward position, turn the screw in back clockwise to decrease support, and counter- clockwise to increase.
- Page 6 STEP 6 Use the cable clips on the arms and pole to organize cables. STEP 7 Adjust tilt support by turning the bolt on the side of each tilt joint using the 6mm Allen wrench (S).
