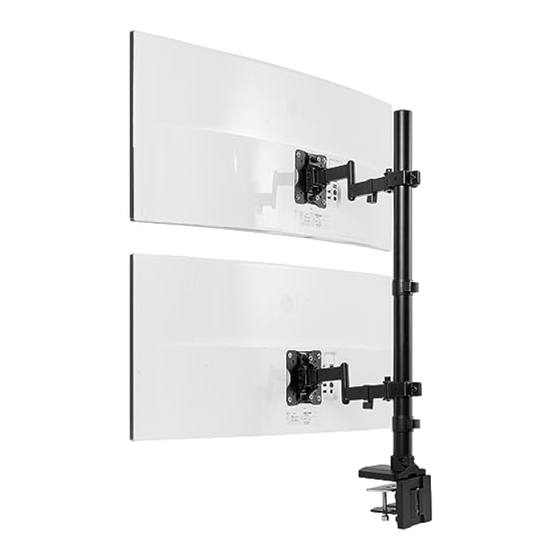

- Page 1 Dual Ultrawide Vertical Monitor Desk Mount SKU: STAND-V202T Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/stand-v202t...
- Page 2 [ THIS PAGE INTENTIONALLY LEFT BLANK ]...
- Page 3 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 4 Package Contents A (x1) B (x2) C (x1) D (x1) E (x2 ) Lower Pole Upper Pole VESA Plate Base F (x2) G (x1) H (x1) I (x1) J (x1) Cable Clip Clamp Plate Grommet Plate Soft Pad Cover K (x1) L (x1) M (x2) Clamp Brace...
- Page 5 ASSEMBLY STEPS STEP 1a Option A - Clamp Connect Clamp Brace (K) to Base (A) using M6x12mm Screws (S-B) and 4mm Allen Wrench (T-A). Remove protective film from Soft Pad (I) and apply to the underside of Clamp Brace (K). Loosen the screws on the back of Lower Clamp (L) using 4mm Allen Wrench (T-A), leaving 6mm of thread exposed.
- Page 6 Option A - Clamp - Cont’d 0.4” to 2.25” (10mm-58mm) 2” to 3.35” (50mm-85mm) Desktop Thickness Desk Thickness Slide Lower Clamp (L) into the top Slide Lower Clamp (L) into the lower 4 4 slots on Clamp Brace (K). slots on Clamp Brace (K). Tighten rear screws with 4mm Allen Tighten rear screws with 4mm Allen Wrench (T-A).
- Page 7 Option A - Clamp - Cont’d Install clamp assembly to desk and tighten clamp bolt using 6mm Allen Wrench (T-B). Snap Cover (J) onto the back of assembled base. Proceed to STEP 2 on pg 8...
- Page 8 STEP 1b Option B - Grommet Attach Grommet Plate (H) to Base (A) using M6x12mm Screws (S-B) and 4mm Allen Wrench (T-A). Remove protective film from Soft Pad (I) and apply to the underside of Grommet Plate (H). Position Base (A) over grommet hole in desk. Remove a single clamp bolt from Lower Clamp (L) using 6mm Allen Wrench (T-B).
- Page 9 STEP 2 Screw Lower Pole (C) into Base (A), and tighten set screws using 4mm Allen Wrench (T-A). Slide Pole Cable Clip (M) onto Lower Pole (C). STEP 3 Slide one Arm (B) onto Lower Pole (C) and secure using 6mm Allen Wrench (T-B).
- Page 10 STEP 4 Thread Upper Pole (D) onto Lower Pole (C). Attach Pole Cable Clip (M) to Upper Pole (D). Slide remaining Arm (B) onto Upper Pole (D) and tighten to the pole using 6mm Allen Wrench (T-B).Attach Cable Clips (F) to Arms (B).
- Page 11 STEP 5 Securing VESA Plate to Monitors Flat Back Monitors Install VESA Plate (E) to your monitor using appropriate Screws (M-A thru M-D), M5 Washer (M-E) and a Phillips screwdriver. If needed, Spacers (M-F) are provided. Mounting Hardware Combinations...
- Page 12 Recessed Mounting Pocked & Curved Screens Install VESA Plate (E) to your monitor using appropriate Screws (M-A thru M-D), M5 Washer (M-E), Spacers (M-F), and a Phillips screwdriver. Recessed Mounting Pocket Mounting Hardware Combinations...
- Page 13 STEP 6 Partially install one Wing Nut (S-A) to the top screw on VESA Plate (E) on monitor and hang over the slot in the top of Arm (B). Install the second Wing Nut (S-A) to the lower screw on VESA Plate (E).
- Page 14 Adjust as Desired Adjust the tilt support screws using 4mm Allen Wrench (T-A) and swivel joints using Wrench (T-C). Cable Management Organize cables using Cable Clips (F), Pole Cable Clips (M), and Cover (J).
- Page 15 [ THIS PAGE INTENTIONALLY LEFT BLANK ]...
- Page 16 LAST UPDATED: 04/17/24 REV2 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
