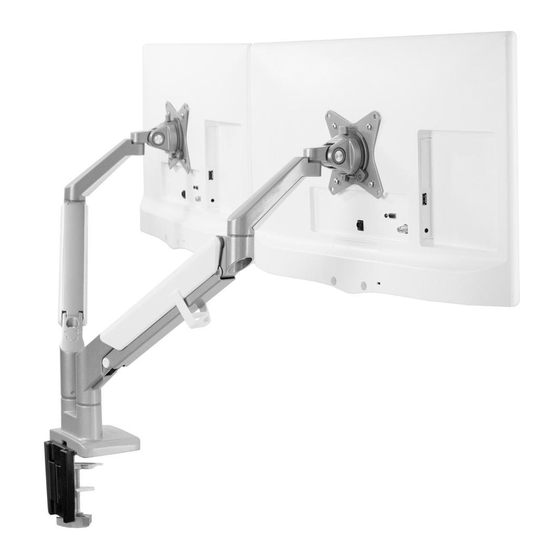

Silver Pneumatic Arm Dual Monitor Desk Mount
Instruction Manual
SKU: STAND-V200A
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v200a
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V200A
Summary of Contents for Vivo STAND-V200A
- Page 1 Silver Pneumatic Arm Dual Monitor Desk Mount Instruction Manual SKU: STAND-V200A Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v200a GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury.
- Page 3 ASSEMBLY STEPS STEP 1 OPTION A: Clamp Installation Attach clamp brace (B) to the base of the arm (A) using M6x8mm bolts (F), and tighten with the 4mm Allen wrench (N). Apply pads (G) to each corner of the base. For 3/8”...
- Page 4 STEP 2 Attach the VESA plates (E) to the monitors using bolts (M-A or M-B) with washers (M-C), making sure the knob on each is facing towards the top of the monitor, and tighten with a Phillips screwdriver. STEP 3 Slide the VESA plates (E) with monitors onto the arm (A), and twist each knob 1/4 turn to lock.
- Page 5 STEP 4 If needed, adjust the gas spring in each arm (A) to support the monitors using the 6mm Allen wrench (O). While holding the arm in the straight forward po- sition, turn the screw in back clockwise to decrease support, and counter-clockwise to increase.
- Page 6 STEP 6 Use the cable clips (M) and cover (D) to organize cables. STEP 7 To limit the arm swivel range, tighten the set screw on the back of the arm (A) using the flat blade end of the 4mm Allen wrench (N). For no swivel range limit, loosen the set screw.
- Page 7 STEP 8 Tighten or loosen the rotation tension by turning the screws on the back of the VESA plates (E) with a Phillips screwdriver. Adjust tilt support by turning the bolt on the side of the tilt joints with the 4mm Allen wrench (N).
- Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! 309-278-5303 AVG. RESOLUTION TIME : 5M 4S (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
