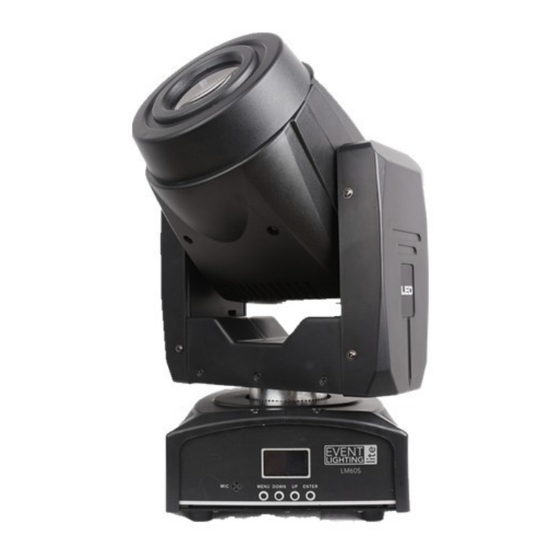

SPOT MOVING HEAD
LM60S
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Event Lighting LM60S
Summary of Contents for Event Lighting LM60S
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
-
Page 2: Safety Instructions
Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... -
Page 3: Product Dimensions
Product Dimensions www.event-lighting.com.au... -
Page 4: Color Wheel
Color Wheel Colour DMX Value Open 000-013 Colour 1 014-031 Colour 2 Yellow 032-049 Colour 3 Sky blue 050-067 Colour 4 Green 068-085 Colour 5 Orange 086-103 Colour 6 Magenta 104-121 Colour 7 Blue 122-130 www.event-lighting.com.au... -
Page 5: Rotating Gobo Wheel
Rotating gobo wheel Gobo 1 Gobo 2 Gobo 3 Gobo 4 Gobo 5 www.event-lighting.com.au... -
Page 6: Menu Operation
Menu operation Function Display 1.DMX Address 001- 512 Select DMX address from 001 to 512 2.DMX Mode Select DMX channel mode (CH5 / CH15) CH5 / CH15 3.Speed Mode Fade Speed / Fast Speed Set movement speed (Slow or Fast) 4.Master/Slave Select Master or Slave mode Master / Slave... -
Page 7: Dmx Chart
DMX Chart 5 channel Mode Channel DMX Value Function 000 - 255 Pan Coarse 000 - 255 Tilt Coarse 000-007 No Function 008-047 Auto Play 1 048-087 Auto Play 2 088-127 Auto Play 3 128-167 Auto Play 4 168-207 Auto Play 5 208-247 Auto Play 6 248-255... - Page 8 15 channel Mode Channel DMX Value Function 000 - 255 Pan coarse 000-255 Pan fine 000 - 255 Tilt coarse 000-255 Tilt fine 000 - 255 XY movement speed 000-255 Dimmer (Close to Open) 000-004 Shutter closed 005-250 Strobe effect slow to fast 251-255 Shutter open 000-013...
- Page 9 048-087 Auto Play 2 088-127 Auto Play 3 128-167 Auto Play 4 168-207 Auto Play 5 208-247 Auto Play 6 248-255 Color Gobo Sound Control 000-007 No Function 008-032 X/Y Auto Run 1 033-058 X/Y Auto Run 2 059-084 X/Y Auto Run 3 085-110 X/Y Auto Run 4 111-136...
-
Page 10: Technical Specifications
Materials: Metal & Flame retardant ABS Finishing: Matte black IP rating: IP20 Net Weight: 4 kg Overall Size: 330 x 200 x 280 mm WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au. www.event-lighting.com.au...
