ELCOM REQ5 Y Series Operating And Assembly Instruction Manual page 5

Dismantle call push-button module cover
During cleaning or replacement, the call push-but-
ton module cover can be dismantled from the front.
„ Lever up the interlocking cover strips (7) at
the top and bottom using the screwdriver and
remove (Figure 16).

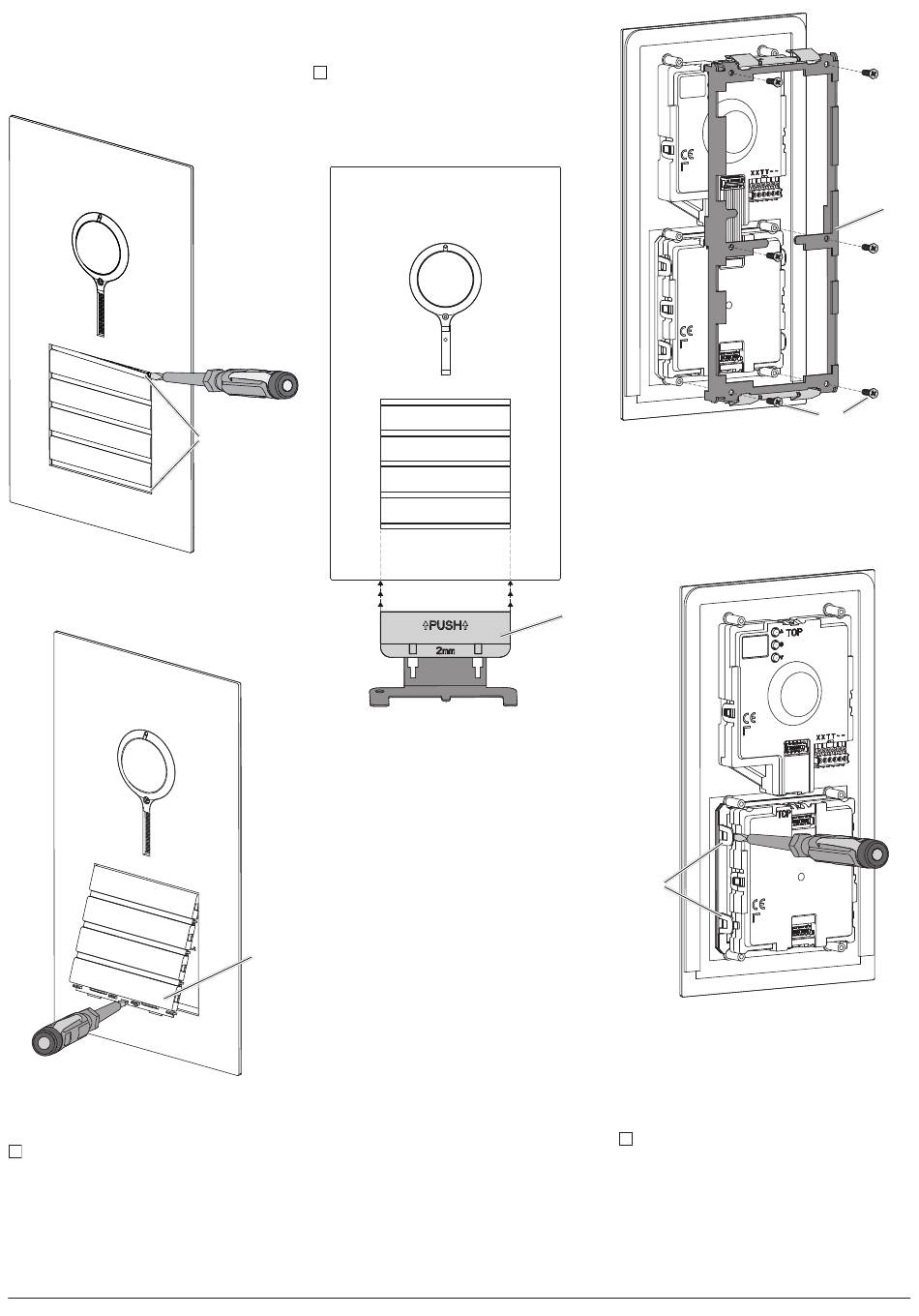

Figure 16: Removal of cover strips
„ Press up the call push-button module cover in
the bottom lever opening with the screwdriver
and guide it forwards (17).
Figure 17: Dismantling the call push-button module
cover
(19) Call push-button module cover
i
Defective covers can only be replaced by cov-
ers with the same number of push-buttons.
„ Remove the module to be replaced and install
the new module in reverse order.
5 Elcom Kommunikation GmbH - Gottfried-Leibniz-Str.1 - D-74172 Neckarsulm - www.elcom.de -
Open door station
„ Position the opening tool (16) at the bottom in
the middle and press up (Figure 18).
i
With two-series door stations, use the opening
tool in the middle under each series of call
push-buttons.
The door station will spring out of the bottom
interlocking mechanism forwards and can be
opened.
(7)
Figure 18: Opening of the door station
Exchange module/insert
Door station is dismantled.
„ Pull off connection terminal block (13) on the
video insert.
„ Remove the connection cables' connectors of
the module to be exchanged.
„ Loosen screws (20) of the module mounting at
the back (21) using a screwdriver and remove
the module mounting (Figure19).
(19)
Figure 19: Dismantling module mounting
(20) Screws
(21) Module mounting
The video insert can now be removed.
„ To remove the call push-button module, unlatch
the side retaining brackets (22) of the module
mounting by carefully lifting up with a screwdriv-
er (Figure 20).
(16)
(22)
Figure 20: Unlatching module
(22) Retaining brackets module mounting
After unlatching the two overlapping module
retaining brackets, the module detaches itself
from the anchoring (22).
„ Remove the module to be replaced and install
the new module in reverse order.
i
Automatic or manual addressing of the module
is required to operate the door station.
(21)
(20)
6LE000714A - 06/2015
