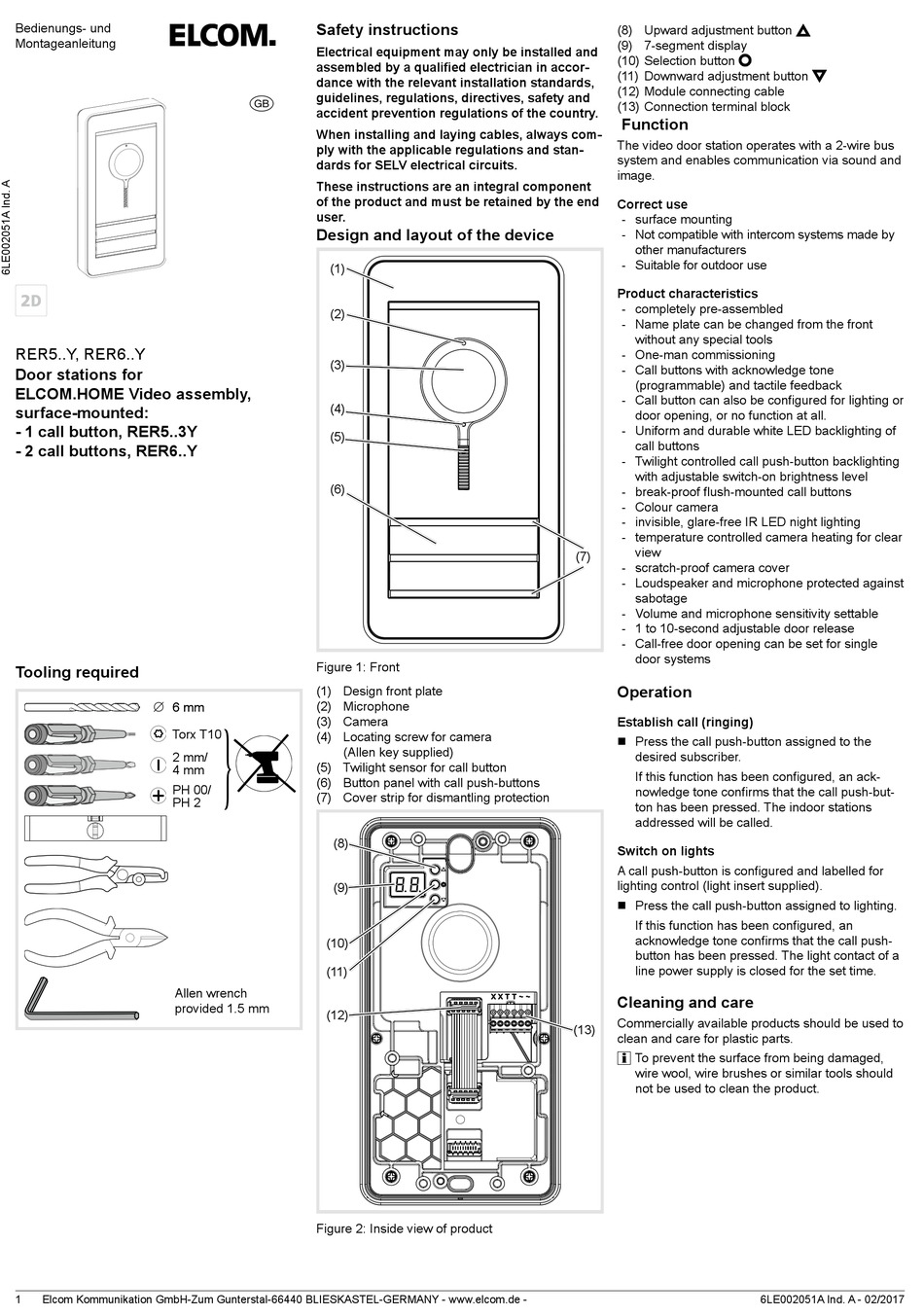

ELCOM RER5 Y Series Manual

Bedienungs- und
Montageanleitung

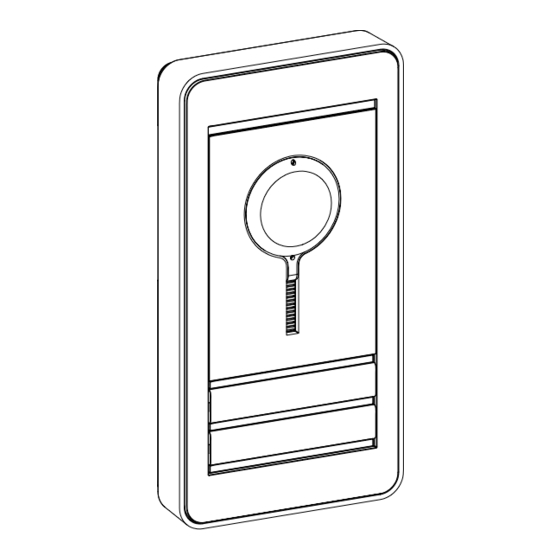

RER5..Y, RER6..Y
Door stations for
ELCOM.HOME Video assembly,
surface-mounted:
- 1 call button, RER5..3Y
- 2 call buttons, RER6..Y
Tooling required
6 mm 6 mm
Torx T10
2 mm/
4 mm
PH 00/
PH 2
Allen wrench
provided 1.5 mm
1 Elcom Kommunikation GmbH-Zum Gunterstal-66440 BLIESKASTEL-GERMANY - www.elcom.de -
Safety instructions
Electrical equipment may only be installed and
assembled by a qualified electrician in accor-
dance with the relevant installation standards,
guidelines, regulations, directives, safety and
z
accident prevention regulations of the country.
When installing and laying cables, always com-
ply with the applicable regulations and stan-
dards for SELV electrical circuits.
These instructions are an integral component
of the product and must be retained by the end
user.
Design and layout of the device
(1)
(2)
(3)
(4)
(5)
(6)
Figure 1: Front
(1) Design front plate
(2) Microphone
(3) Camera
(4) Locating screw for camera
(Allen key supplied)
(5) Twilight sensor for call button
(6) Button panel with call push-buttons
(7) Cover strip for dismantling protection
(8)
(9)
(10)
(11)
(12)
Figure 2: Inside view of product
(8) Upward adjustment button
(9) 7-segment display
(10) Selection button
(11) Downward adjustment button
(12) Module connecting cable
(13) Connection terminal block
Function
The video door station operates with a 2-wire bus
system and enables communication via sound and
image.
Correct use
- surface mounting
- Not compatible with intercom systems made by
other manufacturers
- Suitable for outdoor use
Product characteristics
- completely pre-assembled
- Name plate can be changed from the front
without any special tools
- One-man commissioning
- Call buttons with acknowledge tone
(programmable) and tactile feedback
- Call button can also be configured for lighting or
door opening, or no function at all.
- Uniform and durable white LED backlighting of
call buttons
- Twilight controlled call push-button backlighting
with adjustable switch-on brightness level
- break-proof flush-mounted call buttons
- Colour camera
- invisible, glare-free IR LED night lighting
- temperature controlled camera heating for clear
view
(7)
- scratch-proof camera cover
- Loudspeaker and microphone protected against
sabotage
- Volume and microphone sensitivity settable
- 1 to 10-second adjustable door release
- Call-free door opening can be set for single
door systems
Operation
Establish call (ringing)
„ Press the call push-button assigned to the
desired subscriber.
If this function has been configured, an ack-
nowledge tone confirms that the call push-but-
ton has been pressed. The indoor stations
addressed will be called.
Switch on lights
A call push-button is configured and labelled for
lighting control (light insert supplied).
„ Press the call push-button assigned to lighting.
If this function has been configured, an
acknowledge tone confirms that the call push-
button has been pressed. The light contact of a
line power supply is closed for the set time.
Cleaning and care
Commercially available products should be used to
(13)
clean and care for plastic parts.
i
To prevent the surface from being damaged,
wire wool, wire brushes or similar tools should
not be used to clean the product.
6LE002051A Ind. A - 02/2017
