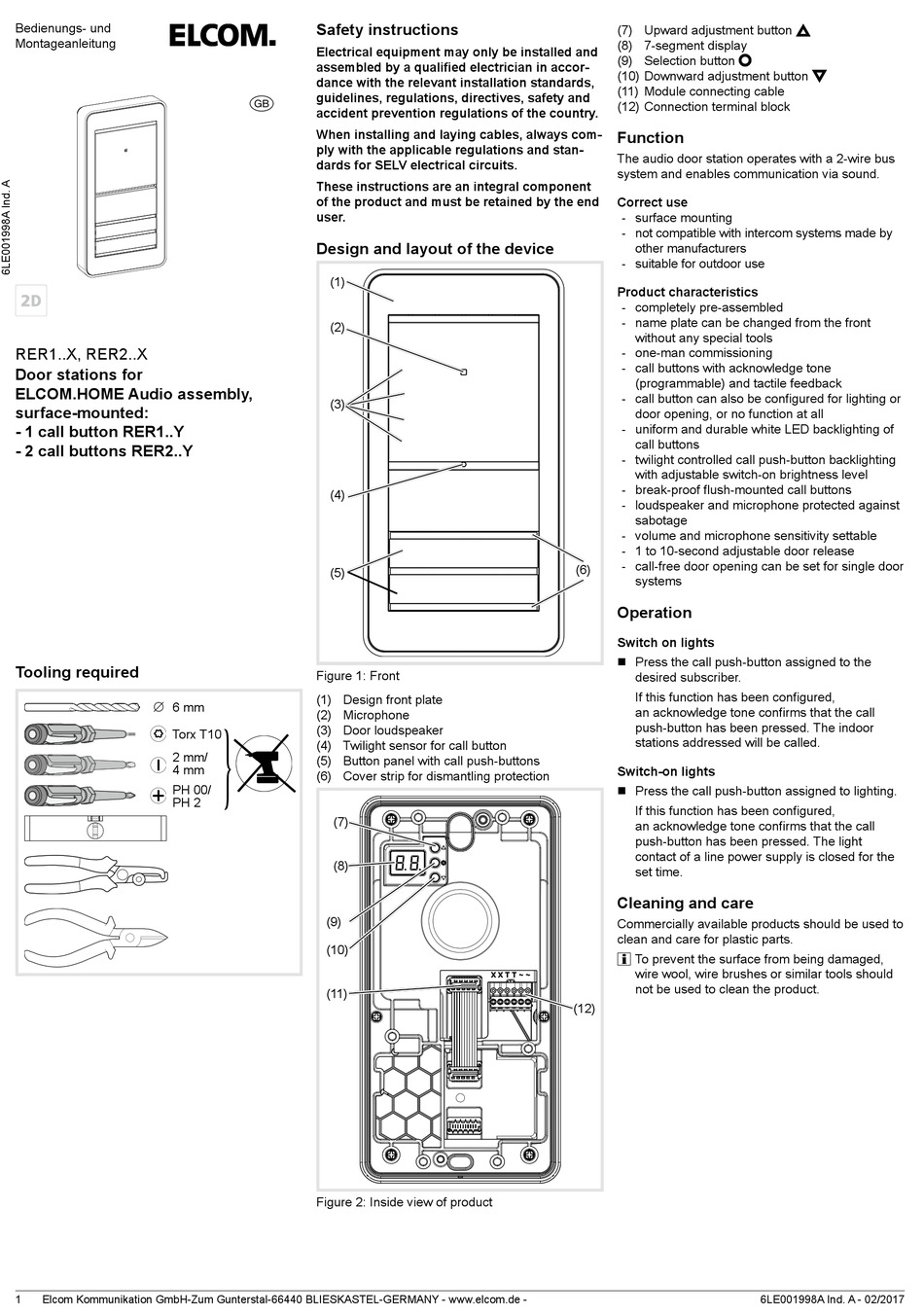

ELCOM RER1 X Series Manual

Bedienungs- und
Montageanleitung
RER1..X, RER2..X
Door stations for
ELCOM.HOME Audio assembly,
surface-mounted:
- 1 call button RER1..Y
- 2 call buttons RER2..Y
Tooling required
6 mm
Torx T10
2 mm/
4 mm
PH 00/
PH 2
1 Elcom Kommunikation GmbH-Zum Gunterstal-66440 BLIESKASTEL-GERMANY - www.elcom.de -
Safety instructions
Electrical equipment may only be installed and
assembled by a qualified electrician in accor-
dance with the relevant installation standards,
guidelines, regulations, directives, safety and
z
accident prevention regulations of the country.
When installing and laying cables, always com-
ply with the applicable regulations and stan-
dards for SELV electrical circuits.
These instructions are an integral component
of the product and must be retained by the end
user.
Design and layout of the device
(1)
(2)
(3)
(4)
(5)

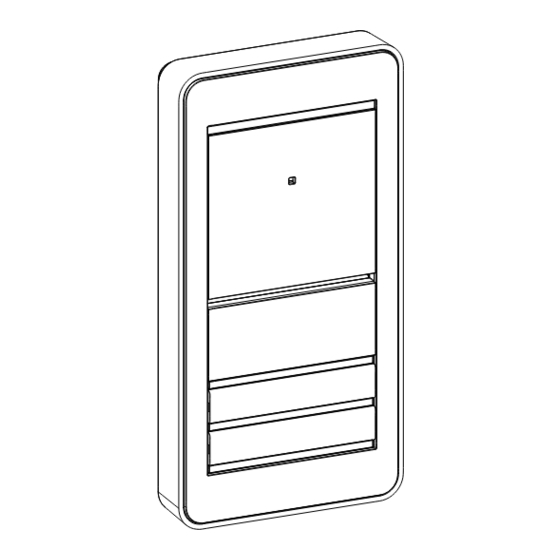

Figure 1: Front
(1) Design front plate
(2) Microphone
(3) Door loudspeaker
(4) Twilight sensor for call button
(5) Button panel with call push-buttons
(6) Cover strip for dismantling protection
(7)
(8)
(9)
(10)
(11)
Figure 2: Inside view of product
(7) Upward adjustment button
(8) 7-segment display
(9) Selection button
(10) Downward adjustment button
(11) Module connecting cable
(12) Connection terminal block
Function
The audio door station operates with a 2-wire bus
system and enables communication via sound.
Correct use
- surface mounting
- not compatible with intercom systems made by
other manufacturers
- suitable for outdoor use
Product characteristics
- completely pre-assembled
- name plate can be changed from the front
without any special tools
- one-man commissioning
- call buttons with acknowledge tone
(programmable) and tactile feedback
- call button can also be configured for lighting or
door opening, or no function at all
- uniform and durable white LED backlighting of
call buttons
- twilight controlled call push-button backlighting
with adjustable switch-on brightness level
- break-proof flush-mounted call buttons
- loudspeaker and microphone protected against
sabotage
- volume and microphone sensitivity settable
- 1 to 10-second adjustable door release
- call-free door opening can be set for single door
(6)
systems
Operation
Switch on lights
„ Press the call push-button assigned to the
desired subscriber.
If this function has been configured,
an acknowledge tone confirms that the call
push-button has been pressed. The indoor
stations addressed will be called.
Switch-on lights
„ Press the call push-button assigned to lighting.
If this function has been configured,
an acknowledge tone confirms that the call
push-button has been pressed. The light
contact of a line power supply is closed for the
set time.
Cleaning and care
Commercially available products should be used to
clean and care for plastic parts.
i
To prevent the surface from being damaged,
wire wool, wire brushes or similar tools should
not be used to clean the product.
(12)
6LE001998A Ind. A - 02/2017
