ELCOM REA1 Y Series Original Operating And Assembly Instructions

Operating and
assembly instructions
REA1..Y
Indoor station Audio surface-
mounted 2Wire, TOUCH
REK2..Y
Indoor station Audio angular
surface-mounted 2Wire, TOUCH
Safety instructions
Electrical equipment may only be installed and
assembled by a qualified electrician in accord-
ance with the relevant installation standards,
guidelines, regulations, directives, safety and
accident prevention regulations of the country.
When installing and laying cables, always com-
ply with the applicable regulations and stand-
ards for SELV electrical circuits.
These instructions are an integral component
of the product and must be retained by the end
user.
1 Elcom Kommunikation GmbH - Gottfried-Leibniz-Str.1 - D-74172 Neckarsulm - www.elcom.de -
Design and layout of the device
(4)
§
(1)
Figure 1: Design and layout of the device
(1) Indoor station (operating unit)
(2) Design frame
(with REK2..Y included in scope of delivery)
(3) Supporting plate with connection terminal
block
(4) Microphone
Function
The indoor station audio is a device for the 2-wire
bus system. It can communicate with door stations
and further indoor stations and unlock door releas-
es.
Correct use
- For surface-mounting on a flat surface or for
mounting on a wall box according to DIN 49073
- Only suitable for use in indoor areas with no
drip and no spray water
- Not compatible with door communication sys-
tems of other manufacturers
Product characteristics
- Touch control panel with 6 symbol buttons, 3
are illuminated
- Hands-free or Push-to-Talk
- Ring tone volume and microphone sensitivity
can be adjusted
- 16 ring tone melodies, individually assignable
- Connection for storey bell push-button
- storey call forwarding
- Parallel operation (a total maximum of 3 identi-
cally addressed indoor stations)
- Internal calls to other indoor stations
- Light button for activation of the light relay con-
tact
Operation

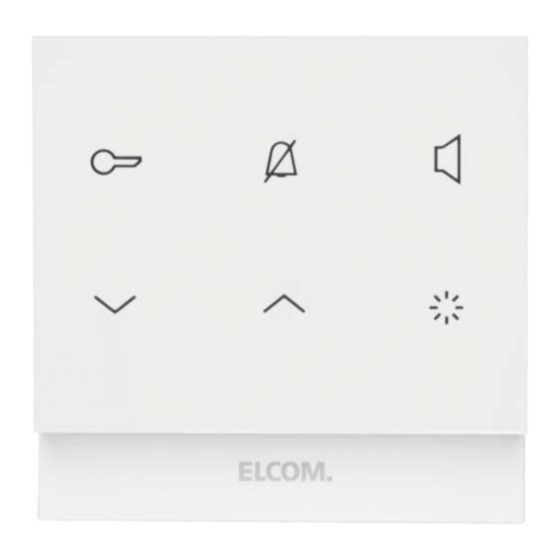

Operating concept
Each of the 6 symbol buttons on the control panel
(Figure 2) corresponds to a touch-sensitive sur-
face. To trigger its function, it needs a push-button
press with tactile feedback.
(2)
(3)
All basic functions can be called up directly via the
respective symbol button:
1)
2)
By pressing the
the setting mode is activated (see audio settings).
Figure 2: Control panel
Symbol button Function
LED State
door opener unlock door
2)
button
lights up door can be unlocked
mute button mute ring tone
2)
flashes ring tone muted
speech accept call,
button end call,
2)
switch on internal call mode
flashes incoming call,
internal call mode switched on
lights up call connection active
adjustment decrease value,
button down Initiate internal call F/E
adjustment increase value,
button up Initiate internal call F/F
light button switch on light
2)
terminate setting mode
requires a corresponding installation
with acknowledge tone
Table 1: Control panel buttons
+ buttons simultaneously
i
In addition, the buttons do give an acoustic
2)
feedback after actuation:
- 1 acknowledge tone = function available
- 3 short tones = function not available
- 3 recurring tones = internal call mode
6LE000708B - 09/2015
,
