R&G CR0039BK Fitting Instructions

FITTING INSTRUCTIONS FOR CR0039BK COTTON REELS
Please note that the way the kit is packed does not necessarily represent the way of mounting to the bike
Please note that in cases where kits are packed with rubber washers holding the components onto the bolt –
the rubber washers should be thrown away!
Please read all instructions before commencing fitting
•
Raise and support the rear of bike, support rear wheel (suggest using blocks of wood) to prevent wheel from
dropping when rear spindle is removed.
•
Undo the rear spindle nut.
•
Remove the rear spindle and remove the original washers.
•

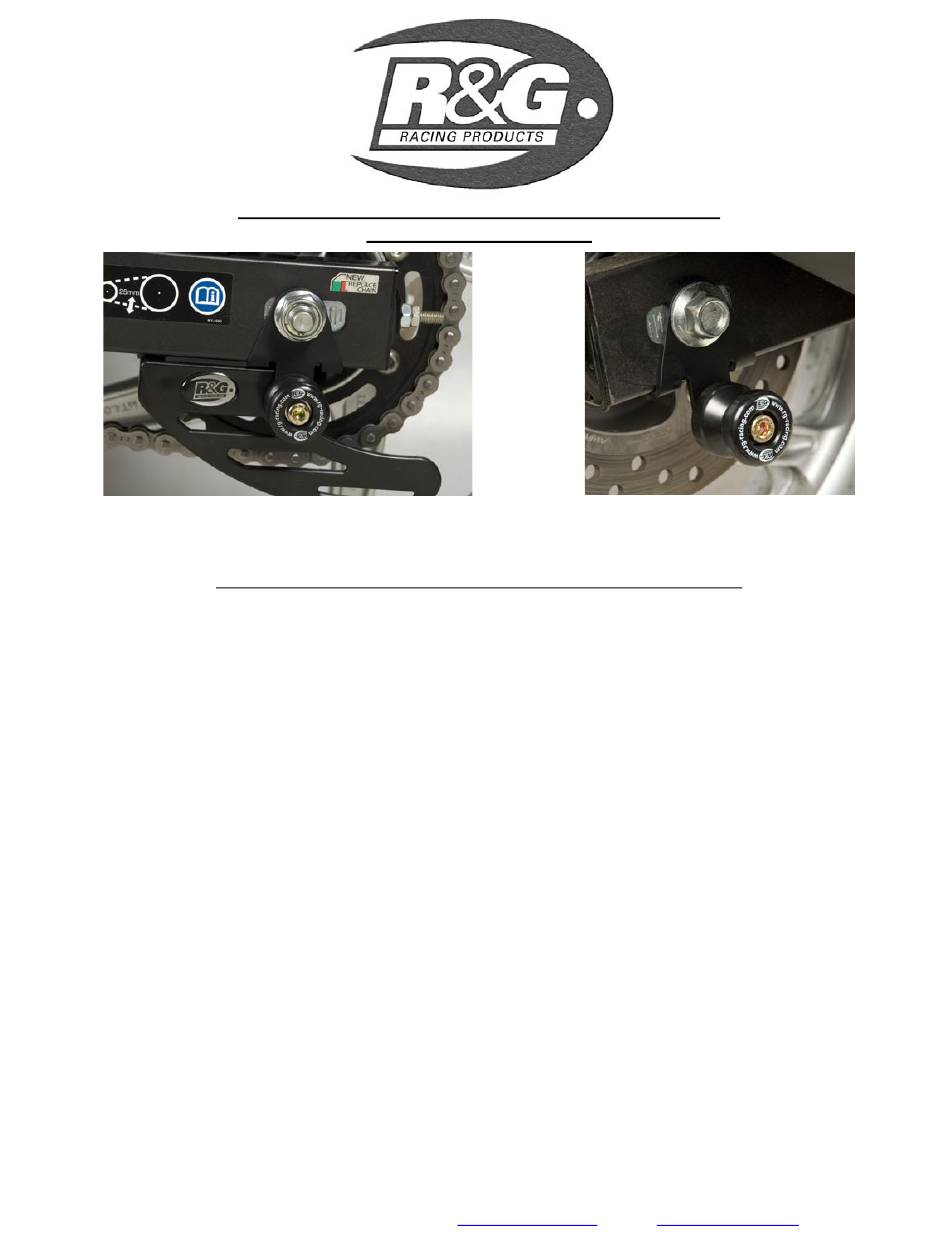

Place rear spindle through new (smaller) mounting bracket as shown above right.
•
Slide spindle through swing arm, brake calliper and rear wheel ensuring new mounting bracket sits as original
(shown above right).
•
Fit the remaining new (larger) mounting bracket over exposed end of spindle (ensure flat face is against swing arm
face as original) shown above left.
•
Refit the spindle nut and tighten according to the manufactures instructions (88Nm) and check chain adjustment.
•
Fit the new cotton reels to the new mounting bracket on both sides as shown above.
•
On the left hand side the mounting bracket is larger to allow fitment of a toe/chain guard (R&G product code
TG0005BK) if required.
