Page 1 of 6
CR0002

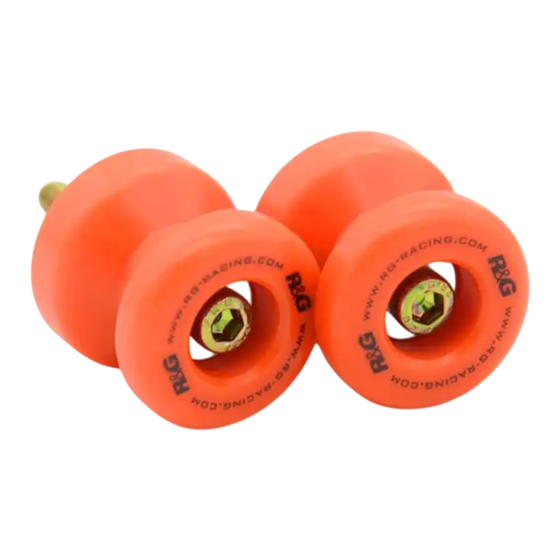

FITTING INSTRUCTIONS FOR CR0002
COTTON REELS
T
.
HIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED OVER PAGE
S
.
OME PARTS MAY BE SHOWN FOR CLARITY OF INSTRUCTIONS ONLY
D
.
O NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT
P
.
LEASE READ ALL INSTRUCTIONS BEFORE PROCEEDING
IF IN ANY DOUBT WHEN FITTING OUR PRODUCTS, CONSULT ONE OF
OUR DEALERS OR HAVE FITTED BY A QUALIFIED TECHNICIAN.
P
LEASE NOTE THAT THE WAY THE KIT IS PACKED DOES NOT NECESSARILY REPRESENT THE
.
WAY OF MOUNTING TO THE BIKE
I
,
N THE EVENT OF RUBBER WASHERS BEING USED TO HOLD COMPONENTS ONTO BOLTS
.
THESE RUBBER WASHERS CAN BE THROWN AWAY
DIGITAL COPIES OF THESE INSTRUCTIONS ARE AVAILABLE FROM:
WWW.RG-RACING.COM
R&G
Unit 1, Shelley's Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301
www.rg-racing.com
Email:
info@rg-racing.com
Advertisement
Table of Contents
Related Manuals for R&G CR0002
Summary of Contents for R&G CR0002
- Page 1 Page 1 of 6 CR0002 FITTING INSTRUCTIONS FOR CR0002 COTTON REELS HIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED OVER PAGE OME PARTS MAY BE SHOWN FOR CLARITY OF INSTRUCTIONS ONLY O NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT...
-
Page 2: Tools Required
Page 2 of 6 CR0002 TOOLS REQUIRED GENERAL TORQUE SETTINGS M4 BOLT = 8Nm • Set of Metric Allen Keys. M5 BOLT = 12Nm M6 BOLT = 15Nm M8 BOLT = 20Nm 0 BOLT = 40Nm M12 BOLT = 40Nm LEGEND ITEM NO. -
Page 3: Fitting Instructions
Page 3 of 6 CR0002 FITTING INSTRUCTIONS Pre-assemble the kit as shown in COMPONENTS PARTS DIAGRAM, secure to • the bike using the M6 bolt. • Repeat this for both sides of the bike. Check the bolt frequently and if necessary please apply a small amount of thread •... - Page 4 Page 4 of 6 CR0002 NOTICE DE MONTAGE POUR CR0002 PROTECTION CE KIT CONTIENT LES ARTICLES ILLUSTRÉS ET ÉTIQUETÉS SUR LA PAGE. CERTAINES PIÈCES PEUVENT ÊTRE INDIQUÉES UNIQUEMENT POUR LA CLARTÉ DES INSTRUCTIONS. NE PAS CONTINUER AVANT D'ÊTRE SÛR DE LA PRÉSENCE DE TOUTES LES PIÈCES.
-
Page 5: Outils Requis
Page 5 of 6 CR0002 OUTILS REQUIS VALEURS DE SERRAGE BOULON M4 = 8Nm • Clés Allen. BOULON M5 = 12Nm BOULON M6 = 15Nm BOULON M8 = 20Nm BOULON M10 = 40Nm BOULON M12 = 40Nm LÉGENDE ARTICLE NO. -
Page 6: Notice De Montage
Page 6 of 6 CR0002 NOTICE DE MONTAGE Pré-assemblez le kit comme indiqué sur le SCHÉMA DES COMPOSANTS, fixez-le à • la moto à l'aide du boulon M6. • Répétez cette opération des deux côtés de la moto. Vérifiez fréquemment le boulon et, si nécessaire, appliquez une petite quantité de •...
