CP0410

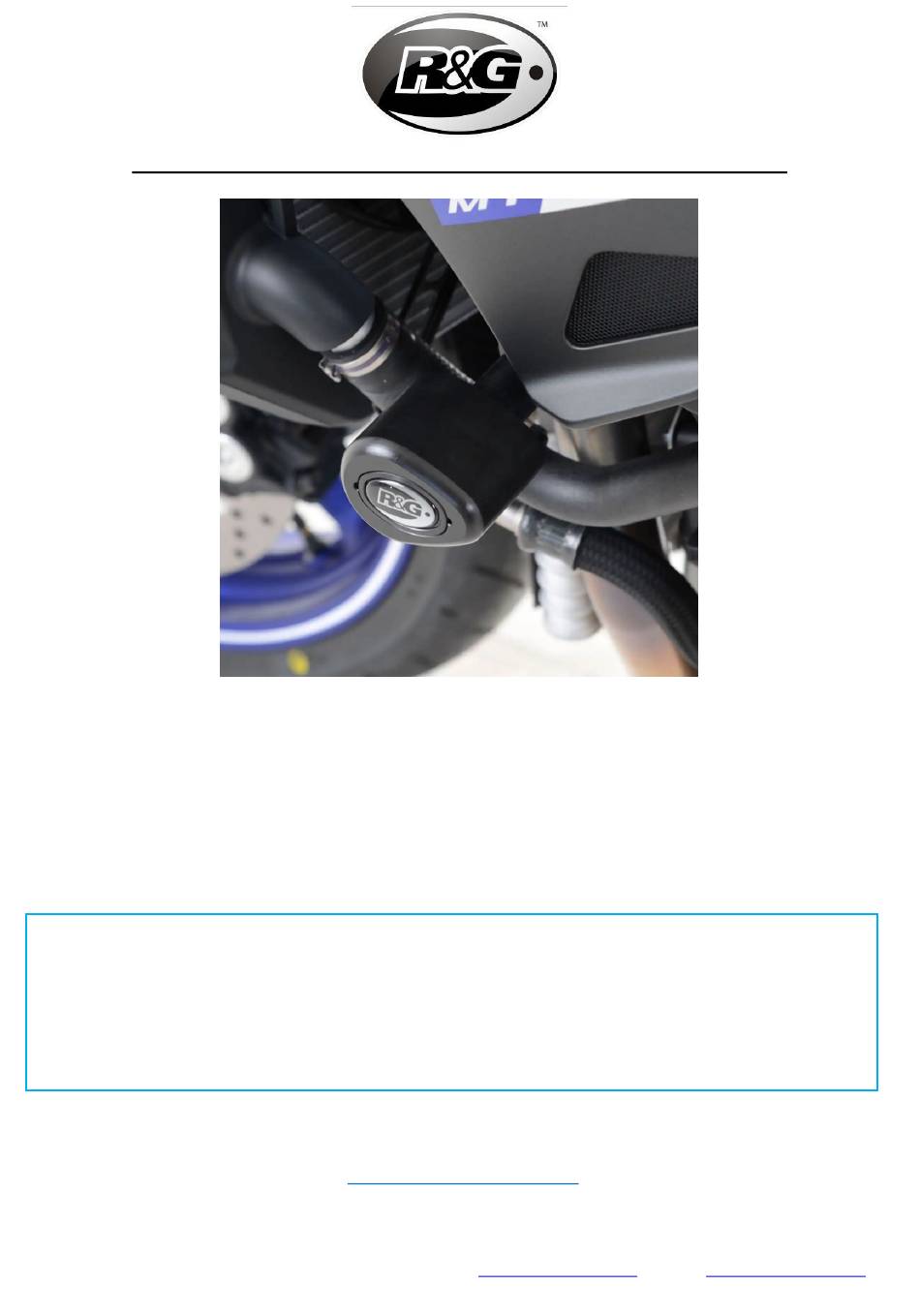

FITTING INSTRUCTIONS CP0410 AERO CRASH PROTECTORS
T
.
HIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED OVER PAGE
S
.
OME PARTS MAY BE SHOWN FOR CLARITY OF INSTRUCTIONS ONLY
D
.
O NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT
P
.
LEASE READ ALL INSTRUCTIONS BEFORE PROCEEDING
IF IN ANY DOUBT WHEN FITTING OUR PRODUCTS, CONSULT ONE OF OUR DEALERS
OR HAVE FITTED BY A QUALIFIED TECHNICIAN.
P
LEASE NOTE THAT THE WAY THE KIT IS PACKED DOES NOT NECESSARILY REPRESENT THE WAY OF
.
MOUNTING TO THE BIKE
I
,
N THE EVENT OF RUBBER WASHERS BEING USED TO HOLD COMPONENTS ONTO BOLTS
.
THESE RUBBER WASHERS CAN BE THROWN AWAY
DIGITAL COPIES OF THESE INSTRUCTIONS ARE AVAILABLE FROM:
WWW.RG-RACING.COM
R&G Racing
Unit 1, Shelley's Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301
www.rg-racing.com
Email:
info@rg-racing.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for R&G CP0410
Summary of Contents for R&G CP0410
- Page 1 Page 1 of 8 CP0410 FITTING INSTRUCTIONS CP0410 AERO CRASH PROTECTORS HIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED OVER PAGE OME PARTS MAY BE SHOWN FOR CLARITY OF INSTRUCTIONS ONLY O NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT...
-
Page 2: Tools Required
Page 2 of 8 CP0410 TOOLS REQUIRED GENERAL TORQUE SETTINGS 8mm & 10mm HEX KEY BIT M4 BOLT = 8Nm • M5 BOLT = • 19mm A/F SOCKET & WRENCH M6 BOLT = TORQUE WRENCH (UP TO 50Nm) • M8 BOLT = 20Nm SUITABLE SUPPORT JACK •... -
Page 3: Fitting Instructions
Page 3 of 8 CP0410 LHS & RHS EXPLODED ASSEMBLY VIEW FITTING INSTRUCTIONS Before removing engine bolts, ensure the bike is upright and supported by a suitable engine stand or jack placed under the sump of the motorbike to support the partial weight of the engine, this will prevent the engine from moving during fitting. - Page 4 Page 4 of 8 CP0410 • Repeat the process for the RHS. Once completed, double check torque settings & the position/orientation of the bobbins then • push the bobbin caps (ITEM 2) into place and remove the jack. Please note: Torque of the engine/bobbin bolts should be checked at regular intervals when doing routine maintenance/servicing.
- Page 5 Page 5 of 8 CP0410 NOTICE DE MONTAGE CP0410 PROTECTIONS CRASH E KIT CONTIENT LES ARTICLES ILLUSTRES ET ETIQUETES SUR LA PAGE ERTAINES PARTIES PEUVENT ETRE PRESENTES UNIQUEMENT POUR LA CLARTE DES INSTRUCTIONS E PAS PROCEDER AU MONTAGE TANT QUE VOUS N...
-
Page 6: Outils Requis
Page 6 of 8 CP0410 OUTILS REQUIS VALEURS DE SERRAGE M4 BOULON = 8Nm CLÉ HEXAGONALE 8mm & 10mm • M5 BOULON = 12Nm • CLÉ À CLIQUET + DOUILLE 19mm M6 BOULON = 15Nm CLÉ DYNAMOMÉTRIQUE (JUSQU’À 50Nm) •... -
Page 7: Notice De Montage
Page 7 of 8 CP0410 VUE D’ENSEMBLE CÔTÉ GAUCHE ET DROIT DROITE GAUCHE NOTICE DE MONTAGE Avant de retirer les boulons du moteur, assurez-vous que la moto soit en position verticale et soutenue par un support moteur ou un cric approprié placé sous le carter de la moto pour supporter le poids partiel du moteur, cela empêchera le moteur de bouger pendant le... - Page 8 Page 8 of 8 CP0410 • Faites tourner la protection de quelques degrés dans le sens inverse des aiguilles d'une montre et maintenez-la en place pendant le serrage pour empêcher la protection de tourner trop loin pendant le serrage. À l'aide d'une clé dynamométrique, serrez le boulon à 45 Nm.
