Fits:
2009 - 2014
2 0 1 4
CAN FIT IN DIESEL TRUCKS
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
1
Driver/Left Side Bar
1
Passenger/Right Side Bar
Driver/Left Front-Passenger/Right Rear Mounting
2
Brackets
Passenger/Right-Driver/Left Rear Front Mounting
2
Brackets
1
Driver/Left Center Mounting Bracket
1
Passenger/Right Center Mounting Bracket
Passenger/Right
Front Mounting
Bracket
INSTALLATION PROCEDURE:
1.
Starting on the driver side of the vehicle, locate the (2) holes in the pinch weld to find the factory mounting holes in the inner side
panel, (Figure 1). NOTE: The inner holes may be covered with sealing tape or insulation. Slide the 8mm Clip Nuts into the
opening with the nut towards the inside. Line up the threaded nut on the clip with the round holes, (Figure 1).
2.
Partially attach the driver side Mounting Bracket to the Clip Nuts with the included (2) 8mm x 30mm Hex Bolts, (2) 8mm Lock
Washers and (2) 8mm x 28mm Large Flat Washers, (Figure 2). Depending on model and year, the brake cable may be run on
the inside or outside of the Bracket. Do not tighten hardware at this time. NOTE: The Cradle on the Front Mounting Bracket
should face to the rear of the vehicle.
Page 1 of 4

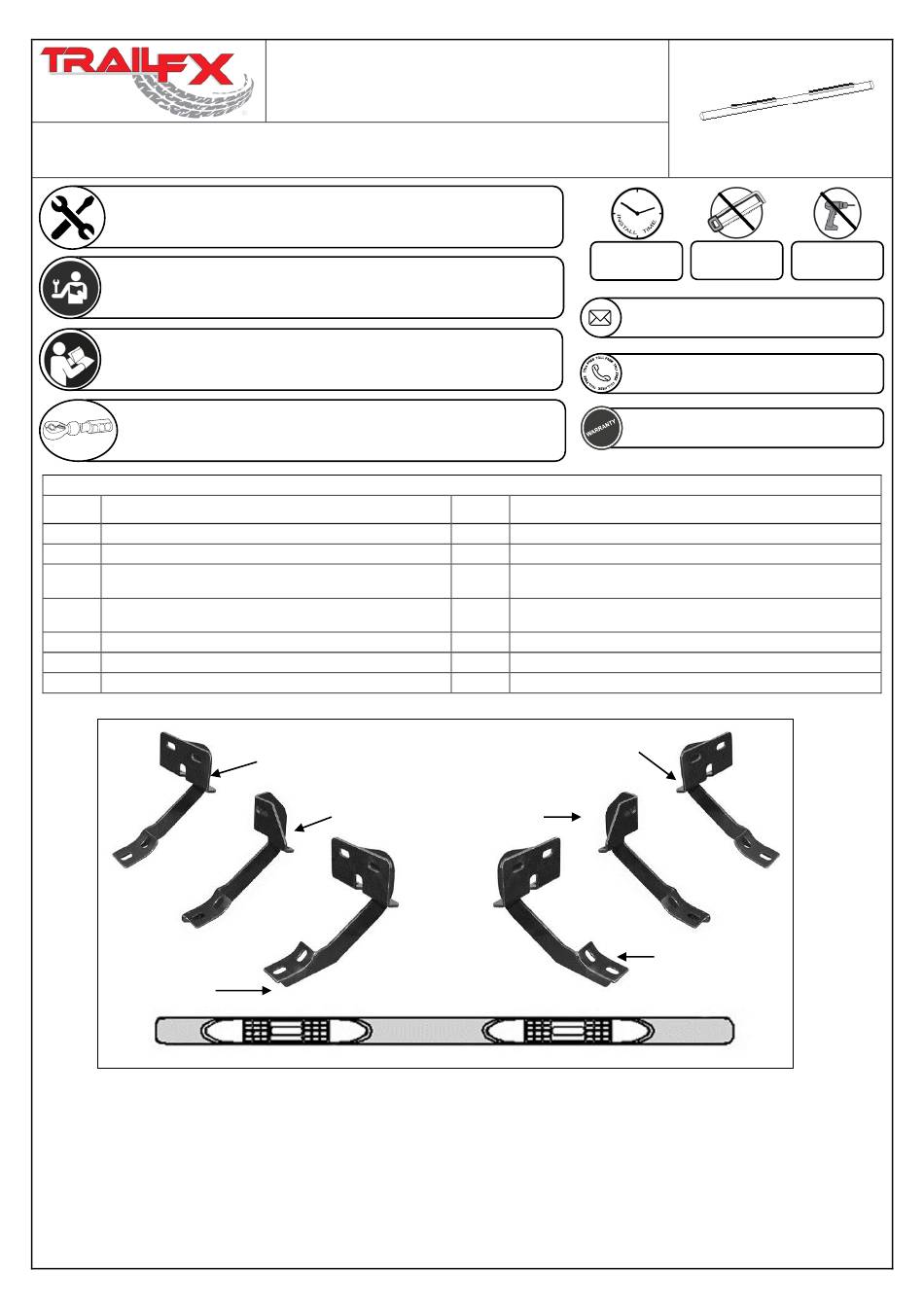

5" Oval Nerf Bar
Part No. A7013S/B
Ford F150 Super Crew Cab
Part Description
Passenger/Right Rear
Mounting Bracket
Passenger/Right
Center Mounting
Bracket
PARTS LIST:
Qty
10
8mm Deep Clip Nuts
10
8-1.25mm x 30mm Hex Bolts
22
8-1.25mm x 25mm Hex Bolts
10
8mm x 28mm OD x 3mm Large Flat Washers
32
8mm x 24mm OD x 2mm STD Flat Washers
32
8mm Lock Washers
10
8mm Hex Nuts
Driver/Left Rear
Mounting Bracket
Driver/Left Center
Mounting Bracket
www.FX-Products.com
Cutting Not
60-180 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
Driver/Left Front
Mounting Bracket
Front
Drilling Not
Required
Rev061517
