WARNING
APPLICATION
: 2022-2023 TOYOTA TUNDRA DOUBLE CAB
Qty
1
Driver/Left Sidebar
1
Passenger/Right Sidebar
1
Driver/Left Front Mounting Bracket
1
Passenger/Right Front Mounting Bracket
3
Driver/Left Rear Mounting Brackets
Size
08 MM
(3) Passenger/Right Rear
Mounting Brackets
Driver/Left
Sidebar
FRONT
Visit
www.trailfx.com
Assembly, Installation, Operation and
Maintenance Instructions
5" Oval Straight Side Bar
Provide a copy of these instructions to the end user of this product. These instructions
provide important operating and safety information for proper usage of this product.
Demonstrate the proper use of the product with the end user. Have the end user
demonstrate that they understand the proper use of the product.
Read and follow all instructions included in this manual. Ask your Dealer / Installer for
assistance if you do not understand the proper use of the product. Never remove any
decals from the product. Failure to follow these instructions can result in injury or death.

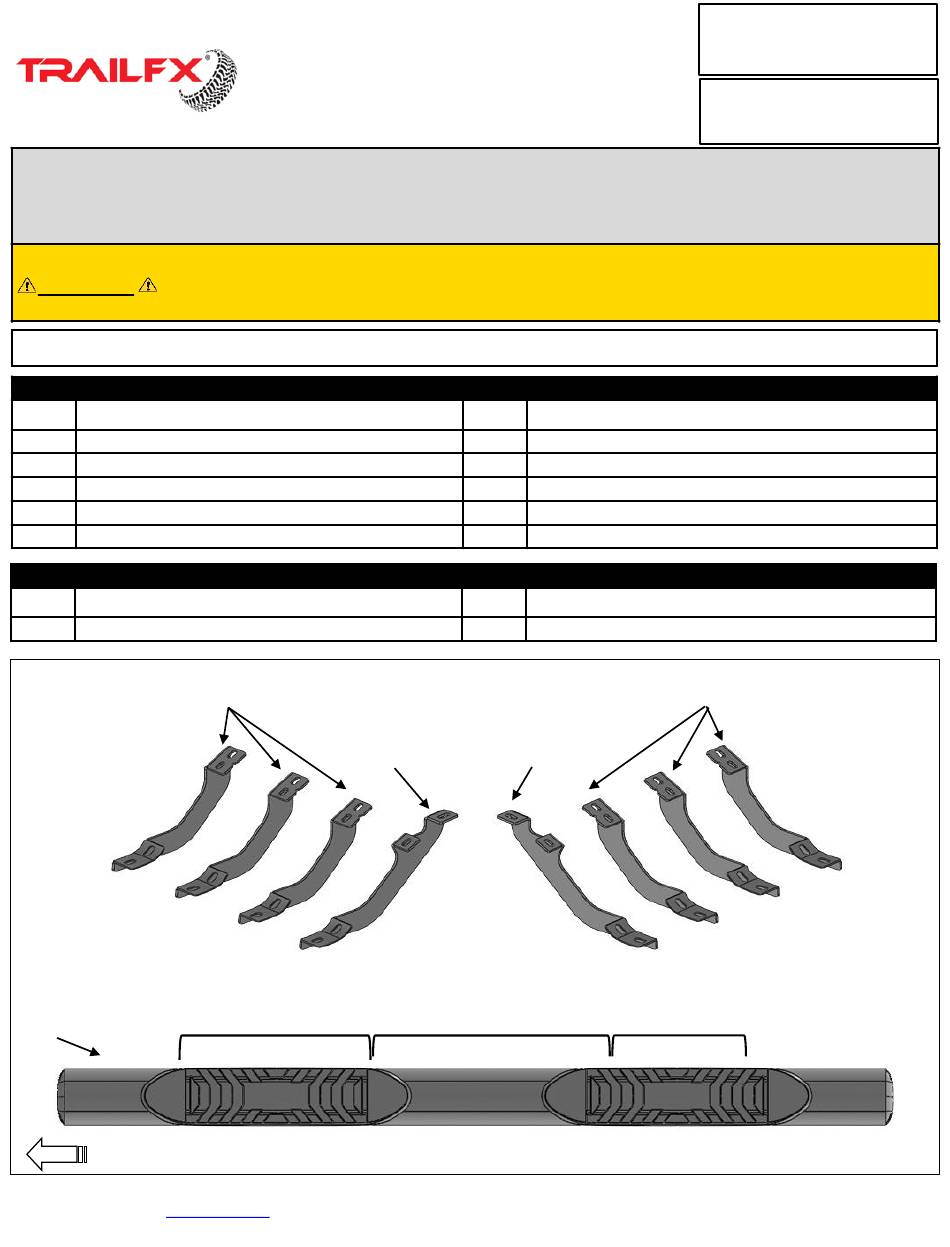

Part Description
TORQUE SPECIFICATION
Torque
20.0 ft/lbs
Passenger/Right
Front Mounting
Bracket
Approx. 19inches
between
threaded holes
or Call (866) 638-4870 for Warranty Information / Tech Support / Product Updates.
Keystone Automotive Operations Inc. All Rights Reserved. 12/02/2022-R01
PARTS LIST
Qty
3
Passenger/Right Rear Mounting Brackets
16
8mm x 30mm Hex Bolts
16
8mm x 25mm Combo Bolts
16
8mm Lock Washers
16
8mm x 24mm OD x 2mm Flat Washers
Size
Driver/Left
Front Mounting
Bracket
Approx. 22inches
between
threaded holes
Part Number:
A7100S/T
60 - 180 minutes
Part Description
Torque
(3) Driver/Left Rear
Mounting Bracket
Approx. 10inches
between
threaded holes
Page-1-4
