Fits:
1999-2013
2001-2014
1999-2013
2001-2014
Excl. C/K "Classic"
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
1
Driver/Left Sidebar
1
Passenger/Right Sidebar
1
Driver/Left Front Mounting Bracket
1
Passenger/Right Front Mounting Bracket
1
Driver/Left Rear Mounting Bracket
1
Passenger/Right Rear Mounting Bracket
1
Driver/Left Front Support Bracket
1
Passenger/Right Front Support Bracket
Passenger/Right
Rear Mounting
Bracket
Passenger/Right Front
Support Bracket
Passenger/Right Front
Mounting Bracket

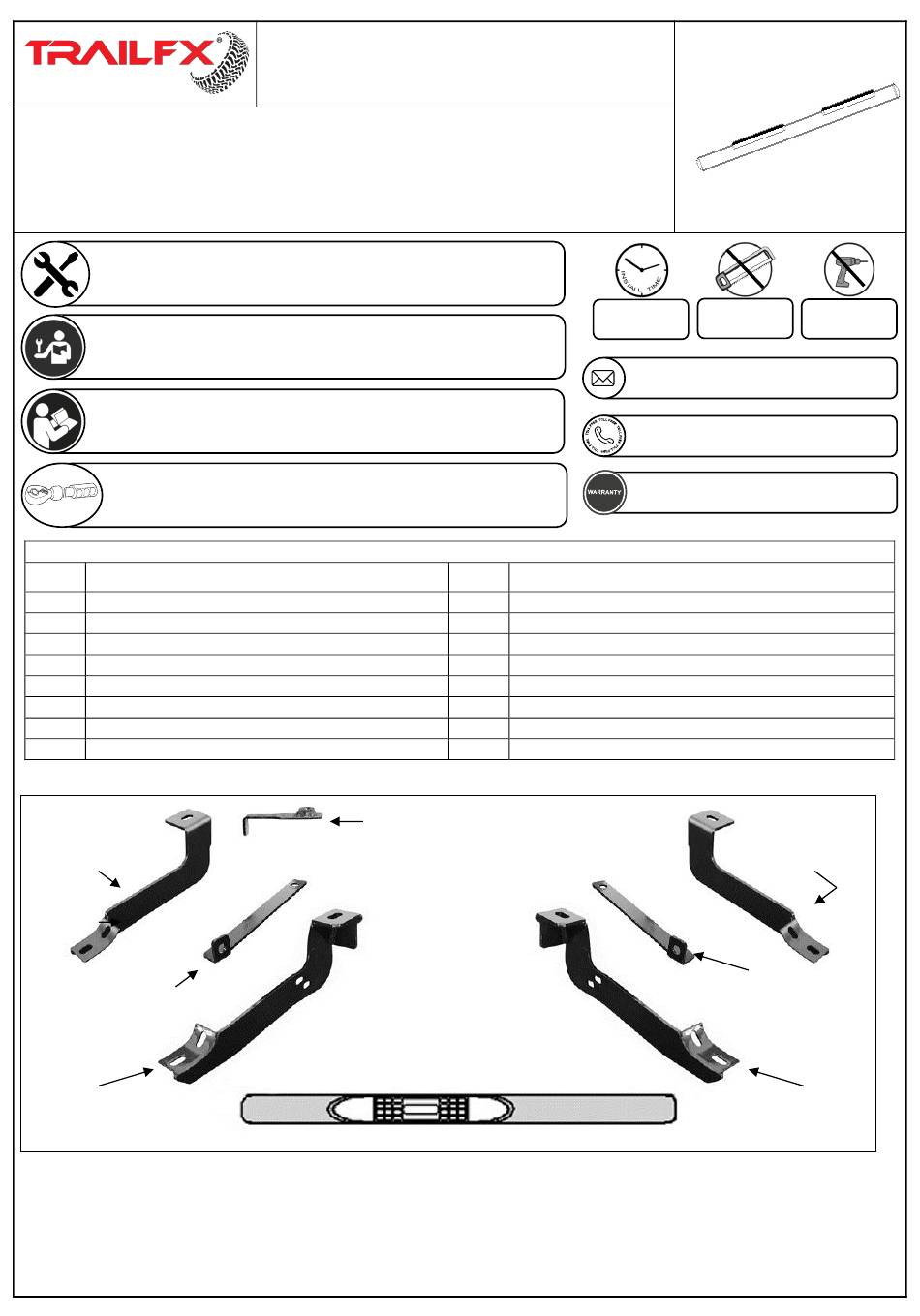

Page 1 of 5

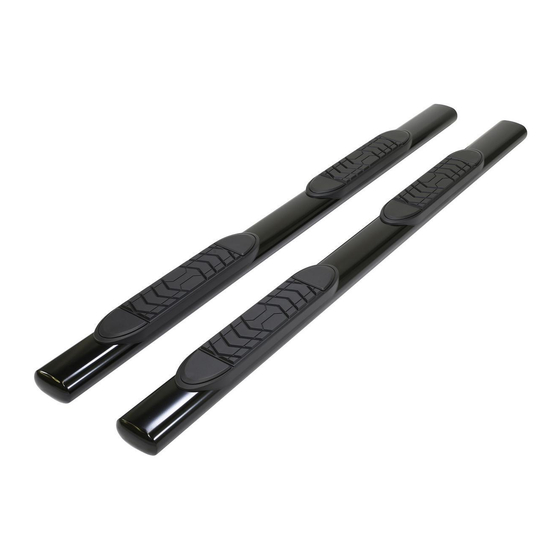

5" Oval Nerf Bar
Part No. A7001S /B
Chevrolet Silverado 1500/2500LD Reg. Cab
Chevrolet Silverado 2500HD/3500 Reg. Cab
GMC Sierra 1500/2500LD Reg. CAB
GMC Sierra 2500HD/3500 REG. CAB
Part Description
(2) 10mm Nut Plates
Front
PARTS LIST:
Qty
2
10mm Nut Plates
4
10-1.50mm x 30mm Hex Bolts
6
10mm x 20mm OD x 2mm Flat Washers
4
10mm Lock Washers
2
10mm Hex Nuts
8
8-1.25 x 25mm Hex Bolts
8
8mm x 24mm x 2mm Flat Washers
8
8mm Lock Washers
www.TrailFX.com
Cutting Not
60-180 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
Driver/Left Rear
Mounting
Bracket
Driver/Left Front
Support Bracket
Driver/Left Front
Mounting Bracket
Drilling Not
Required
Rev 031618
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TrailFX A7001S
Summary of Contents for TrailFX A7001S
- Page 1 5" Oval Nerf Bar Part No. A7001S /B Fits: 1999-2013 Chevrolet Silverado 1500/2500LD Reg. Cab 2001-2014 Chevrolet Silverado 2500HD/3500 Reg. Cab 1999-2013 GMC Sierra 1500/2500LD Reg. CAB 2001-2014 GMC Sierra 2500HD/3500 REG. CAB Excl. C/K "Classic" Cutting Not Drilling Not...
- Page 2 IMPORTANT ALERT: GM uses a very strong thread-locking compound on all body bolts. Use of an air assisted impact ratchet can cause damage to the threads on factory body mount bolts and the internal nut assembly because of this thread locking compound.
- Page 3 INSTALLATION PROCEDURE: Start the installation under the driver side of the vehicle and remove the front and rear body mount bolts. Do not remove bushings Hang the driver side front and rear Mounting Brackets from the body mounts using the factory hex bolts, (Figures 1& 2).
- Page 4 10mm x 30mm Hex Bolt (2) 10mm Flat Washers 10mm Lock Washer 10mm Hex Nut Front 0mm Nut Plate 10mm x 30mm Hex Bolt 10mm Lock Washer 10mm Flat Washer Front (Fig 4) 1500 Model Front Support Bracket Installation Pictured IMPORTANT NOTE: Up to 2010 25-3500 Model Front Support Bracket Installation Pictured.
- Page 5 Product not installing properly. Ensure make model year, cab length and bed size of your vehicle is listed in the application. All installation steps are followed correctly. Check out these other TrailFX Products!! www.TrailFX.com Keystone Automotive Operations Inc. (KAO) warrants this product to be free of defects in material and workmanship at the time of purchase by the original retail consumer.
