AES global Opyn Manual

Opyn
* ALWAYS TEST THE UNIT ON SITE
Mount the antenna as high as possible and
Note:
away from obstructions such as vehicles,
cut or join
shrubs and trees to maximize signal
strength.
Antenna cable.
Do NOT mount antenna at ground level.
PCB
WIFI – SMA
connection.
SD
Card
Relay
1

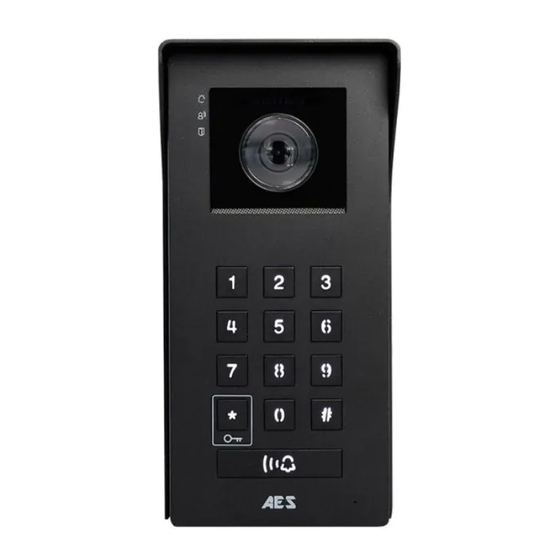

- IP Intercom with Integrated WiFi
BEFORE INSTALLATION TO AVOID RESTOCKING FEES *
Install Preparation
MAX DISTANCE 100m (320ft) (LAN)
Do not
This can be extended by using an ethernet cable extender
2
LAN/POE:
RJ45 – LAN
connection.
48v POE.
Note: Up to 50m using
Relay – NO / 2.4GHz with an average
home router and clear line
COM / NC
of sight.
Further distances can be
DC Power – achieved with advanced
additional equipment.
24V DC 2 AMP
Power In – 24V DC
2 AMP – use
NC supply provided for
power
COM
NO
24V AC-DC 2
1
(purchased separately)
Site Wiring
3
Wi-Fi
Intercom
Antenna
(Install at
(Connect to
desired
Main PCB)
height)
DC
Power
Cable
PSU Enclosure
(Sold Separately)
Power
4
DC -
AMP
DC +
SITE SURVEY (WiFi)
I have some WiFi
signal at the gate with
my phone! If not,
STOP. Use LAN/CAT5
cable!
My WiFi Internet
Security is WPA,
WPA2, WPA3 or
better.
POWER CABLE
TIP: Most technical calls received are due to installers using CAT5 or alarm cable
to power the unit.
NEITHER are rated to carry enough power! ( 1.2amp peak )
Please use the following cable:
Up to 2 metres ( 6 feet ) – Use minimum 0.5mm
Up to 4 metres ( 12 feet ) – Use minimum 0.75mm
Up to 8 metres ( 24 feet ) – Use minimum 1.0mm
INGRESS PROTECTION
We recommend sealing all entry holes for prevention of insects that can
cause issues with a risk of shorting out components.
To maintain the IP54 rating please follow the sealing instructions included.
(also available online)
LIGHTNING PRONE AREAS MUST USE SURGE PROTECTION
FOR POWER SUPPLY!
NEED MORE ASSISTANCE?
+44 (0)288 639 0693
SCAN THIS QR CODE TO BE BROUGHT TO OUR RESOURCES PAGE.
VIDEOS | HOW-TO GUIDES | MANUALS | QUICK START GUIDES
STILL HAVING TROUBLE?
Find all of our support options such as Web Chat,
Full Manuals, Customer Helpline and more on
our website:
WWW.AESGLOBALONLINE.COM
Mbs
Slow Fast
We recommend a minimum UPLOAD
speed of 1.5 Mbps!
The higher the upload speed the higher
the quality of your video stream will be.
However, you can adjust the video
stream quality should you still find it
dropping frames or a little slow.
KEEP POWER SUPPLY AS CLOSE AS POSSIBLE.
Power
2 ( 18 gauge )
Consumption:
2
( 16 gauge )
Standby = 170mA
2 ( 14 gauge )
Max = 300mA
