Summary of Contents for SMC Networks MGZ Series

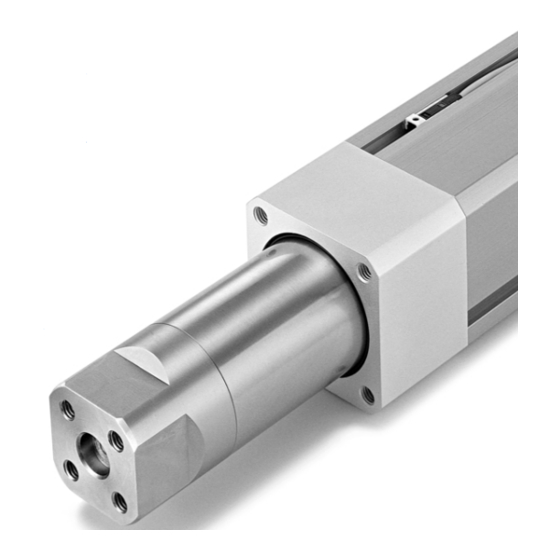

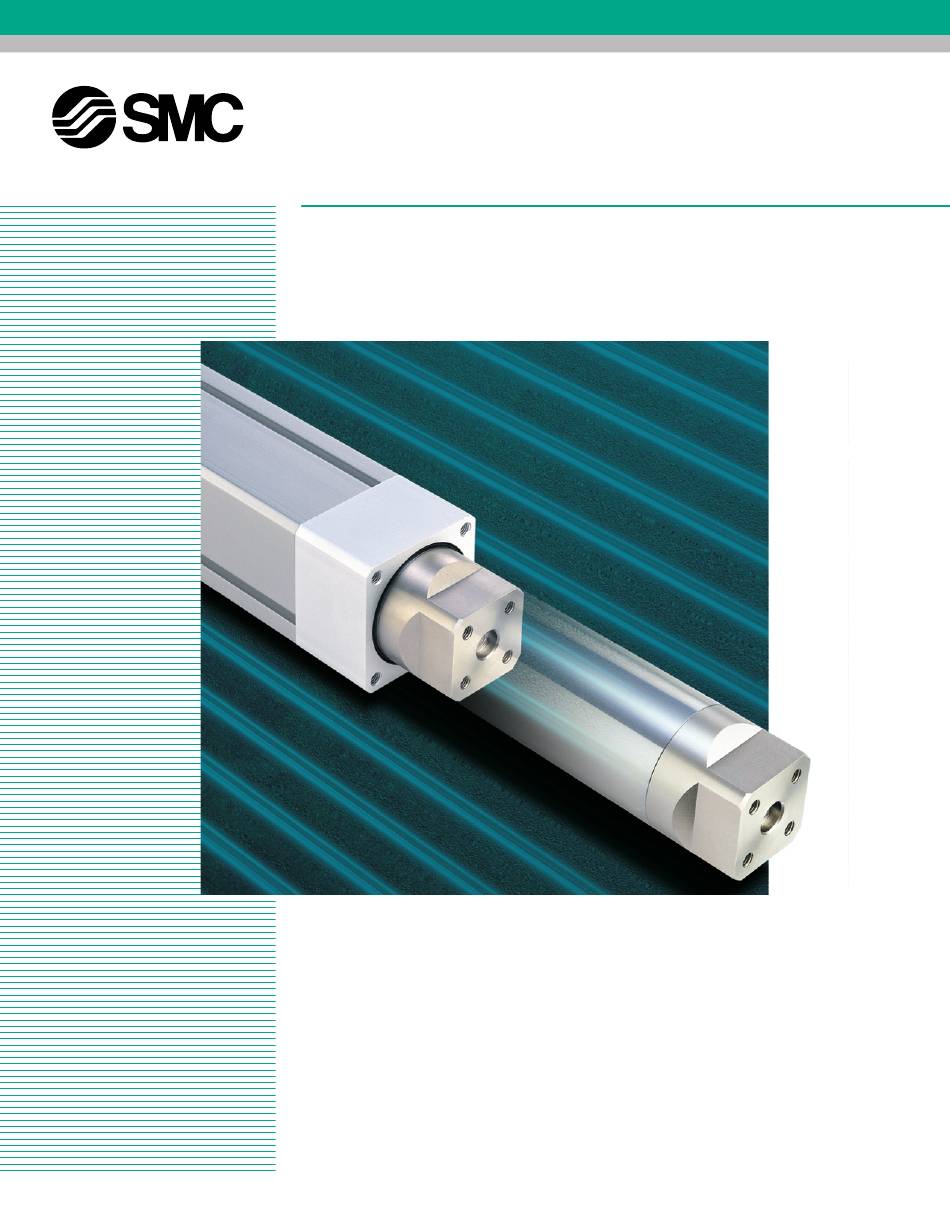

- Page 1 N348 ® MGZ Series Non-rotating Double Power Cylinder External non-rotation guide unnecessary Double output power in the extend direction Large side loading capabilities High strength and space savings...
- Page 2 Non-rotating Series MGZ Double Power Cylinder Non-rotation guide Sliding key x 2 unnecessary! Employs a large bore tube rod up to 80% of the cylinder's external square dimension + slide bearing. In addition, a built-in non-rotation mechanism using sliding keys allows direct mounting of loads.
-
Page 3: Application Examples
High strength & space savings Moment resistance is equal to a guide cylinder (cylinder + two guide shafts). Furthermore, the mounting cross section is reduced by approximately 40%. Long stroke capability & space savings Strokes up to 1000mm are possible. Due to the construction, the overall length is not two or more times the stroke as in the case of conventional double output cylinders (tandem type). -
Page 4: How To Order
Series MGZ Non-rotating Double Power Cylinder How to Order Standard Type Number of auto switches 2 pcs. 1 pc. 3 pcs. "n" pcs. Bore size 40mm 50mm Auto switch type 63mm Without auto switch (built-in magnet cylinder) ∗ Select applicable auto switch models from the table below. Stroke (mm) Refer to the standard stroke table on page 5. -
Page 5: Specifications
Series MGZ Non-rotating Double Power Cylinder Specifications Bore size (mm) Action Double acting single rod Fluid Proof pressure 1.5MPa (217.5psi) Maximum operating pressure 1.0MPa (145psi) Minimum operating pressure 0.08MPa (11.6psi) (with no freezing) Without auto switch –10 to 70°C (14 to 158°F) Ambient and fluid temperature (with no freezing) With auto switch –10 to 60°C (14 to 140°F) - Page 6 Series MGZ Non-rotating Double Power Cylinder Construction Parts list Description Material Note Material Description Note Rod cover Aluminum alloy Carbon steel Clear anodized Tie-rod nut Nickel plated Head cover Aluminum alloy Clear anodized Hexagon socket head cap screw Chrome molybdenum steel Nickel plated Cylinder tube Aluminum alloy...
-
Page 7: Dimensions (Mm)
Series MGZ Non-rotating Double Power Cylinder Dimensions (mm) 1in = 25.4mm 2–Rc P + 0.2 4–MM depth M øXA depth XL 2 x 4–J S + Stroke ZZ + Stroke Bore size Stroke range (mm) 34.5 23.5 M6 x 1.0 to 1000 M8 x 1.25 to 1000... -
Page 8: Specific Product Precautions
Series MGZ Non-rotating Double Power Cylinder Applicable auto switches Auto switch models Electrical entry Auto switch type Reed switch D-Z7 , Z80 Grommet D-Y59 , Y69 , Y7P Grommet Grommet (2 color indicator, with diagnostic output) Solid state switch D-Y7NW , Y7PW , Y7BW Grommet (2 color indicator, water resistant) D-Y7BAL Specific Product Precautions... - Page 9 Series MGZ Non-rotating Double Power Cylinder Reed Switch Internal Circuits D-Z73 D-Z76 D-Z80 DC ( Contact Brown (Red) ± Brown (Red) OUT ( Contact protection OUT ( Brown (Red) protection Resistor Resistor Brown (Red) Load CD-P11 Reverse power Zener diode OUT ( ) current Black (White)
- Page 10 Series MGZ Non-rotating Double Power Cylinder Caution Theoretical output must be confirmed separately. Refer to the theoretical output table on page 5. Determine the selection conditions in order from the top of the table below, Selection Conditions and choose one of the selection graphs to be used. 1.
- Page 11 Series MGZ Non-rotating Double Power Cylinder Selection Example: Selection Graphs (Vertical Downward Mounting) Horizontal Mounting Selection conditions Graph Graph to 300mm/s to 500mm/s Mounting: Horizontal (chucking) Stroke: 300mm ø63 Load center of gravity position: 100mm ø63 Load weight: 10kg Operating pressure: 0.5MPa Refer to graph based on horizontal mounting and load center of gravity position.
-
Page 12: Safety Instructions
Series MGZ Non-rotating Double Power Cylinder Safety Instructions These safety instructions are intended to prevent a hazardous situation and/or equipment damage. These instructions indicate the level of potential hazard by a label of "Caution", "Warning" or "Danger". To ensure safety, be sure to Note 1) Note 2) observe ISO 4414... - Page 13 Series MGZ Actuator Precautions 1 Be sure to read before handling. Precautions on Design Selection Warning Warning 1. There is a danger of sudden action by air 1. Confirm the specifications. cylinders if sliding parts of machinery are The products advertised in this catalog are designed according to use in industrial compressed air systems.
- Page 14 Series MGZ Actuator Precautions 2 Be sure to read before handling. Mounting Lubrication Caution Caution 1. Be certain to align the rod shaft center with 1. Lubrication of non-lube type cylinder the load and direction of movement when The cylinder is lubricated at the factory and can be used without any further lubrication.
- Page 15 Series MGZ Actuator Precautions 3 Be sure to read before handling. Operating Environment Maintenance Warning Warning 1. Do not use in environments where there is a 1. Maintenance should be performed accord- danger of corrosion. ing to the procedure indicated in the instruction manual.
- Page 16 Series MGZ Auto Switch Precautions 1 Be sure to read before handling. Design & Selection Warning Warning 1. Confirm the specifications. • In the same way, when operating under a specified voltage, although an auto switch may operate normally, the load may Read the specifications carefully and use this product appropri- not operate.
- Page 17 Series MGZ Auto Switch Precautions 2 Be sure to read before handling. Mounting & Adjustment Wiring Warning Warning 1. Do not drop or bump. 5. Do not allow short circuit of loads. <Reed switch> Do not drop, bump or apply excessive impacts (300m/s² or more for reed switches and 1000m/s²...
- Page 18 Series MGZ Auto Switch Precautions 3 Be sure to read before handling. Operating Environment Maintenance Warning Warning 1. Never use in an atmosphere of explosive 1. Perform the following maintenance periodi- gases. cally in order to prevent possible danger due to unexpected auto switch malfunction.
- Page 19 Series MGZ Specific Product Precautions Be sure to read before handling. Refer to pages 12-18 for safety instructions, actuator precautions and auto switch precautions. Selection Operating Precautions Caution Caution 1. Operate loads within the range of the operat- 1. Do not apply more than the allowable rotary ing limits.
- Page 20 ® World Wide Support... North American Branch Offices For a branch office near you call: 1-800-SMC-SMC1 (762-7621) SMC Pneumatics Inc. (Milwaukee) SMC Pneumatics Inc. (Atlanta) SMC Pneumatics Inc. (Cleveland) SMC Pneumatics Inc. (Richmond) 16850 W. Victor Road 1440 Lakes Parkway, Suite 600 2305 East Aurora Rd., Unit A-3 5377 Glen Alden Drive New Berlin, WI 53151...
