- Page 1 V2.0.2 USER MANUAL Konvision KUM/KXM Monitors w w w k o n v i s i o n c o m...
-
Page 2: Table Of Contents
CC Settings ........20 UMD Settings: ......20 System Settings: ......21 About This Manual Input Signal, Config Settings and The manual instruction is for KXM/KUM S1~S4 Keys Setting ....... 22 series monitors. Input Signal ........ 22 There are two kinds of model rear view showing in the following instruction. -
Page 3: Notes
14. If do not use the device for a long time, Notes please unplug the power cord from the AC outlet. 15. Please keep not less than 5cm space around the vents while using the monitor, Safety in order to obtain a good heat dissipation effect. -
Page 4: Cabinet Maintenance
This monitor is precise equipment and needs professional packing materials to transport. Please do not use packing materials provided by suppliers except KONVISION or its authorized packing material suppliers. When the following situations occur, please turn off the power, and do not insert the plug. -
Page 5: Parts And Functions

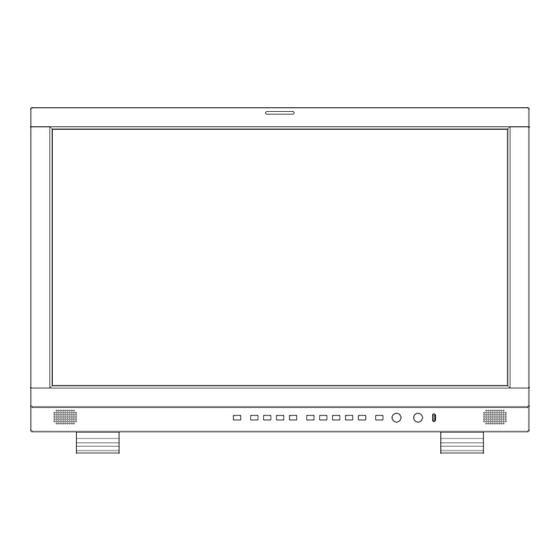

Parts and Functions Front View Tally Indicator S2 Button and Indicator Tally indicator control in two ways: Press the S2 button, the indicator will turn blue. 1. GPI Interface (see the control method at GPI Currently, the S2 button switch to the configuration interface description behind) corresponding to the S2 button. -
Page 6: Rear View A
MENU/EXIT Button IMAGEADJ (U/D) Knob Press to display the on-screen menu, press it again When in the menu, spin this knob to select up/down to clear the on-screen menu. Press to display or exit operation. menu, also can back to previous menu. When not in the menu, press the knob continuous, will appear following adjustment: Brightness: adjust the backlight of the image. -
Page 7: Gpi Interface
AUDIO OUT Analog stereo audio interface output. Upgrading the monitor FPGA, OSD, APP,EDPsoftware or LUT file with USB port. HDMI IN/OUT Ethernet port for color correction, upgrading or control HDMI signal input/output interface, Max support UMD via TSL5.0. (For specification instructions please 4096x2160 60Hz. -
Page 8: Rear View B
Rear View B AC IN and Switch RS422 IN and RS422 OUT AC power supply. RS422 in and out. RS422 control adoptive TSL3.1 or AC power input is powered on, switch to “I” to power TSL4.0 protocol. According to this protocol, it supports on, switch to “O”... -
Page 9: Osd Menu
SDI 4 (IN/OUT) Menu Item Description 12G/6G/3G/HD-SDI input, output. Status Display: (4K series only support 3G/HD/SD-SDI) SDI 3 (IN/OUT) 12G/6G/3G/HD-SDI input, output. (4K series only support 3G/HD/SD-SDI) SDI 2 (IN/OUT) 12G/6G/3G/HD-SDI input, output. SDI 1 (IN/OUT) 12G/6G/3G/HD-SDI input, output. SDI SFP+ 12G/6G/3G/HD/SD-SDI optical input cage. -
Page 10: Vpid/Hdmi Status (Sdi)
VPID/HDMI Status (Current SDI signal): Sub Menu Description Channel Select Select different channel to view different signal parameter. Source Display the current HDMI signal. Color Format Display the Color Format of the signal. Data Level Display the Data Level of the signal. Color Depth Display the Color Depth of the signal. -
Page 11: Function Settings
Sub Menu Description Sub Menu Description Power On Config [Last Config]Load the last Config Set the Config of S1 key.[User1~5] when power on.[User 1~5]Load the User customized config 1~5. [Preset 1~5]Default config 1~5. select User 1-5 when power on. · Last Config ·... -
Page 12: Source Settings
Sub Menu Description Sub Menu Setting Option Description Color Quick Select Preset the Color and then it can be Layout Mode [Single Image]Select Single display. preset in the F function key for quick [Quad]Select Quad display. select. Win1 Win2 · >> Win3 Win4 Data Level Preset... - Page 13 Sub Menu Setting Option Description Sub Menu Setting Option Description SDI3 Rename SDI3 User-defined name. Win3 Border Color Select the color of the Win3 Border. · SDI3 · White · Green SDI4 Rename SDI4 User-defined name. · Blue · SDI4 ·...
-
Page 14: Color Settings
Color Settings: Sub Menu Setting Option Description Color Space [Auto]Auto matches color space of the input signal(only for Rec709 or Rec2020). [Bypass]Color Table Select Bypass. [Rec709]Color Table Select REC709. [EBU]Color Table Select EBU. [DCI P3 D65]Color Table Select DCI P3 D65. [DCI P3]Color Table Select DCI P3. -
Page 15: Image Settings
Sub Menu Setting Option Description Sub Menu Setting Option Description Color Temp Color Temp settings.Users can Backlight Adjust screen backlight. customize the Color Temp, and save · 0-100 to corresponding user mode, and then Aspect Ratio [Full Screen]The screen is displayed press the S1-S4 keys to load in Full Screen.[Original Ratio]The ·... -
Page 16: Scope Settings
Scope Settings: Sub Menu Setting Option Description Histogram [OFF]Close histogram. [LUMA]Display brightness histogram. [RGB]Display RGB histogram. · OFF · LUMA · RGB Channel Select [Channel 1]Select to display channel 1 waveform separately. [Channel 2]Select to display channel 2 waveform separately.[Channel 3]Select to display channel 3 waveform separately.[Channel 4] Select to display channel 4 waveform... -
Page 17: Marker Settings
Marker Settings: Sub Menu Setting Option Description Focus Assist [OFF]Turn off Focus Assist.[Red]Turn on Focus Assist as Red.[Green]Turn on Focus Assist as Green.[Blue]Turn on Focus Assist as Blue · OFF · Red · Green · Blue Focus Assist Level Focus Assist Level value 0-100. ·... -
Page 18: Audio Settings
Audio Settings: Sub Menu Setting Option Description Marker Mat [OFF]Turn off Marker Mat. [Black]Turn on Marker Mat as Black. [Gray]Turn on Marker Mat as Gray. · OFF · Black · Gray Marker Line Color [White]Turn on Marker Line Color as White.[Red]Turn on Marker Line Color as Red.[Green]Turn on Marker Line Color as Green.[Blue] Turn on Marker Line Color as Blue. -
Page 19: Cc Settings
CC Settings:(Only available for SDI Signal) UMD Settings: Sub Menu Setting Option Description Sub Menu Setting Option Description [Channel 1]Select single channel Channel Select SDI1 CC.[Channel 2]Select single UMD Display [ON]Turn on UMD display. channel SDI2 CC.[Channel 3]Select [OFF]Turn off UMD display. single channel SDI3 CC.[Channel 4] ·... -
Page 20: System Settings
System Settings: Sub Menu Setting Option Description UMD Character 4 UMD name of the Win4 in Quad mode. · Channel4 (Note: UMD protocol should select Local) UMD ID The IMD address can be set anywhere between 0-126. The IMD address can set to different IMD addresses of the machine when multiple machines are cascaded. -
Page 21: Input Signal, Config Settings And S1~S4 Keys Setting
Input Signal [ON]Turn on source info. · Auto · ON Konvision monitor supports the input of a variety of signals. Since the UHD signals have various formats USB Select Select the USB interface to update. and need to set parameters such as color gamut, ·... -
Page 22: Quad Split Mode
3. Then, switch to Config option and select Config1, 4. After saving, press the S1 key to call Config1. At this press the Knob button to save. time, the screen will display the quad split mode. SDI SQD/2SI display 4K signal The operation method is same for SDI 2SI and SDI SQD, only 8K version monitor support quad link 12G SDI SQD/2SI display 8K signal. -
Page 23: Configuration Settings Description
5. After setting, switch the menu to Config option and Configuration Settings Description select the Save Config to Config5, press the Knob button to save. Except switch to different channels, the Config of the S1/S2/S3/S4 can also set other parameters, such as brightness, contrast, EOTF curve, color gamut and so on. - Page 24 www.konvision.com...
