Summary of Contents for Konvision Field Series

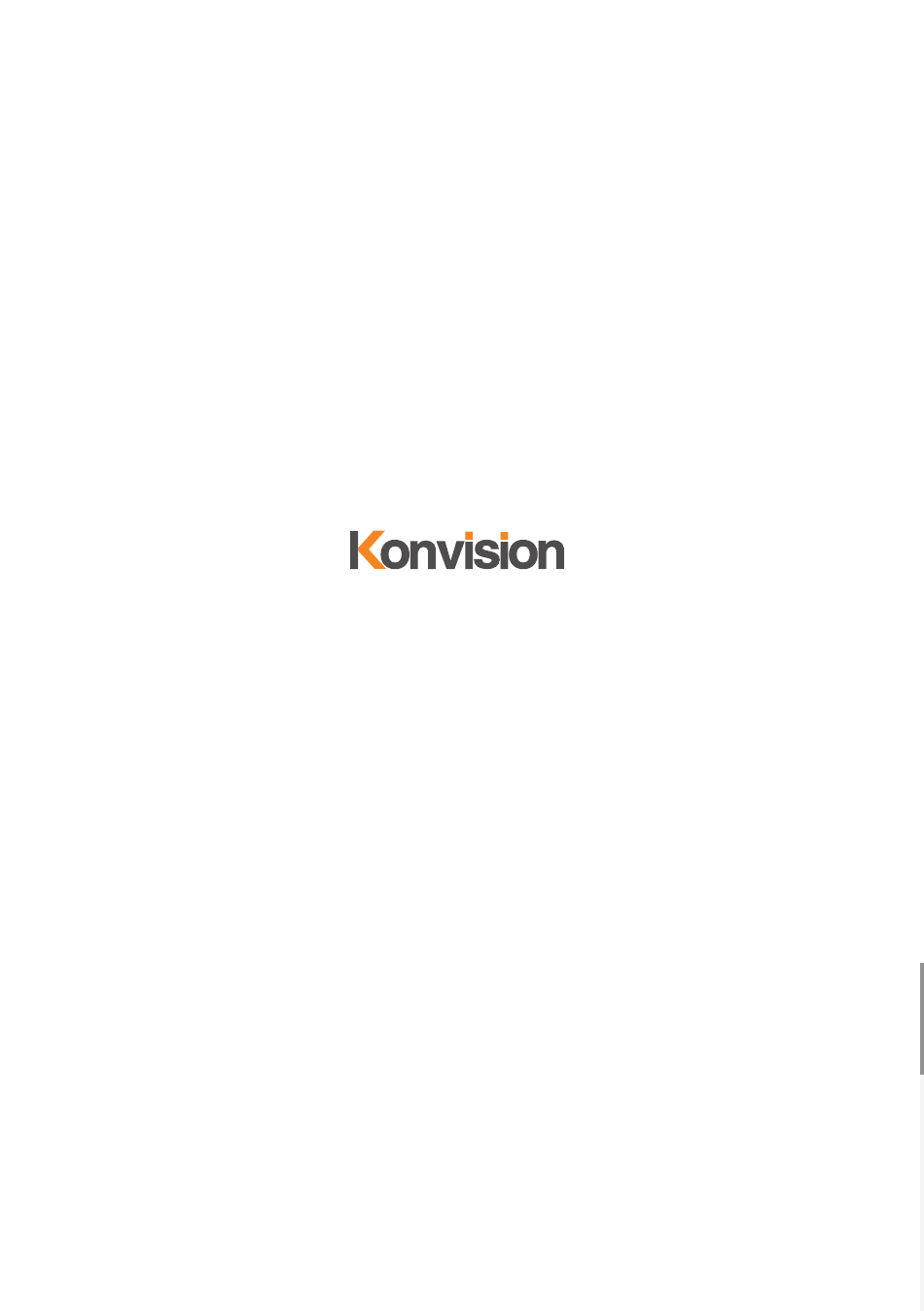

- Page 1 www.konvision.com...
- Page 2 V1.1.0 USER MANUAL Konvision Monitor KVM On-Camera / Field series w w w k o n v i s i o n c o m...
-
Page 3: Table Of Contents
Catalogue Notes..........3 Notes .......... 3 Security .......... 3 Screen Maintenance ....3 Cabinet Maintenance ....3 Installation ........4 Rack mount Installation ....4 Transportation ......4 The following does not belong to failures: ........4 Parts and Functions ...... 5 Rear View (KVM-0861W) ... -
Page 4: Notes
14. If do not use the device for a long time, Notes please unplug the power cord from the AC outlet. 15. Please keep not less than 5cm space around the vents while using the monitor, Notes in order to obtain a good heat dissipation effect. -
Page 5: Installation
This monitor is precise equipment and needs professional packing materials to transport. Please do not use packing materials provided by suppliers except KONVISION or its authorized packing material suppliers. When the following situations occur, please turn off the power, do not insert the plug and contact a professional service staff to deal with it in a timely manner. -
Page 6: Parts And Functions
Parts and Functions Rear View (KVM-0861W) DC IN F1 Button DC power input interface, power input range 8.4~16.8V. F1 button can be used as a shortcut button. Press the F1 button to select the corresponding function. Power Button and Indicator When the DC power input or external DV battery is F2 Button supplied with electricity, the indicator light is red. - Page 7 F4 Button F4 button can be used as a shortcut button. Connect the monitor USB interface with Computer USB Press the F4 button to select the corresponding interface to upgrade the DSP program. (Please contact function. the dealer for detailed upgrade operation) Rotary Dial AUDIO OUT When in OSD main menu, rotate and press the dial to...
-
Page 8: Front View (Kvm-0960W)
Front View (KVM-0960W) Tally F3 Button RS422 port: controlled by TSL3.1 or TSL4.0 protocol. F3 button can be used as a shortcut button. Press the F3 button to select the corresponding function. Power Button and Indicator F4 Button When the DC power input or external DV battery is F4 button can be used as a shortcut button. -
Page 9: Rear View (Kvm-0960W)
Rear View (KVM-0960W) DC IN HDMI IN DC power input interface, power input range 8.4~16.8V. For HDMI signal input. HDMI OUT Tally For HDMI signal output. RS422 port: controlled by TSL3.1 or TSL4.0 protocol. When the screen displays an HDMI signal, loop out RS422 HDMI signal. -
Page 10: Osd Menu
Sub Menu Description Connect the monitor USB interface with Computer USB interface to upgrade the DSP program. (Please contact Charging Mode Display the charging mode . Note: Only workable for 7.4V the dealer for detailed upgrade operation) battery charging. AUDIO OUT MCU Firmware System screen saver status 3.5mm earphone output. -
Page 11: Function Key
Scope: Menu item Description & Setting PIP Position Select different layout in PIP mode. · Left Top · Right Top · Right Bottom · Left Bottom · Center Note: Only in PBP mode. Function Key: Menu item Description & Setting Exit Exit menu items. -
Page 12: Image
Image: Menu item Description & Setting EOTF Users can choose different Gamma, HLG, Slog or turn it off (this function only available to KVM-6X series) · OFF · Gamma 2.0 · Gamma 2.2 · Gamma 2.4 · Gamma 2.6 · Rec.2100 HLG 1.0 ·... -
Page 13: Audio
Audio: Menu item Description & Setting Audio Display When in SDI Signal: Channels 1-2 channels: 1-2 channels are displayed horizontally or vertically on the left side of the screen. 1-4 channels: 1-4 channels are displayed horizontally or vertically on the left side of the screen. 1-8 channels: 1-8 channels are displayed horizontally or vertically on the left side of the screen. -
Page 14: Umd
UMD: Menu item Description & Setting Marker Enable [ON]All markers on.[OFF]All markers off. · ON · OFF [OFF]NO marker displays. Market Select [4:3]Marker display 4:3.[16:9]Marker display 16:9.[15:9]Marker display 15:9.[14:9]Marker display 14:9. [13:9]Marker display 13:9.[1.85:1] Marker display 1.85:1.[2.35:1] Marker display 2.35:1. ·... -
Page 15: System
Menu item Description & Setting Menu item Description & Setting UMD Main Window It can be set any character in Exit Exit menu items. Char “xxxxxxxx”. Setup process: Select OSD Language Select Chinese/English in menu. the UMD Main Window item, press ·... -
Page 16: Function Key
Factory Reset Menu item Description & Setting Key Lock [OFF]Key Lock Off.[ON]When the key lock is turn on, only MENU, dial/knob can be operated, the rest Factory Reset cannot. · OFF This function is to reset the monitor to factory ·...
