Konvision KVM-5 Series User Manual

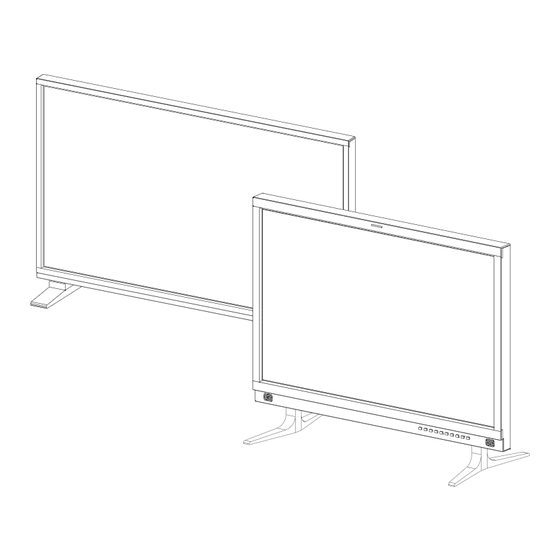

32-55 inch lcd monitors
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
www.konvision.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KVM-5 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Konvision KVM-5 Series

Summary of Contents for Konvision KVM-5 Series

  • Page 1 www.konvision.com...
  • Page 2 V2.0 USER MANUAL KVM-5X series / KVM-6X series Konvision32-55inch LCD Monitors Monitor w w w k o n v i s i o n c o m...
  • Page 3 Catalogue Histogram ........5 Notes..........2 Vector scope ....... 5 Notes .......... 2 Over exposure ......5 Security .......... 2 Pixel Measurement ..... 5 Screen Maintenance ....2 Timecode ........5 Cabinet Maintenance ....2 Remote Control Function ... 5 Installation ........

  • Page 4: Screen Maintenance

    14. If do not use the device for a long time, Notes please unplug the power cord from the AC outlet. 15. Please keep not less than 5cm space around the vents while using the monitor, Notes in order to obtain a good heat dissipation effect.

  • Page 5: Installation

    Please do not use packing materials provided by suppliers except KONVISION or its authorized packing material suppliers. High Brightness Tally Indicator When the following situations occur, please...

  • Page 6: Color Calibration

    10BIT Signal Processing PIP/PBP - Signal input, signal processing and image - Two SDI inputs signals display simultaneously output are 10bit data processing, to ensure the under PIP (picture in picture) and PBP(picture details display of the image. by picture) mode. One SDI input signal can be also displayed with another signal of VIDEO, S-VIDEO, COMPONENT, HDMI simultaneously, and showing two pictures on...
  • Page 7 Scan Mode Vector scope - Scan mode includes Full Scan, Over Scan, - Vector UV analysis for color bar signal input. Under Scan. Full scan displays the content of all areas of the input signal. Over scan displays 105% of the area of the input signal. Under Over exposure scan displays 95% of the area of the input signal.

  • Page 8: Parts And Functions

    Parts and Functions Key Description ASPECT Power Button and Indicator PIP Button When the external power supply with electricity, the Press this button to switch between Single window indicator light is red. Press this POWER button to power picture mode, Picture in Picture (PIP) mode, and on the monitor, and the indicator light turns blue.
  • Page 9 IMAGE ADJ Button DOWN Button Press this button continuously to select between: In OSD menu, press this button to move the icon Backlight, Brightness, Contrast Ratio. downwards. LEFT Button When in sub-menu, press this button to adjust leftwards the parameter of the selected item. Backlight: When the screen backlight brightness When not in OSD menu, press this button for shortcut adjustment shortcut menu display, then press LEFT or...
  • Page 10 VGA signal can be input via VGA to DVI-I Ethernet port for remote network control. Thought this convertor through DVI connector. port, along with software“Konvision Device Controller”, you can achieve remote controlling to the monitor SDI1 IN/OUT easily. (remote control software & instructions please...

  • Page 11: Menu Item Description

    Menu Item Description Sub Menu Description 1. Main Menu: MCU Firmwave CPU software version Version Main menu Menu item DSP Firmwave DSP software version Status Version Picture Image Audio GPI: Marker Scope Embedded code Layout Alarm Setup Key Lock 2. Sub Menu: Status: Sub Menu Description...
  • Page 12 Picture: Sub Menu Description Colour Temp Three modes of the fixed color . temperatures selection (5600K, 6500K, 9300K) and a custom selection. "Custom" is for user definition, to adjust the gain value and offset value of Red, Green and Blue. It will save the color temperature setting automatically.
  • Page 13 Sub Menu Description Sub Menu Description Part Zoom in Zoom in any part of the picture, to Color Space [Bypass]Color Space Choose watch picture details more clearly, Bypass. [Rec 709]Color Space and assist for focus. Choose Rec709. [EBU]Color Space Choose EBU. [DCI P3 D65]Color ·...
  • Page 14 Sub Menu Description Sub Menu Description Headphone Volume Headphone volume adjustment. Audio Display Mode [Horizontal]Audio level meter · 0-100 display.[Vertical]horizontal/vertical. · Horizontal Audio Out Mode [Normal]Right Channel MuteLeft · Vertical and right channel out normal. Remark: [Left Channel Mute]Left channel Only for SDI/HDMI/DVI signal.
  • Page 15 Scope: Sub Menu Description Marker Enable [ON]All markers on. [OFF]All markers off. · ON · OFF [OFF]NO marker displays. Marker Select [4:3]Marker display 4:3. [16:9]Marker display 16:9. [15:9]Marker display 15:9. [14:9]Marker display 14:9. [13:9]Marker display 13:9. [1.85:1]Marker display 1.85:1. [2.35:1]Marker display 2.35:1. ·...
  • Page 16 Embedded code: (Only for SDI signal) Sub Menu Description Vector Scale [100%]Vector 100% display. [75%]Vector zoom out to 75% display. · 100% · 75% Zebra Turn on/off zebra. · ON · OFF Zebra Level Zebra level can be set at any percentage between 84%-100%, it will alarm when measured luminance reach or exceed the value you set...
  • Page 17 Sub Menu Description Sub Menu Description Layout [Single]Display only a single signal PIP position [Left Top]The second window picture on screen. [PIP]Display two in the left-top corner of screen. signals pictures simultaneously on [Right Top]The second window in the right-top corner. [Center]The screen, the sub picture in the main picture.
  • Page 18 Sub Menu Description Sub Menu Description Current Source The current signal rename display UMD Display Turn on/off the UMD display. Rename characters can be arbitrarily set in · ON 8 "xxxxxxxx". The setting process: · OFF Select the option to the character UMD ID UMD ID can be set any value option, press the VOLUME (LETF...
  • Page 19 Sub Menu Description Sub Menu Description Layout [TSL3.1]Select TSL3.1. Static Frame Alarm Turn off/on the static frame alarm. [TSL4.0]Select TSL4.0. · Off [TSL5.0]Select TSL5.0. · On · TSL3.1 Audio Mute Alarm Turn off/on the audio mute alarm. · TSL4.0 · Off ·...
  • Page 20 Sub Menu Description Sub Menu Description Format Display [OFF]Turn off the display info of Key Lock [OFF]Key Lock Off. [ON]When the key lock is turn on, signal format. [ON]Turn on the only MENU and VOLUME(LETF/ display info of signal format.[Auto] RIGHT) knob,IMAGEADJ(UP/ Automatically display info of signal DOWN) knob can be operate, the...

  • Page 21: Sdi 2K Signal Display Description

    Pixel Measurements Sub Menu Description Operating Instructions The red component value of the pixel (range between 0-255). The green component value of the Only under SDI/HDMI signal, press this key to pixel (range between 0-255) perform shortcut key operation: pixel measurement The blue component value of the Pixel Measurement: When you enter the pixel pixel (range between 0-255)

  • Page 22: Remote Control

    Remote control the monitor through Ethernet: 1. Connected with monitor via LAN, and you can achieve remote controlling by software “Konvision Device Controller”.(Network remote control software and instructions please contact with the dealer) 2. The LAN cable should be parallel connection...

This manual is also suitable for:

Kvm-6 series
