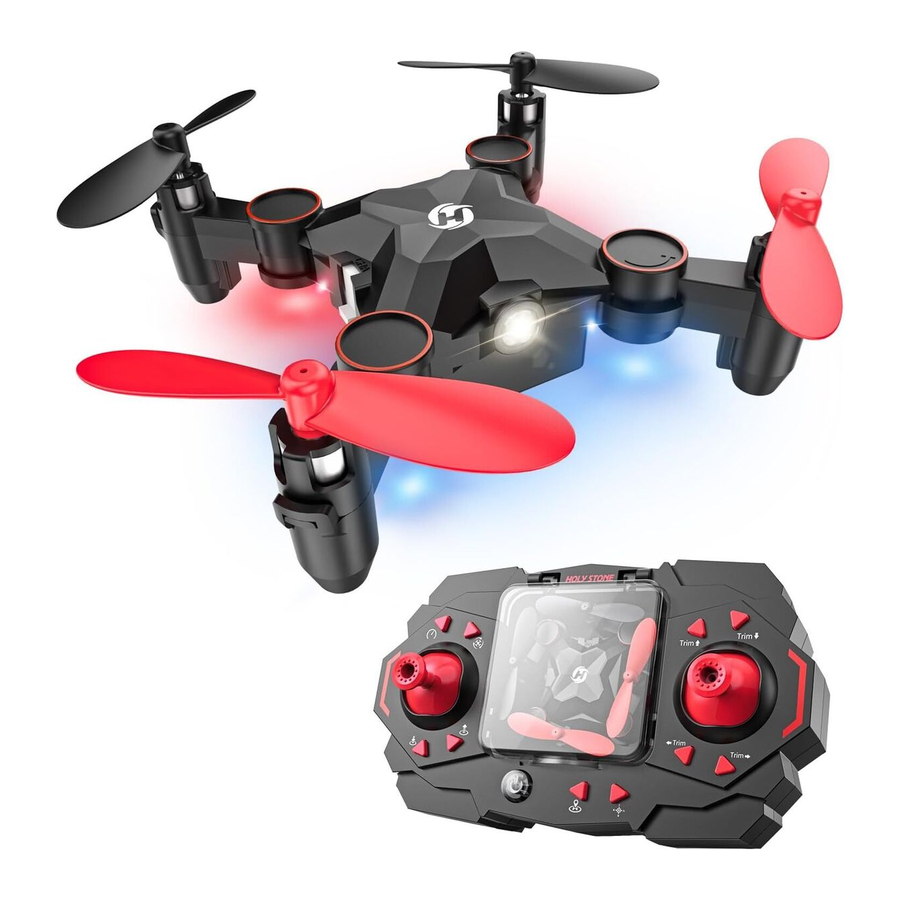

Holy Stone HS190 Manual

PREFACE

1. Please read this Disclaimer & Warning and Safety Guidelines carefully before using our product. This product is not recommended for people under the age of 14. By using this product, you hereby agree to this disclaimer and signify hat you have read it fully. You agree that you are responsible for your own conduct and any damaged caused while using this product, and its consequences You agree to use this product only for purposes that are proper and in accordance with local regulations, terms and all applicable polices and guidelines Holy Stone may make available.
2. When using this product, please be sure to strictly abide by the specification requirements and safety guidelines stated in this document. Any personal injury property damage, legal disputes and all other adverse events caused by the violation of the safety instructions or due to any other factor, WILL NOT be Holy Stone's responsibility.

MAINTENANCE

1. Clear the product after each use with a clean, soft cloth.
2. Avoid prolonged exposure to direct sunlight and avoid buildup of heat on the drone.
3. This device is not waterproof and must not be submerged in water under any circumstance. Failure to maintain the device completely dry will result In the failure of the unit.
4. Check the charging plug and other accessories for signs of damage frequently. If any part of the device is damaged, refrain from flying until maintenance can be carried out.

PACKAGE CONTENTS

SPECIFICATION

DRONE

Model: HS 190
Weight: 23.3g/0.82oz
Flight Time: 5~7 minutes
Motor Model: 615
Operating Temperature Range: 32º to 104ºF (0ºto 40ºC)
Dimensions: 62 x 62 x 24mm

Transmitter

Operating Frequency: 2.4GHz
Max transmission distance: 50m (Outdoor And Unobstructed)
Battery: 15V AAA Li-Po Battery
Operating Temperature: 32º to 104ºF ( 0ºto 40ºC )

FLIGHT BATTERY

Capacity: 220 mAh
Voltage: 3.7 V
Battery Type: LiPo
Energy: 0.814Wh
Charging Temperature Range: 41º co 104ºF (5ºto 40ºC)
Charging Time: 30~40 mins
(Depending on Charging Power)

DRONE'S DETAILS

Please note that all propellers must be installed in the correct orientation. (Pay attention to the letter "A" or "B" printed on each propeller when installing.)

ASSEMBLE THE PROPELLER GUARDS

Since the speed of this drone is very fast, we suggest the pilot install the propeller guards before flying. Please install the propeller guards according to the diagrams below.

Install the propeller guards to motor base.

TRANSMITTER FUNCTIONS

TRANSMITTER BATTERY INSTALLATION

Note: Always pay close attention to battery polarity when inserting any batteries to make sure they are fitted correctly.

CHARGING THE DRONE BATTERY

There are two ways to charge the drone battery(3.7V 220mAh).

WAY 1

1. Turn off the drone, and insert the USB charging cable into a computer USB port or a USB adapter (5V/0.5 1.0 A).
2. Connect the drone to USB charging cable, the red indicator light on the charging cable will turn on, indicating that the battery is under charging,
3. The indicator light will go off when the drone battery is fully charged.

WAY 2

1. Turn off the drone, and turn on the transmitter.
2. Connect the drone to USB charging cable which is built in the transmitter.
3. The power switch light will turn blue, indicating that the battery is in charging.
4. The light will turn red when the drone battery is fully charged.

Note:

• The charging time is around 30~40 minutes.
• Flying time is about 5~7 minutes.
• When the drone's battery is in low power, the LED indicator lights on the drone will be blinking.
• Please make sure the batteries of transmitter are full of power before charging the drone if you choose the second way to charge the drone).

1. Don't use or charge the battery if it shows signs of swelling, punctures, or damage in any way.
2. Don't charge the battery directly after use. Allow it to cool down in an open and dry area to insure overheating does not occur.
3. When battery is charged, please keep it away from furniture, carpet or anything flammable.
4. Don't charge the battery overload(below 5V/2A). Make sure the battery is removed from the charger when charging is complete. Never overcharge the battery.
5. Be cautious while removing a battery from the charger. And it's possible to strip the cords and lead to a fire( and ruin the battery)

FLIGHT

• Rotating propellers can be dangerous. Do not start the motors when there are people nearby.
• Always keep your hands on the transmitter so long as the motor is still spinning.

Before Flight

1. Please unfold the collapsible arms before flight.


Pair the Drone

2. First, slide the "Power Switch"button right to turn on the drone. Then, place the drone on flat and level surface with the head facing forward and the tail facing towards the pilot.

3. Then, turn on the Transmitter. One second later, one beep will be heard and the drone's indicator lights will start flashing and then turn solid, indicating that the drone and the transmitter have been paired successfully and automatically.


Calibrate the Gyro

4. After pairing, push the left joystick down to the bottom right and the right joystick down to the bottom left at the same time. A beep sound will be heard from the transmitter and the LED lights of the drone will blinking, then turn solid, indicating that the calibration setting is completed.

   (To ensure a stable flight, we suggest the pilot calibrate the gyro every time after pairing the drone and after a crash. And please do NOT calibrate the gyro while flying.)

Unlocking the drone

5. After pairing or calibration, pull left joystick down to the bottom left, the right joystick down to the bottom right ac the same time. The LED indicator lights on the drone will blinking and turn sold again, and the propellers will start spinning, indicating that the drone is unlocked and ready to take off.


One Key Take-off

6. Press One Key Take-off button, rhe drone will take off automatically. Or push throttle (left) joystick up slowly to take off and ascend the drone.


Flight Control

7. Left (Throttle) Joystick.z

8. Right (Direction) Joystick.

9. Left / Right Sideward Fly Trim: When the drone drifts to left, press the right trimmer button to rebalance the drone, if the drone drifts to right, press the left trimmer button to reblance the drone.

10. Forward / Backward Sideward Fly Trim: When the drone drifts forward, press the backward trimmer button to rebalance the drone; if the drone drifts backward, press the forward trimmer button to rebalance the drone.
    NOTE: When the drone loses balance, calibration and the trim buttons don't work, we suggest the pilot try to reset the drone's trimmer data.

    Pull both joysticks down co the bottom left at the same time, then the drone's lights will blink and turn solid, indicating Che drone's trimmer data is reset (This step can only be done before the drone take off).

ALTITUDE HOLD

This drone is equipped with Altitude Hold function, meaning this drone will keep in a steady altitude.

During flight, altitude hold function allows you to release the throttle joystick, and the drone will keep hovering at the current height.

SPEED SWITCH

This drone comes with 3 speed modes( Low/ Medium/ High). Press the "Speed Switch" button on transmitter to switch the speed mode. "Di" from the transmitter indicates it is in low speed mode, "DiDi" indicate medium speed, and "DiDiDi" indicate high speed. (Low speed will be default mode!)

EMERGENCY STOP

Only stop motors mid-flight in emergency situations when doing so can reduce the risk of damage or injury.

While flying, push the Left Joystick down to the bottom right and the right joystick down to the bottom left at the same time for about one second to enter EMERGENCY STOP function, and the motors will stop immediately.

FLIP MODE

When you become familiar with all the functions of the drone, you can try this amazing flip mode. Make sure you fly the drone at least 10 feet, press the direction (right) joystick to enter Flip Mode, then push the Right Joystick to the Forward/ Backward/ Left/ Right, and the drone will do a flip towards the corresponding direction.

The drone will flip best when the battery is fully charged.

ONE KEY RETURN

With a press of the One Key Return button, the drone will return along the parallel direction where the tail of the drone pointed to when the drone was paired.

You can push the right joystick forward or press the One Key Return button again to retake control of the drone and cancel the One Key Return Function.

Please avoid using this feature when the drone is near to the pilot, otherwise it may cause injury.

HEADLESS MODE

Do not use the Headless Mode until you totally comprehend the Instructions For Use. Flying in Headless Mode without sufficient experience might result in loss or damage of the device.

1. Place the drone in front of the pilot before pairing the drone to the transmitter. Make sure the head of the drone faces forward and the tail faces towards the pilot.

2. After pairing and calibration, press the Headless Mode button to enter Headless Mode function. Three beeps will be heard from the transmitter, and the drone's lights will start blink constantly.
3. Press the Headless Mode button again, (the drone's light will turn to solid) the drone will exit Headless Mode.

The direction of control when the drone is paired

Don't turn your direction

Don't turn your direction

Under Headless Mode, the forward direction is the direction the pilot faces when the pilot pairs the drone with the transmitter. If the pilot pushes the direction joystick forward, the drone will fly forward If the pilot pushes the direction joystick backward, the drone will fly towards him/her. If the pilot moves the direction joystick left or right, the drone will also move left or right relative to him/her. It is very important that the pilot does not change positions or the direction he or she faces; otherwise the drone will get confused.

Please use Headless Mode and One Key Return function after you totally comprehend these functions; otherwise, it may cause some loss and damage.

Trouble Shooting

Support

For more further technical support, please do not hesitate to contact us via Email or Hot Line Phone Call
+1 (855) 888-6699

E-mail:
usa@holystone.com (America)
ca@holystone.com (Canada)
eu@holystone.com (Europe)

www.holystone.com

SAFETY GUIDELINES

Check Before Use

1. This product is not a toy, but it is a high precision drone that integrates various electronic stability and control mechanisms. Please be sure to setup this drone carefully and correctly to ensure safe, accident-free operation.
2. Please be sure that the batteries of the drone and transmitter are clean, undamaged and, fully charged.
3. Please be sure that all the propellers are undamaged and are installed in the correct orientation.
4. Please do a thorough check of the product before each use. Check for firmness of the parts, any signs of cracks and wear of the propeller, battery power and effectiveness of the indicator, etc. If after doing a complete check any issues are found, please refrain from using the product until the issue has been resolved.

Flight Environment

Avoid flying over or near obstacles, crowds, high voltage power lines, trees, airport or bodies of water. DO NOT fly near strong electromagnetic sources such as power lines and base stations as it may affect the onboard compass.

DO NOT use the drone in adverse weather conditions such as rain, snow, fog and strong wind.

Operations Requirements

1. Please don't use this product to follow any moving vehicles.
2. During the flight, only turn off the motor in case of an emergency.
3. Please flight the drone back to you as soon as possible when the battery is running low.
4. This product should not be used while drinking alcohol, if you are feeling fatigued, taking medicine, or feeling any physical discomfort.
5. Beware of the noise volume the drone produces. Keep your distance to avoid ear damage.
   Stay away from the rotating propellers and motors.

   No Fly Zone


Use of Battery

1. Please ensure batteries are fitted in the correct orientation as shown in the instruction manual.
2. Avoid short circuits by fitting the batteries incorrectly, and do not crush or squeeze the batteries as this could carry the risk of an explosion.
3. Do not mix new and old batteries as this can lead to a poor performance of the product.
4. Dispose used batteries carefully, do not litter.
5. Please keep dead batteries away from heat and fire.
6. If the device is not going to be used for an extended period of time, remove batteries to prevent potential damage from battery leakage.
7. If the device is not going to be used for an extended period of time, remove batteries to prevent potential damage from battery leakage.
8. It is recommended to only use the USB charging cable that comes with the drone to charge the battery.
9. Don't connect the battery directly to wall outlets or car cigarette-lighter sockets.
10. Don't attempt to disassemble or modify the battery in any way.
11. Don't use the battery if it gives off an odor, generates hear, becomes discolored or deformed, or appears abnormal in any way If the battery is in use or being charged, remove it from the device or charger immediately and discontinue use.
12. Don't pierce the battery casing with a nail or other sharp object, break it open with a hammer, or step on it!
13. Always charge the batteries In a fire-proof container and away from combustible materials. Don't charge on surfaces that can catch fire. This includes: wood, cloth, carpet, or in the application's device.
14. Don't immerse the battery in water or allow it to get wet.
15. Don't solder battery terminal directly.
16. Keep battery out of reach of children or pets.
17. Don't short-circuit the battery by connecting wires or other metal object to the positive(+) and negative(-) terminals.

www.holystone.com
